Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2006 >> F 150 2WD Pickup V6-4.2L VIN 2 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> Differential - Ford 9.75-Inch >> Torque Specifications

Torque Specifications

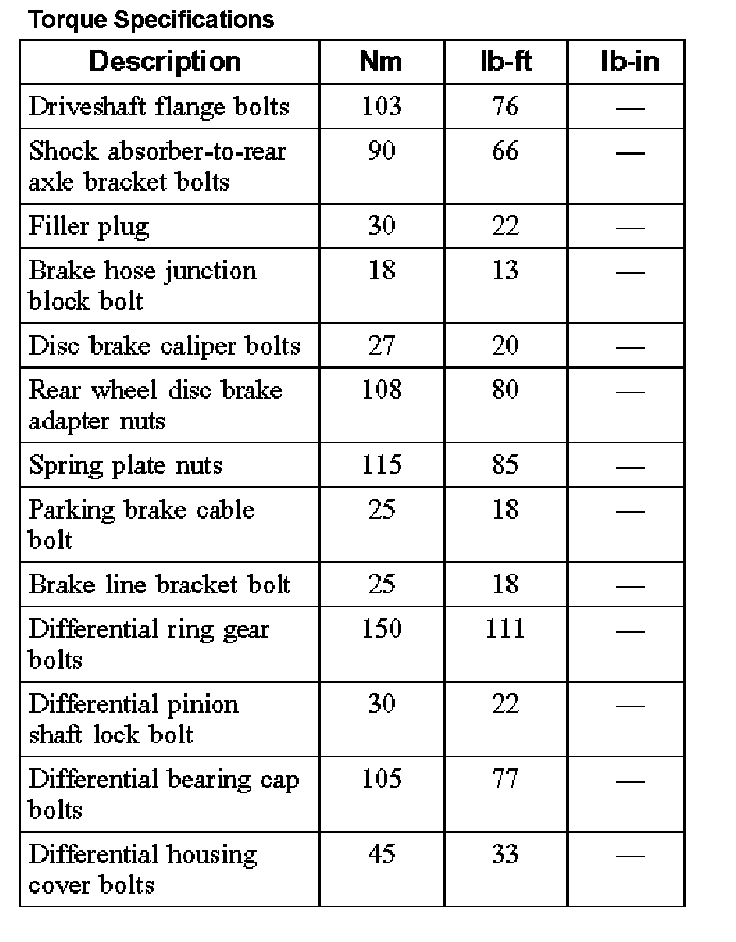

Torque Specifications (Part 1):

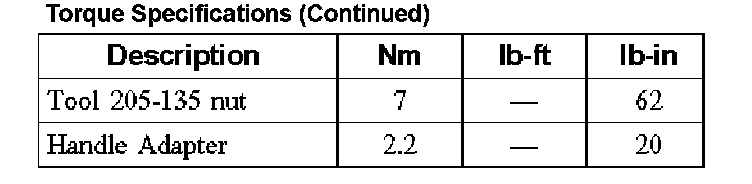

Torque Specifications (Part 2):
