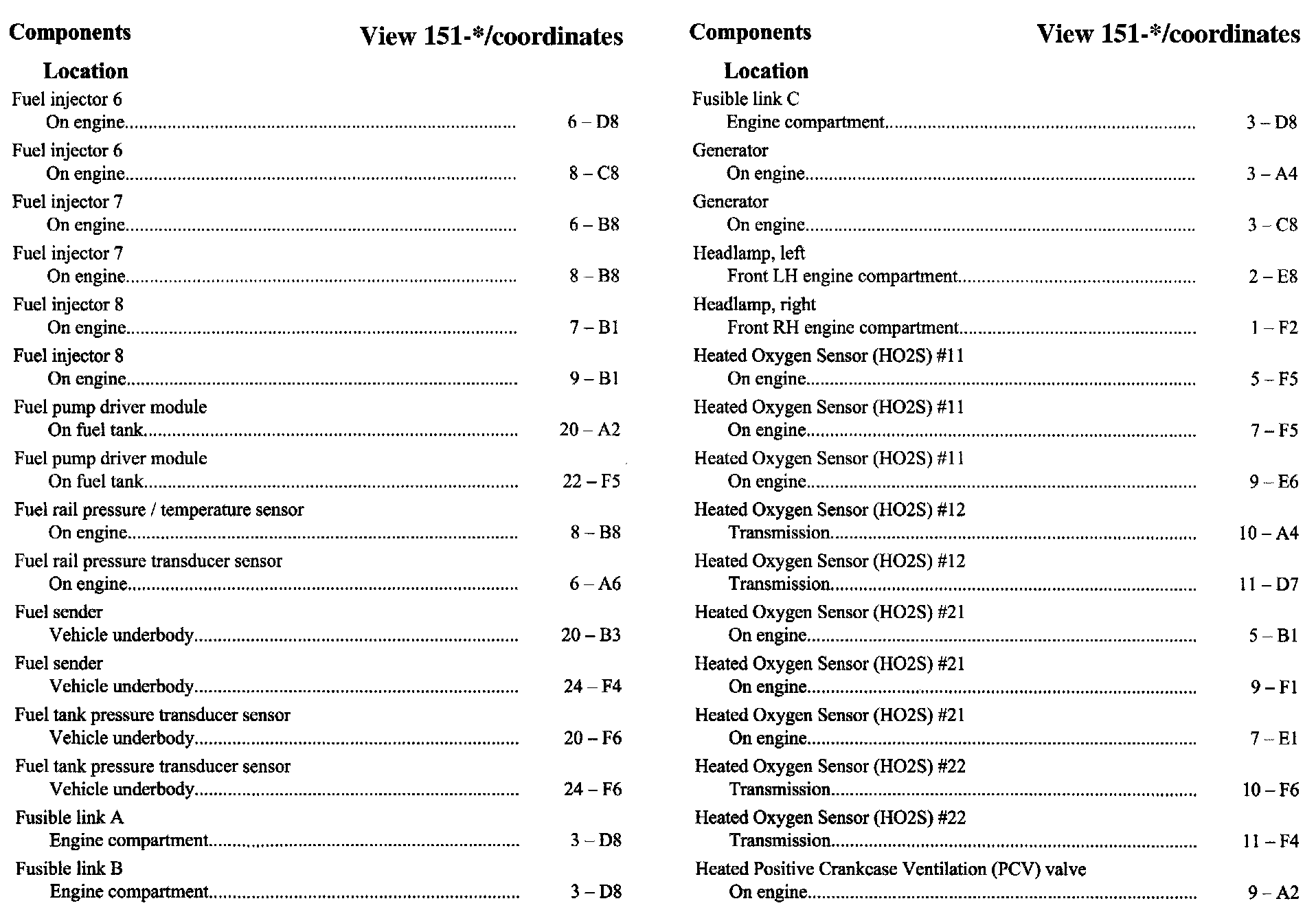

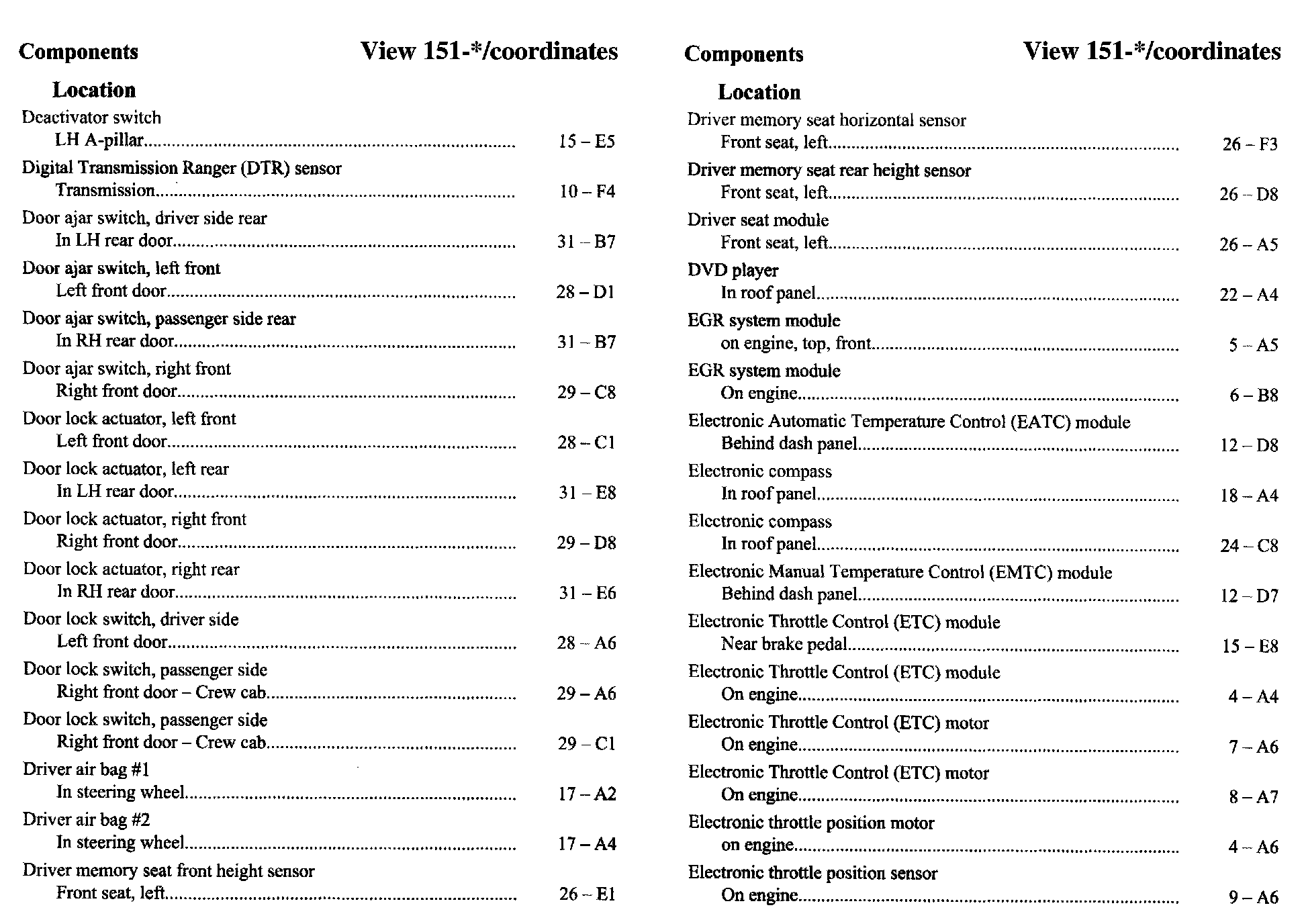

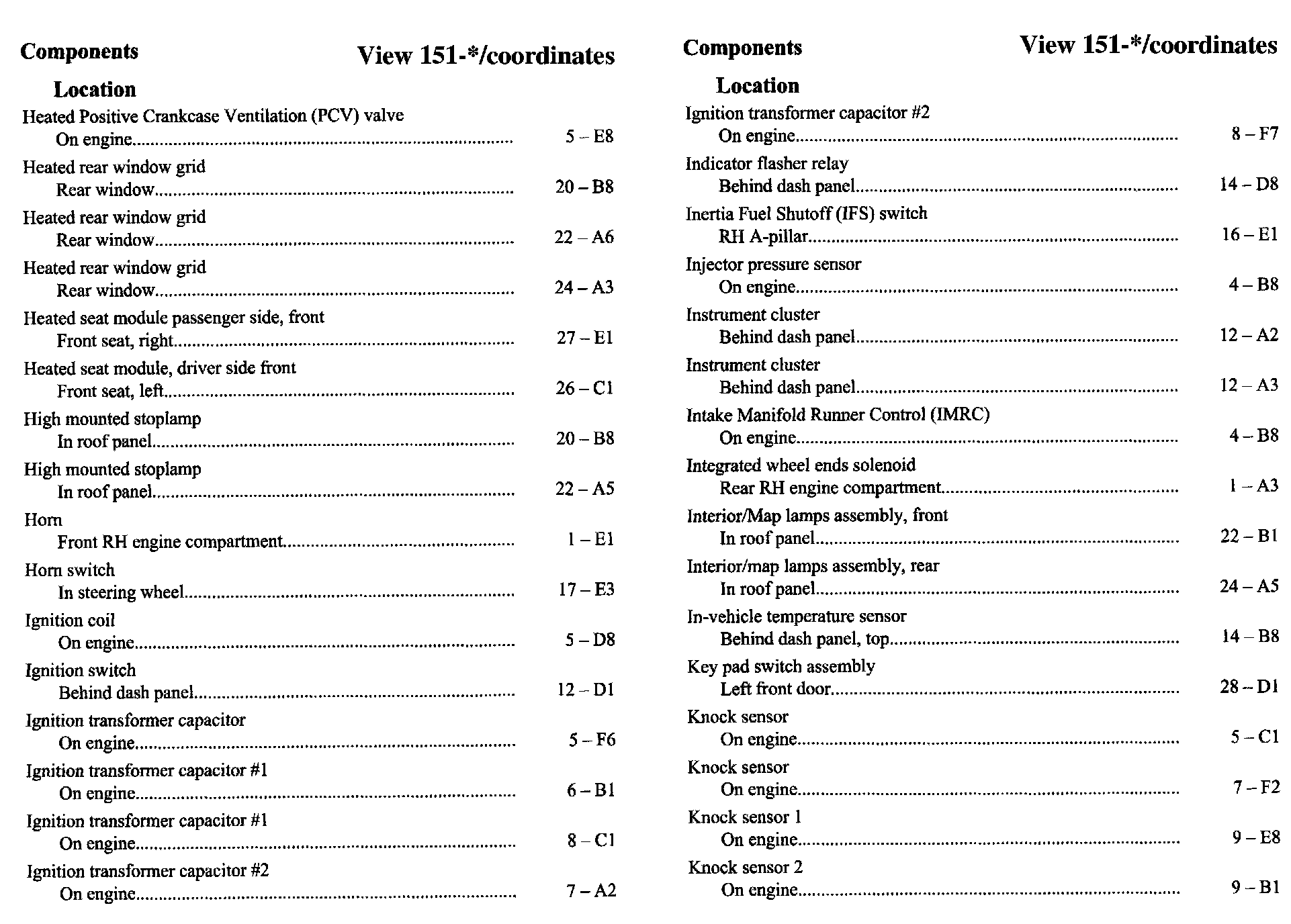

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

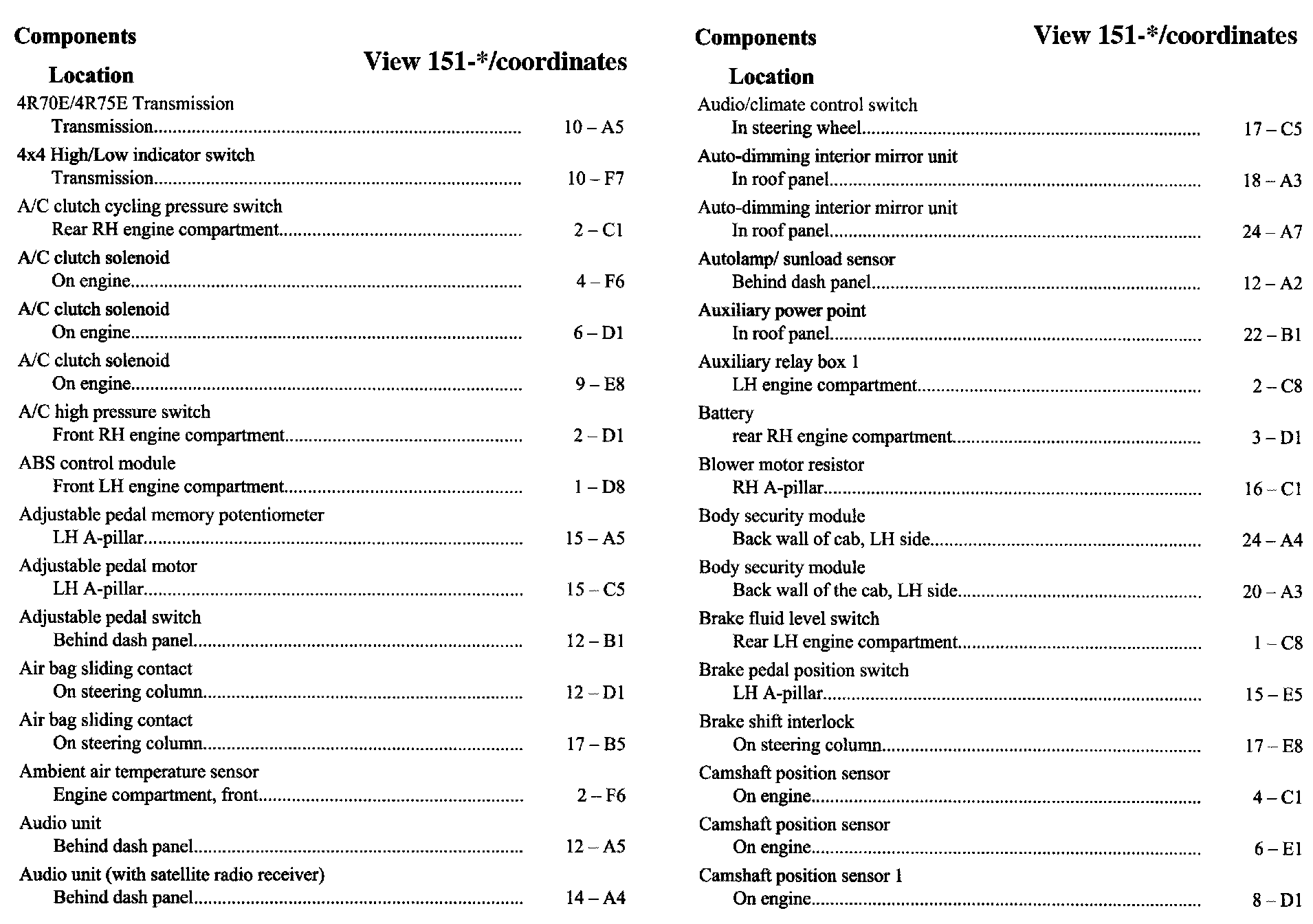

4R-Ca:

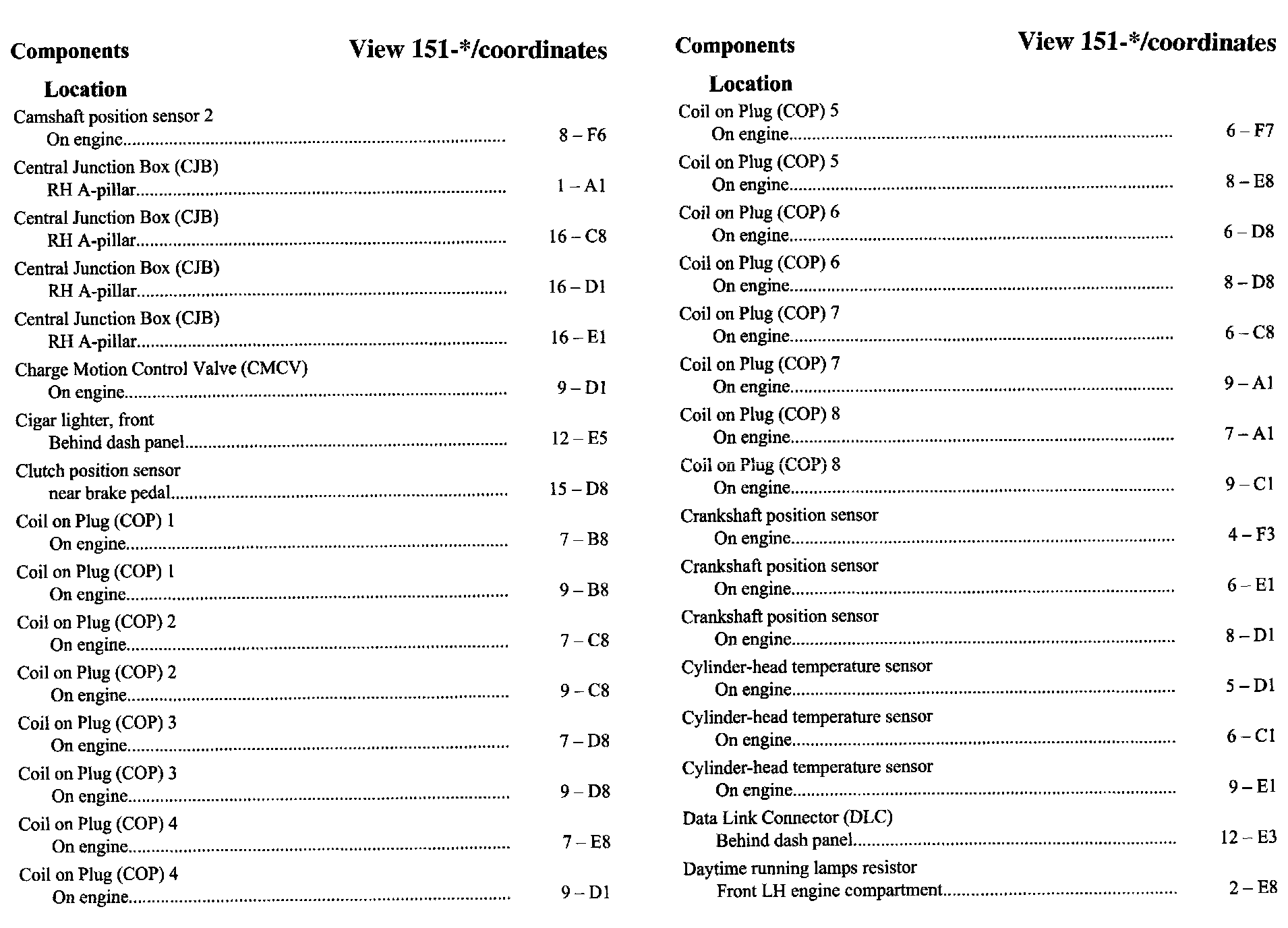

Ca-Da:

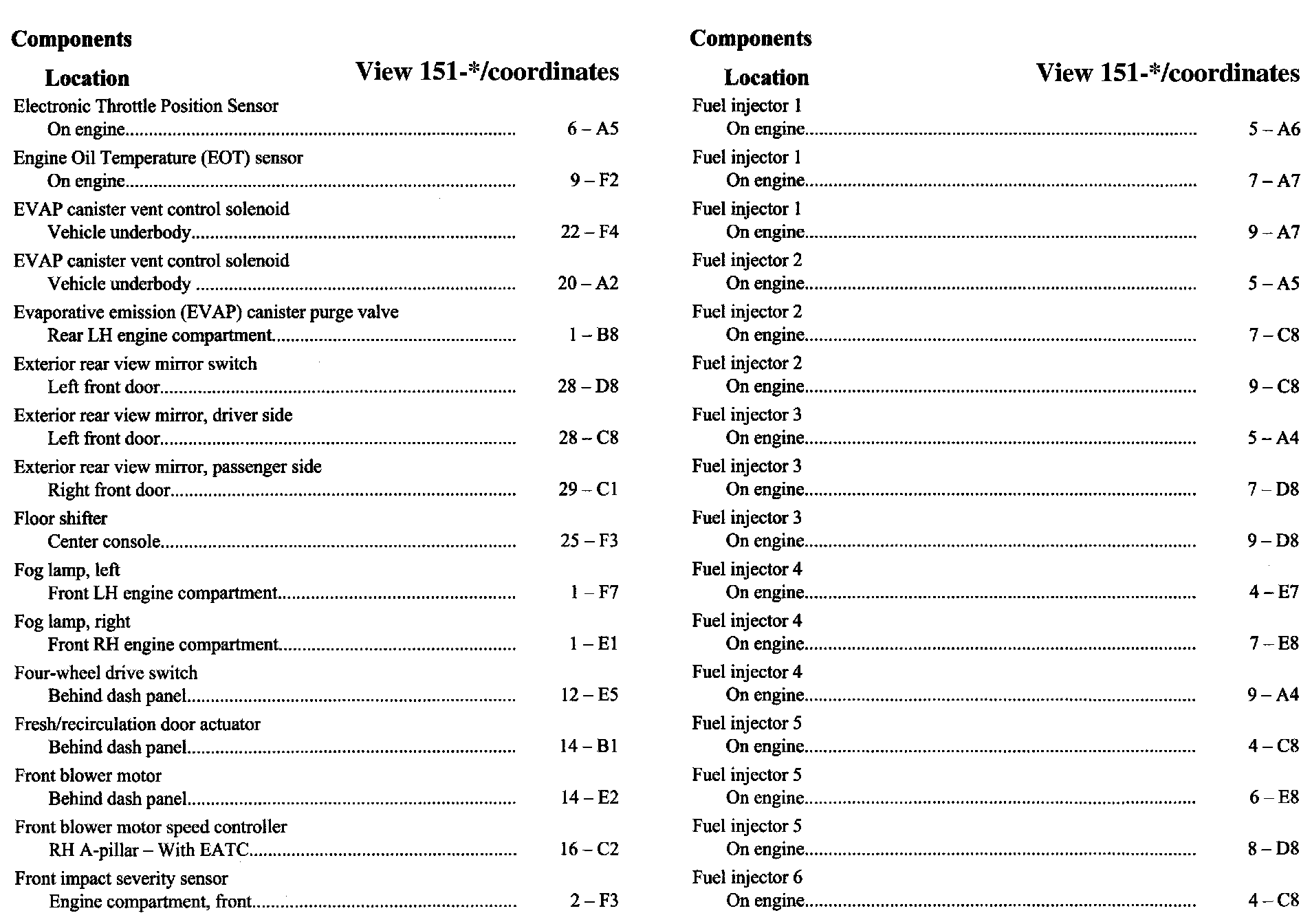

De-El:
El-Fu:
Fu-He:

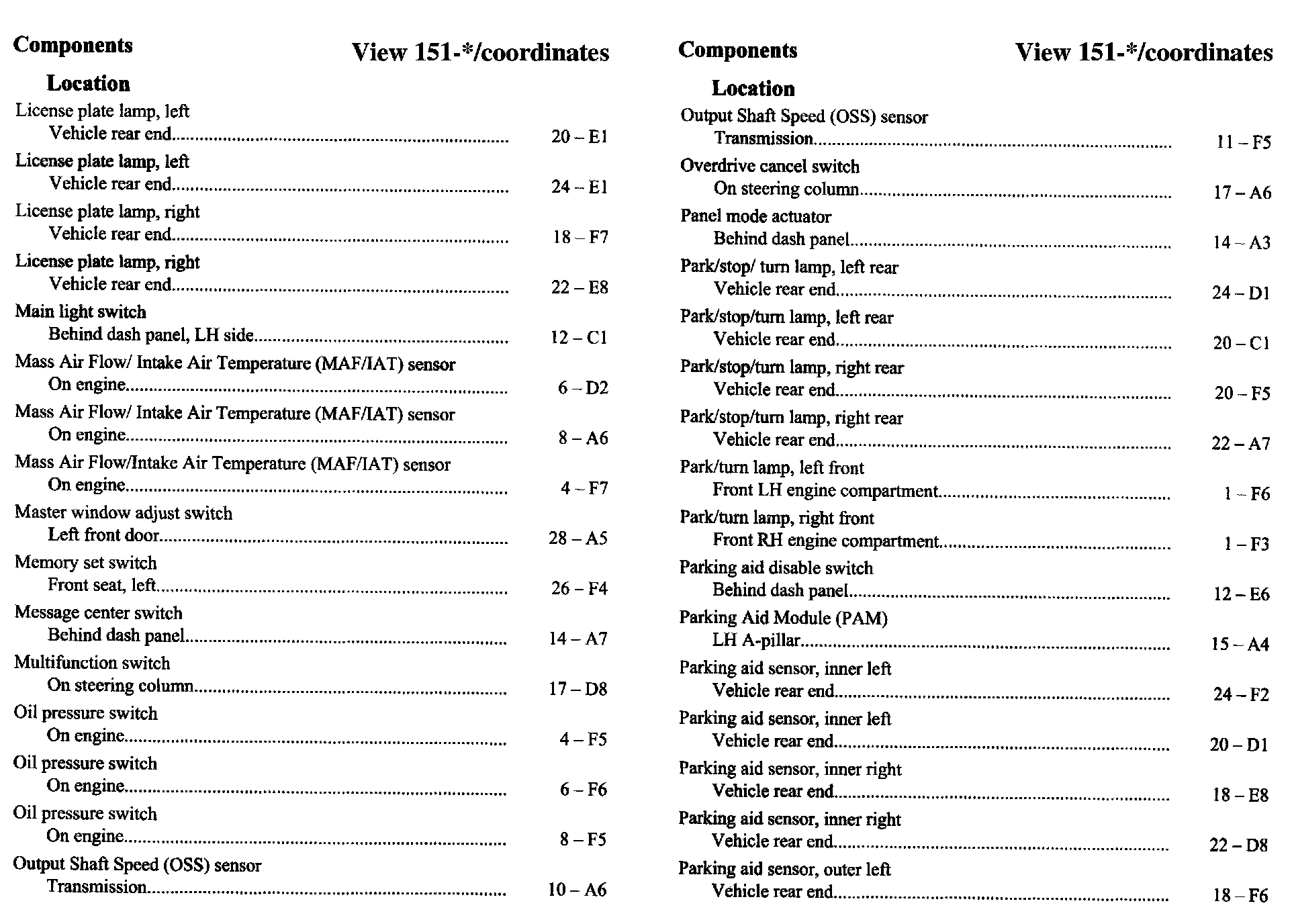

He-Kn:

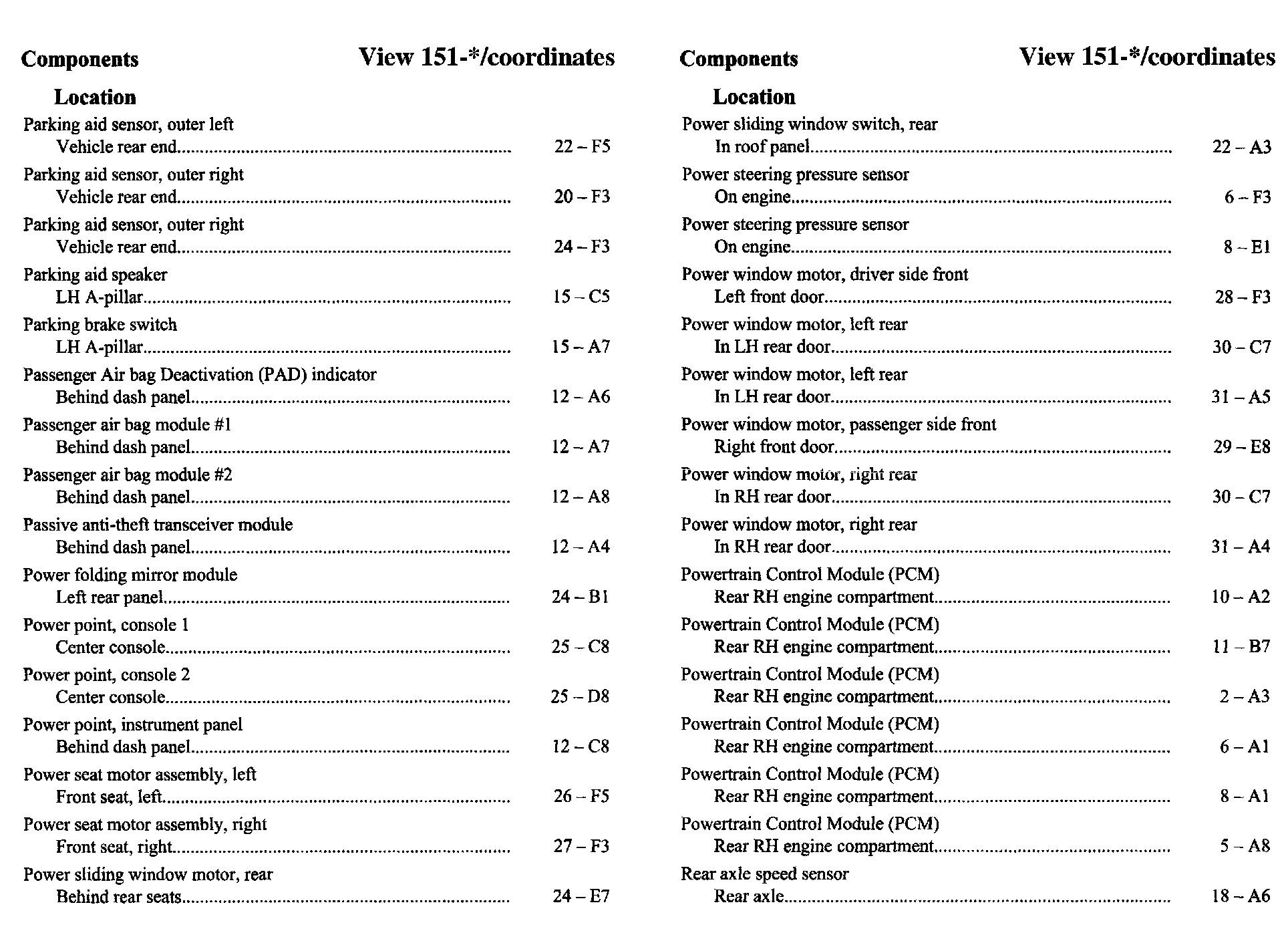

Li-Pa:

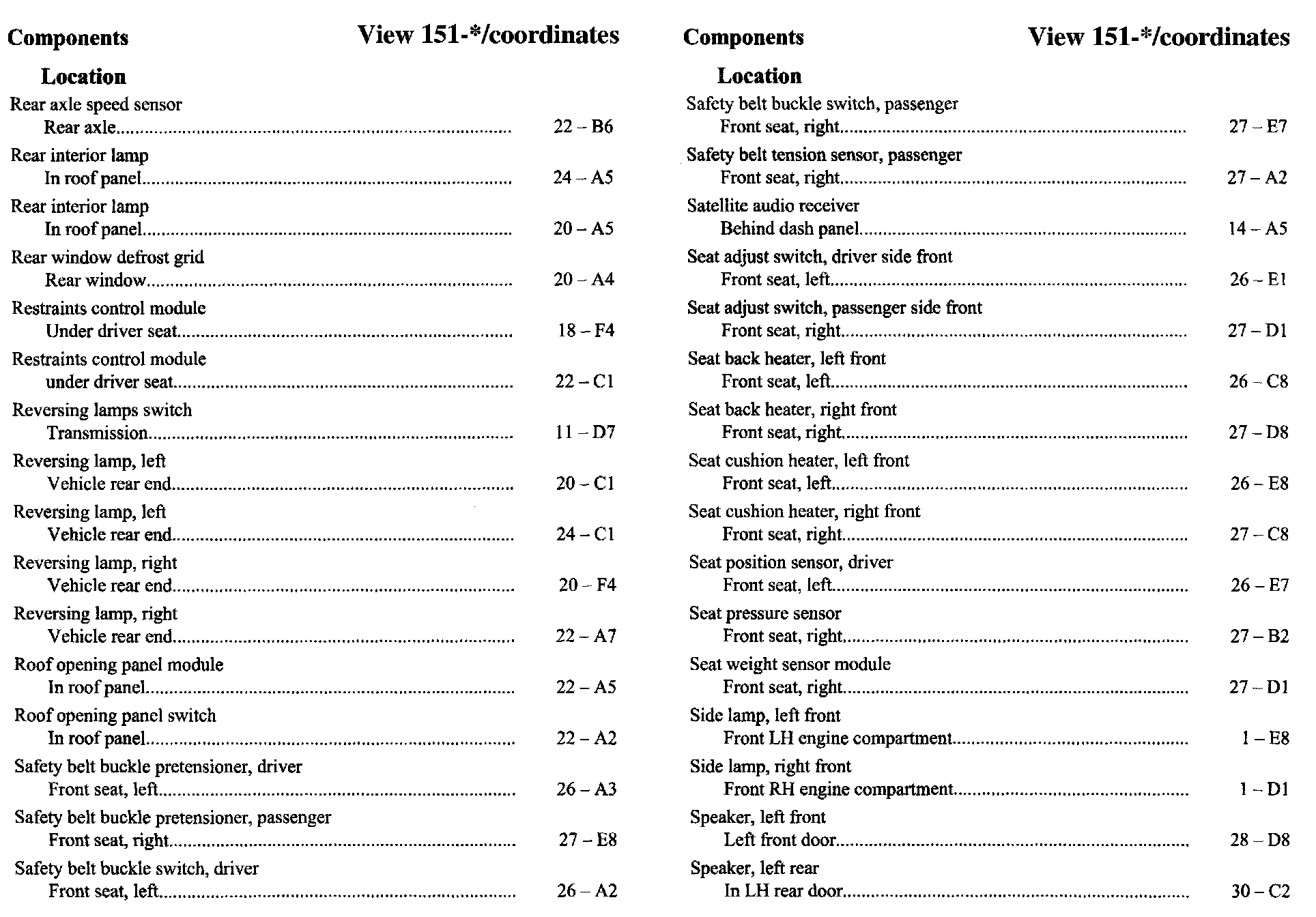

Pa-Re:

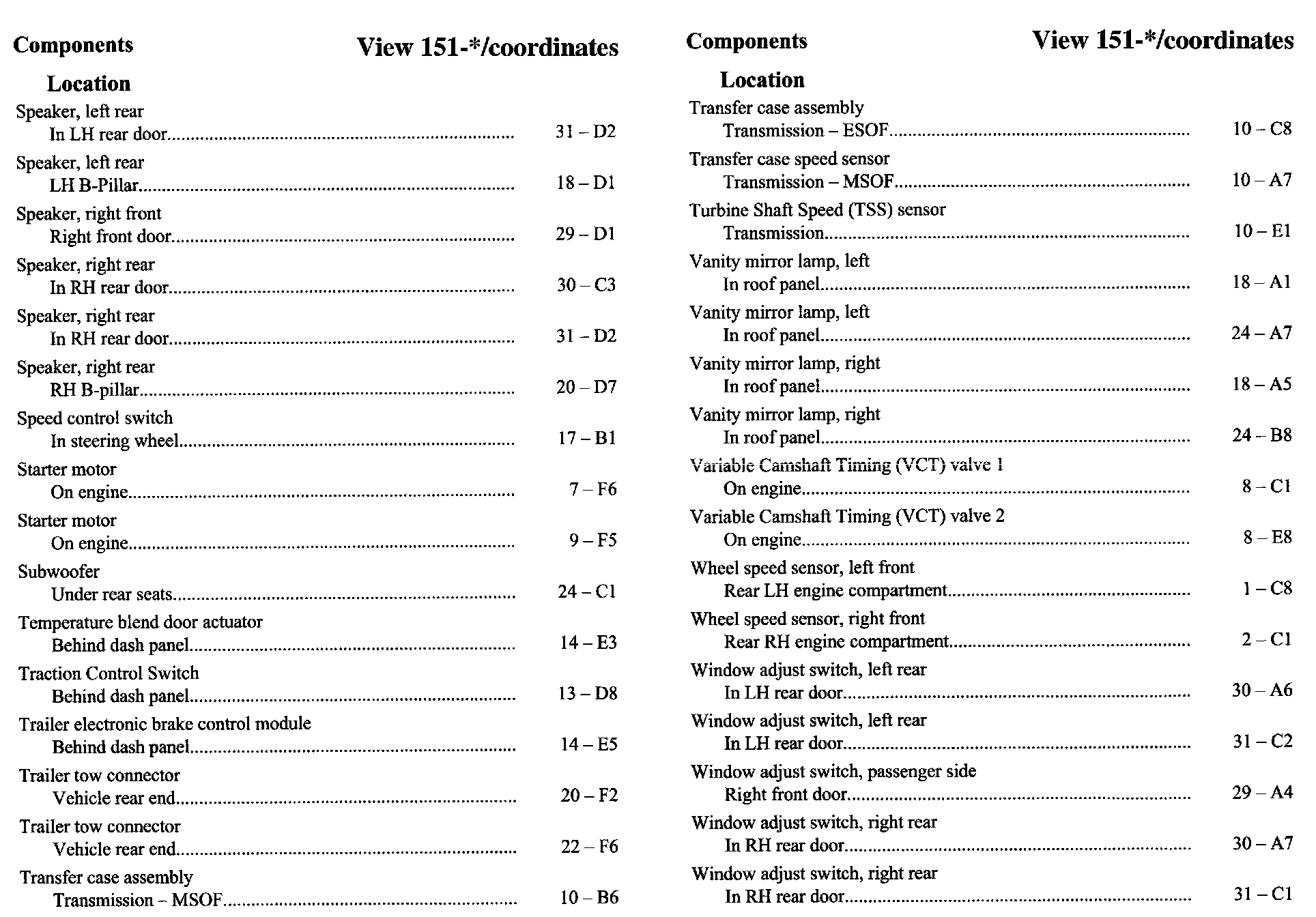

Re-Sp:
Sp-Wi:

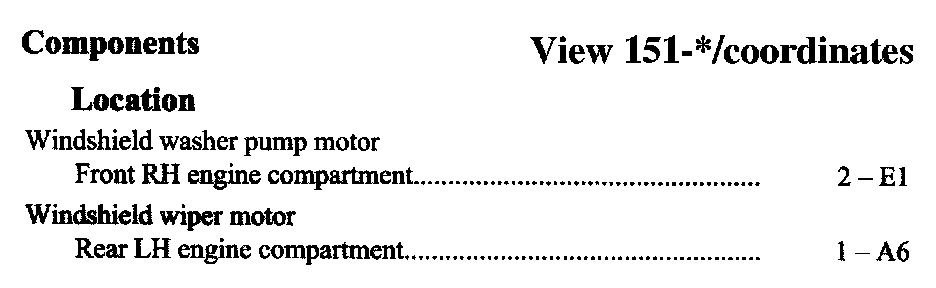

Wi-Wi:
