System Diagram

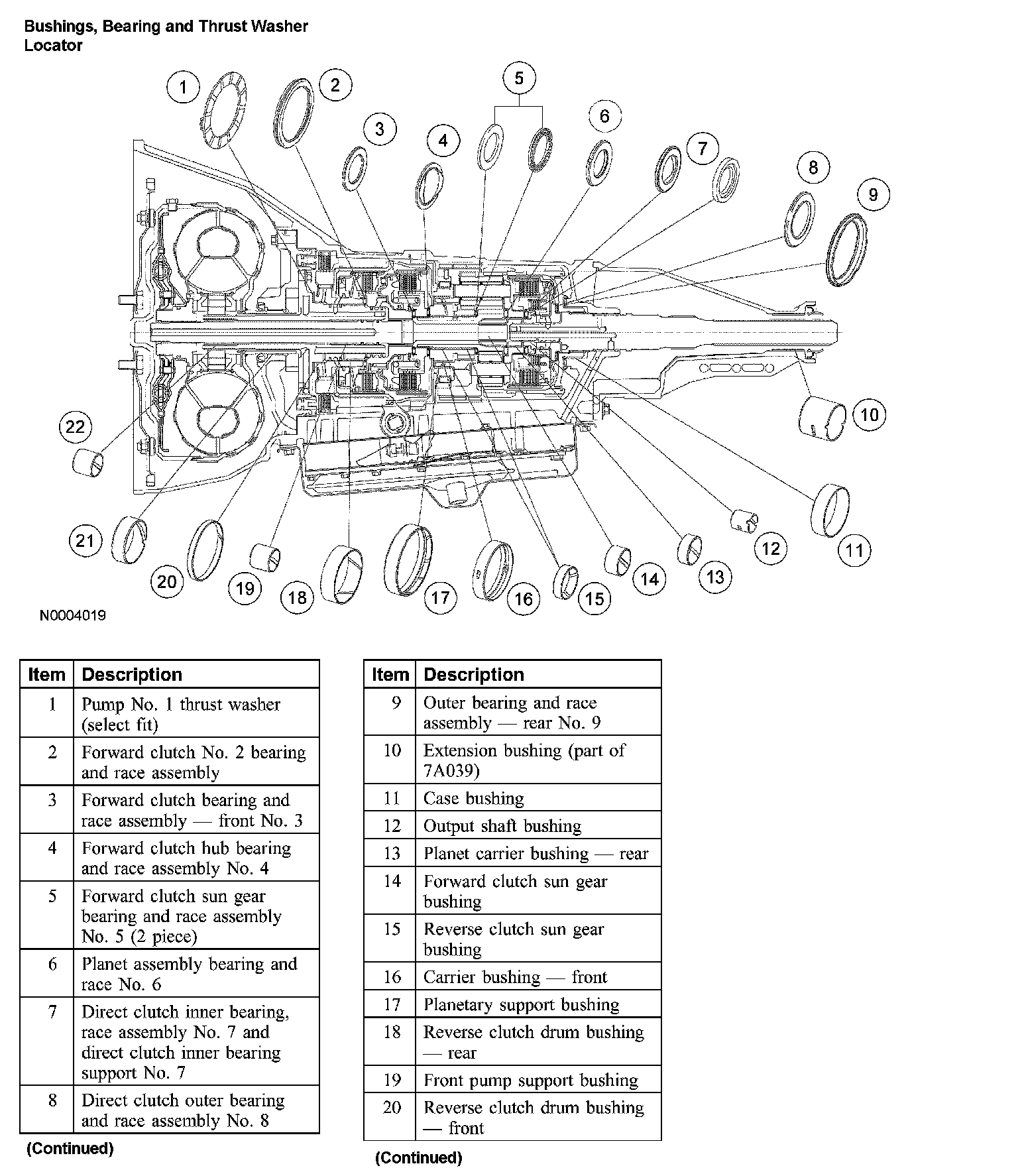

Bushings, Bearing and Thrust Washer Locator (Part 1):

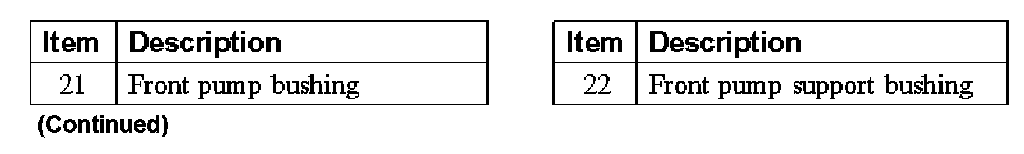

Bushings, Bearing and Thrust Washer Locator (Part 2):

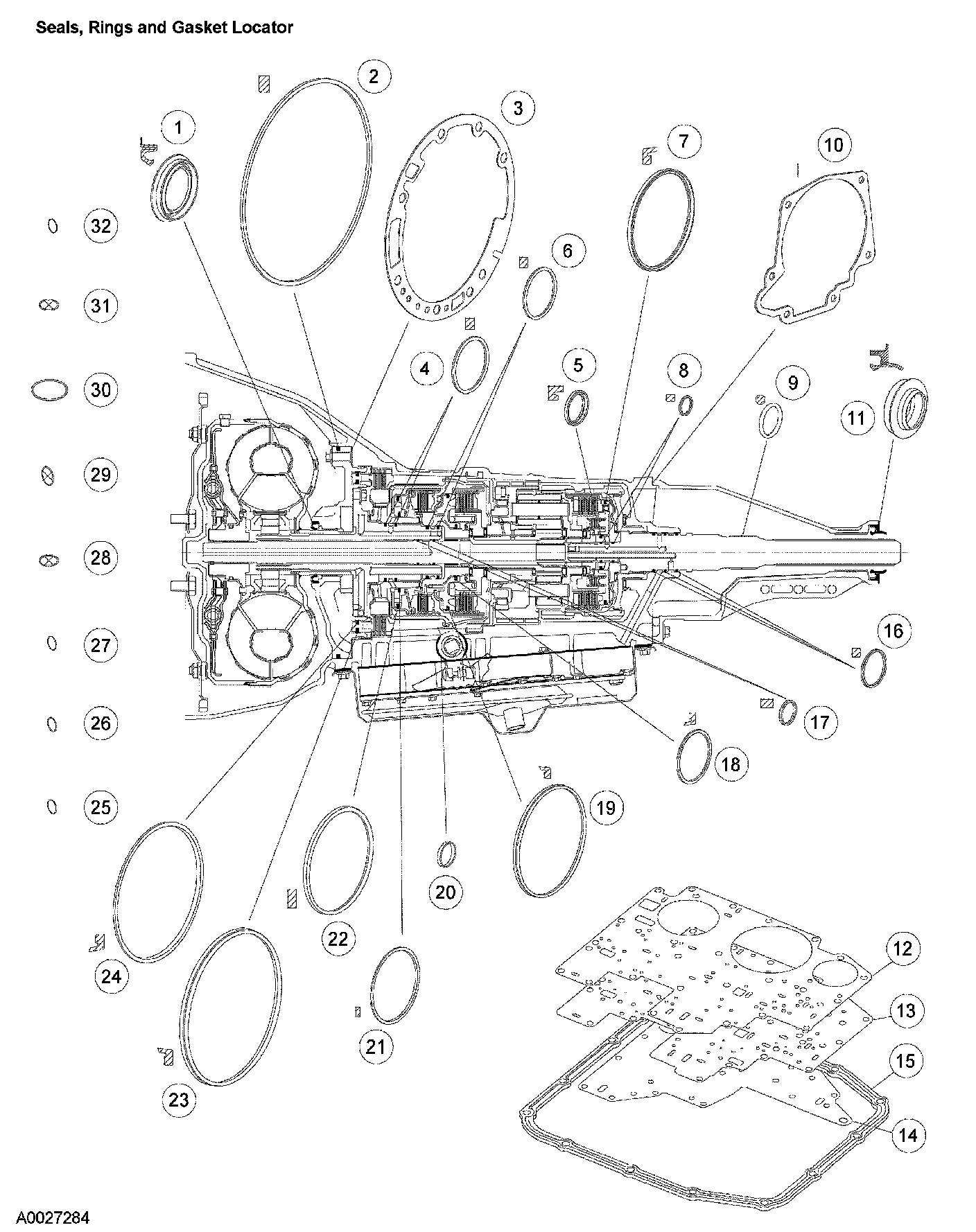

Seals, Rings and Gasket Locator (Part 1):

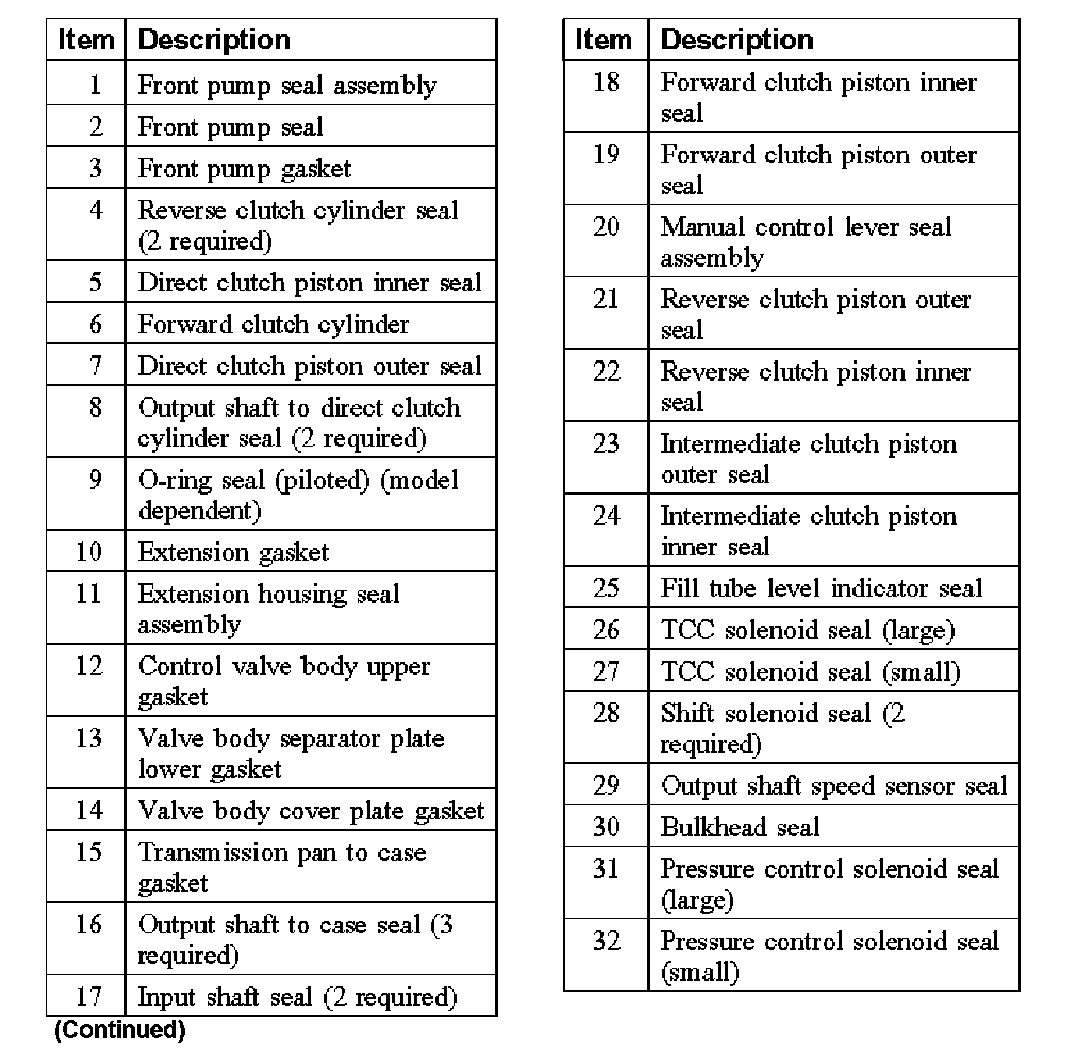

Seals, Rings and Gasket Locator (Part 2):

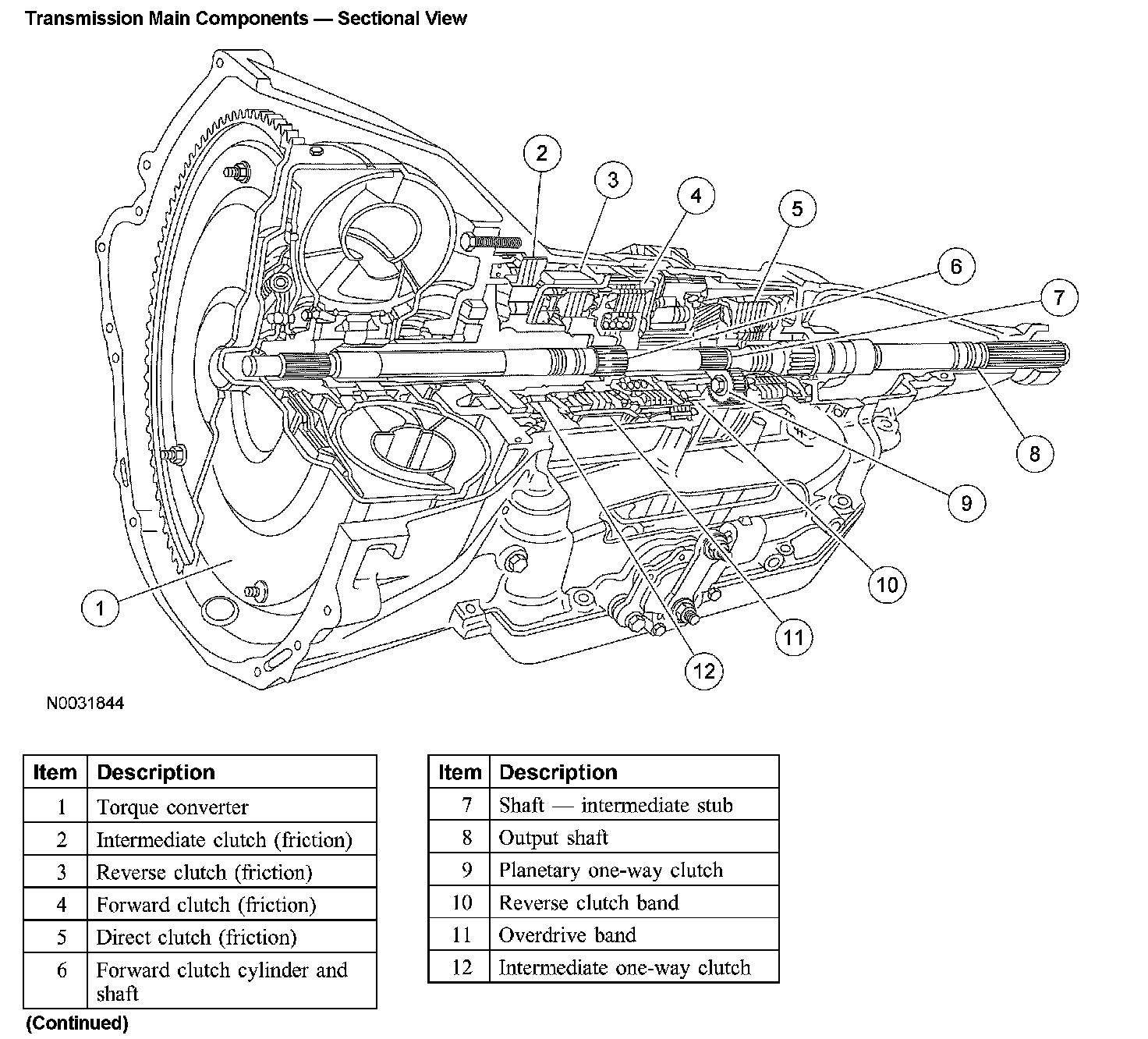

Transmission Main Components - Sectional View:

Main Control Valve Body Disassembled View (Part 1):

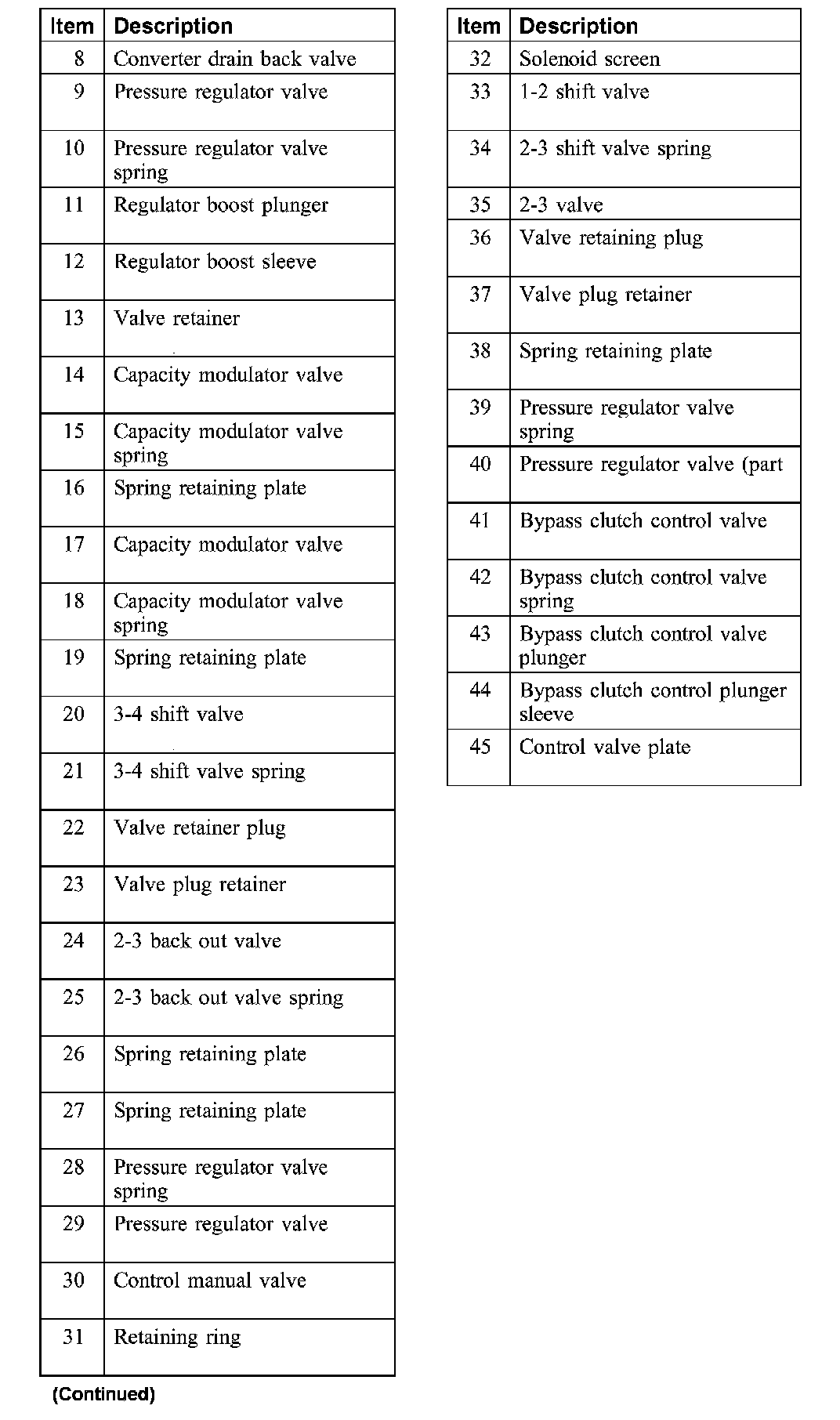

Main Control Valve Body Disassembled View (Part 2):

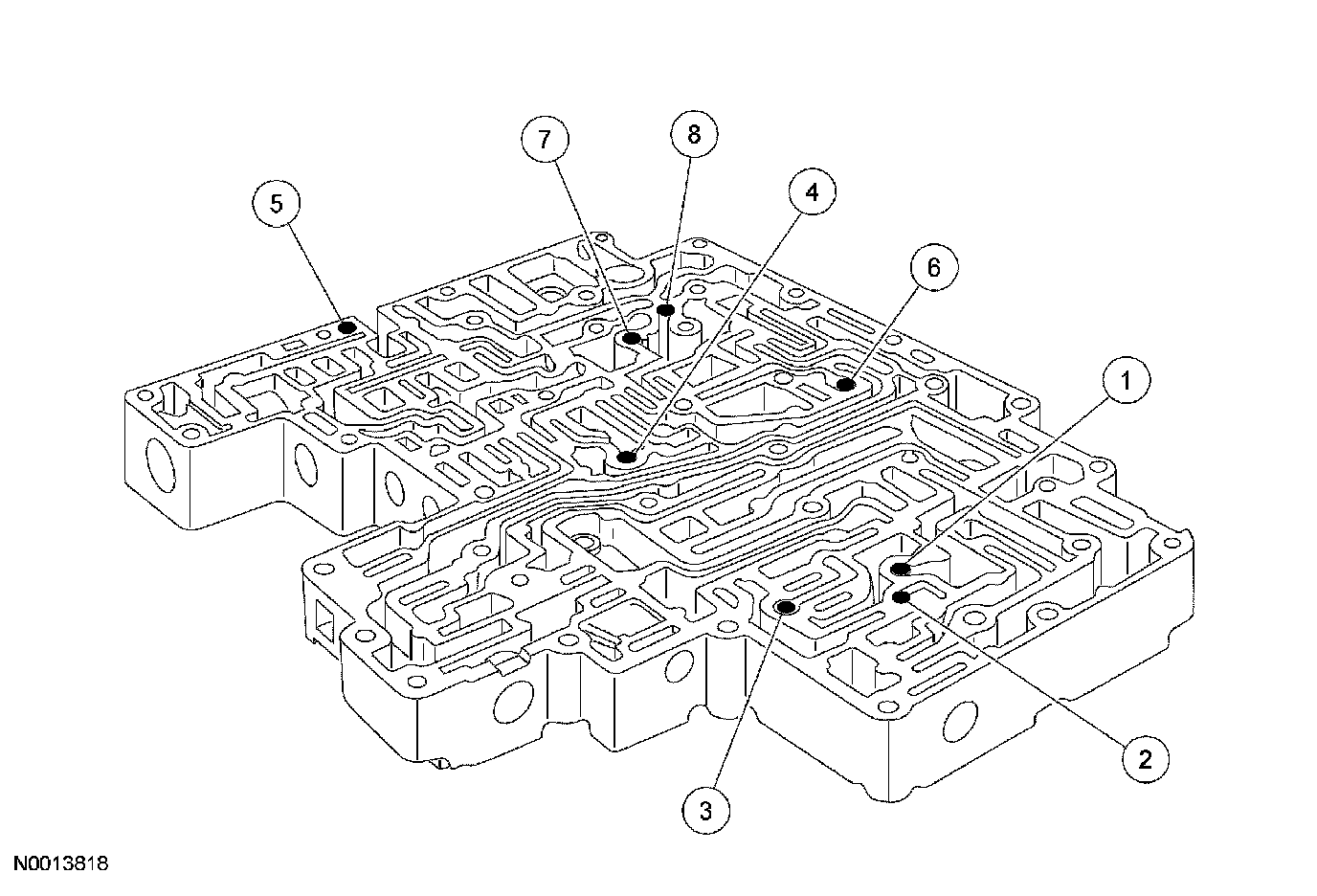

Check Ball Locations:
