Home >> Ford >> 2006 >> F 150 2WD Pickup V8-4.6L VIN W >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Connector Views

Connector Views

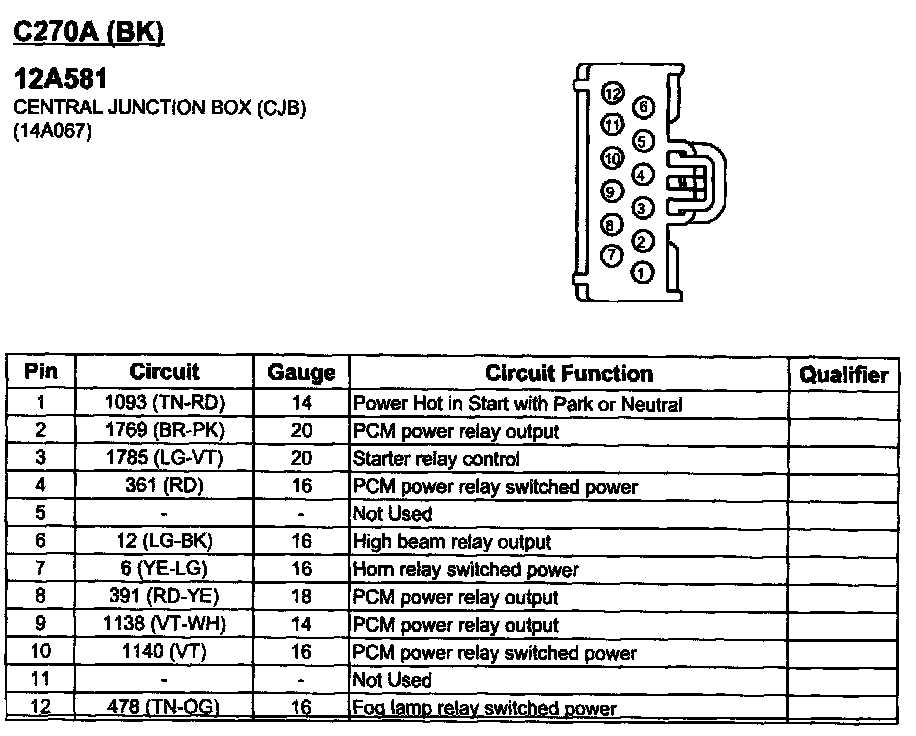

C270A:

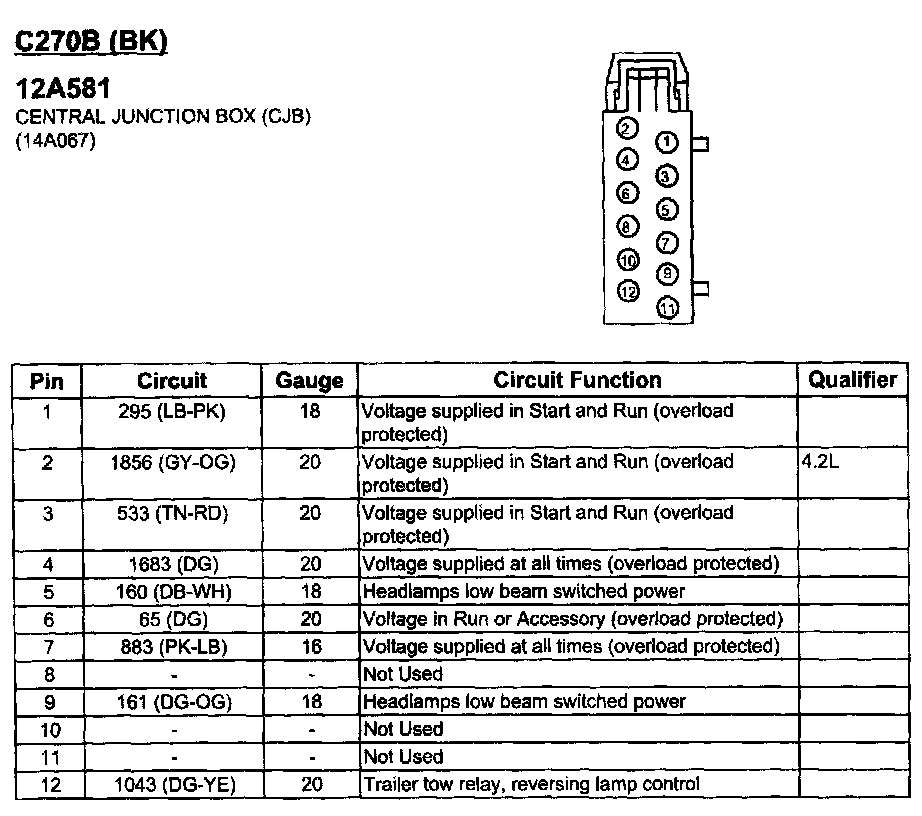

C270B:



C270C:

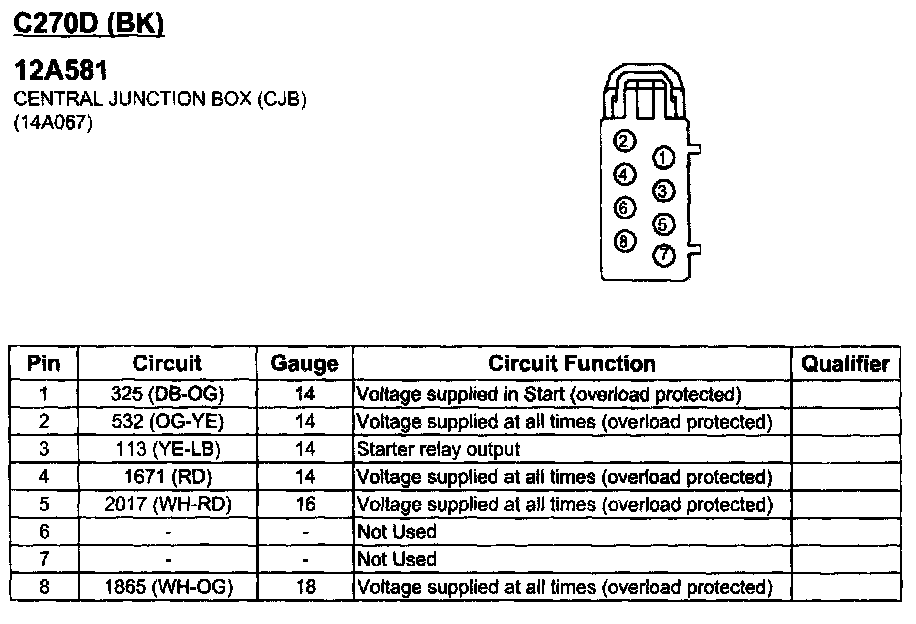

C270D:

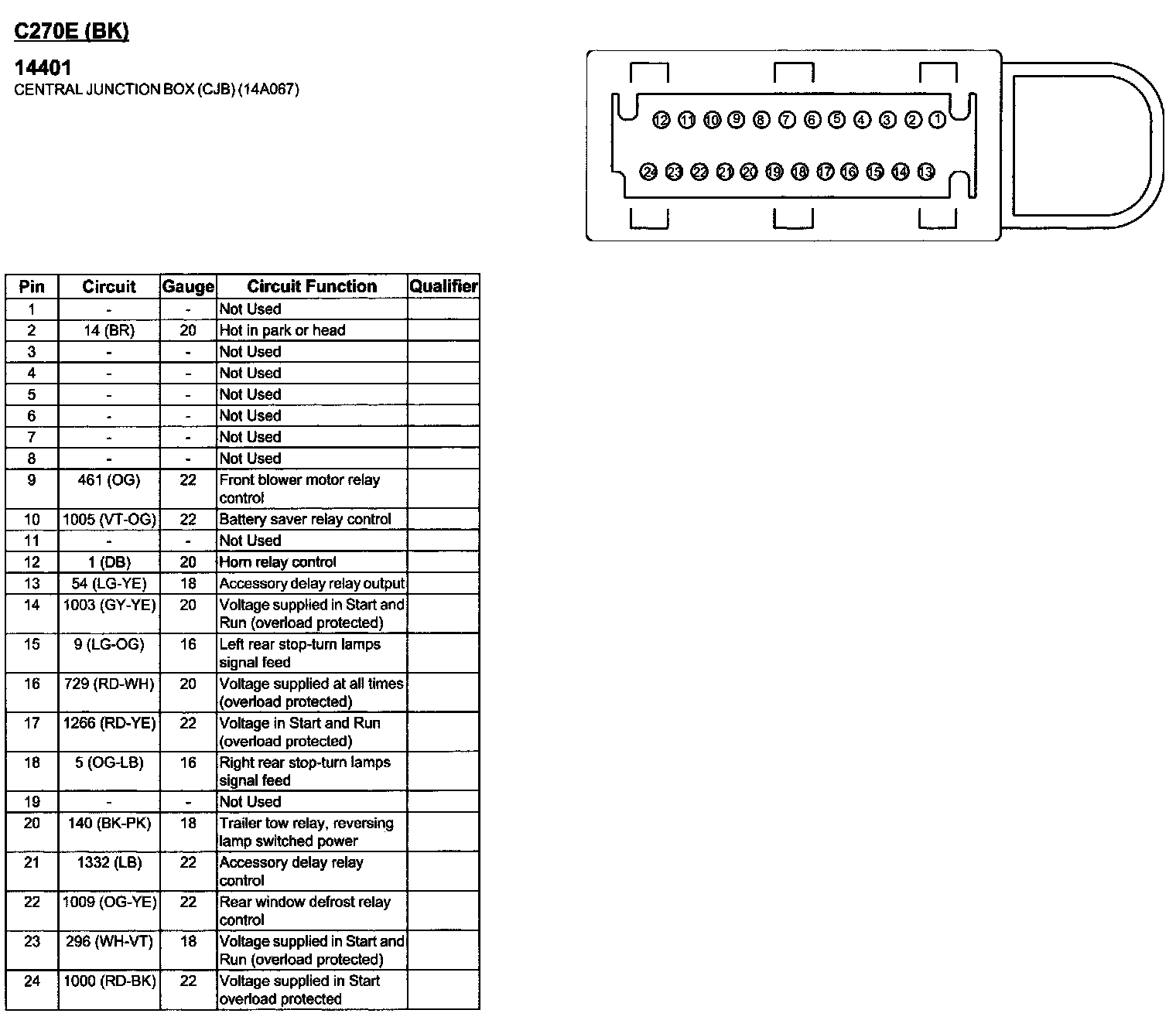

C270E:



C270F:

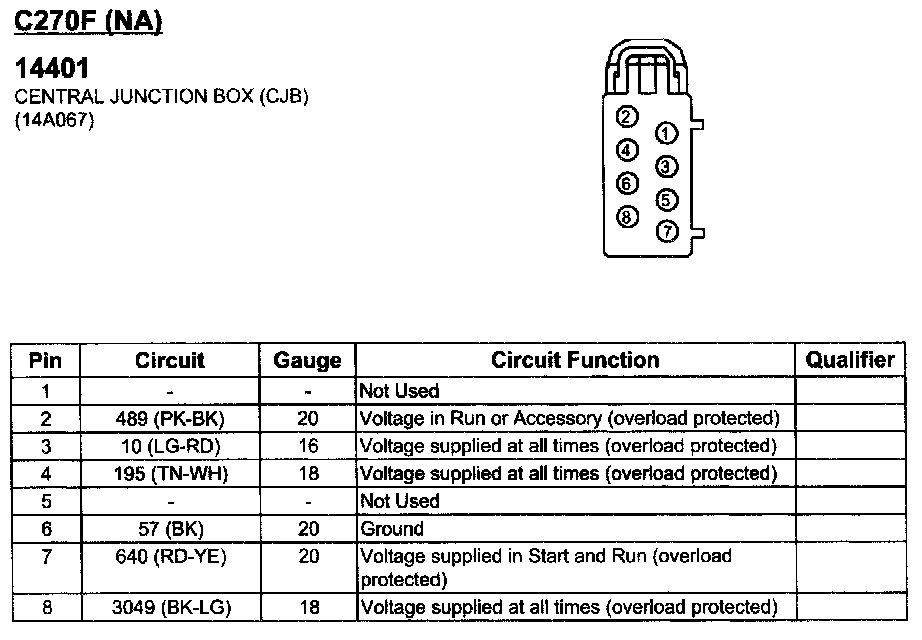

C270G:



C270H:

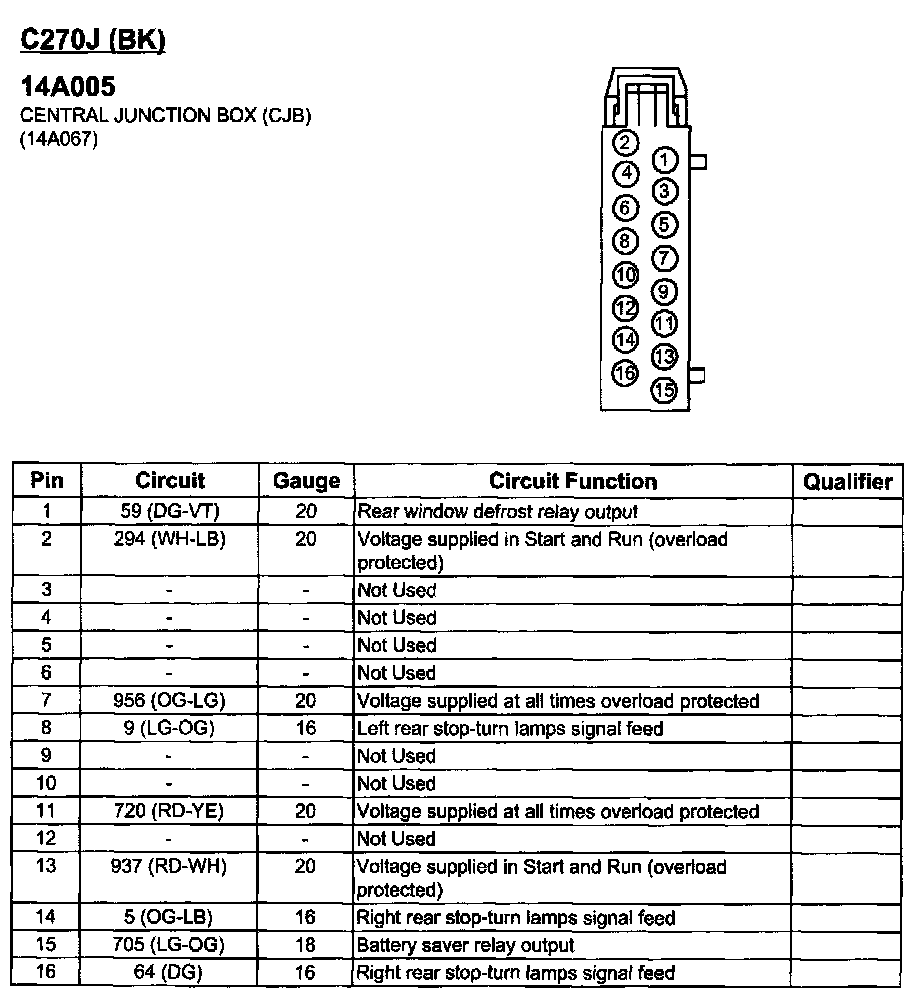

C270J:

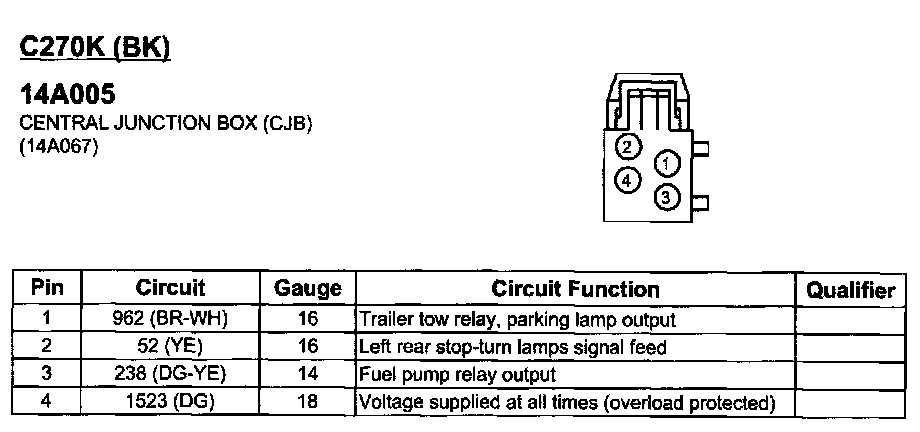

C270K:

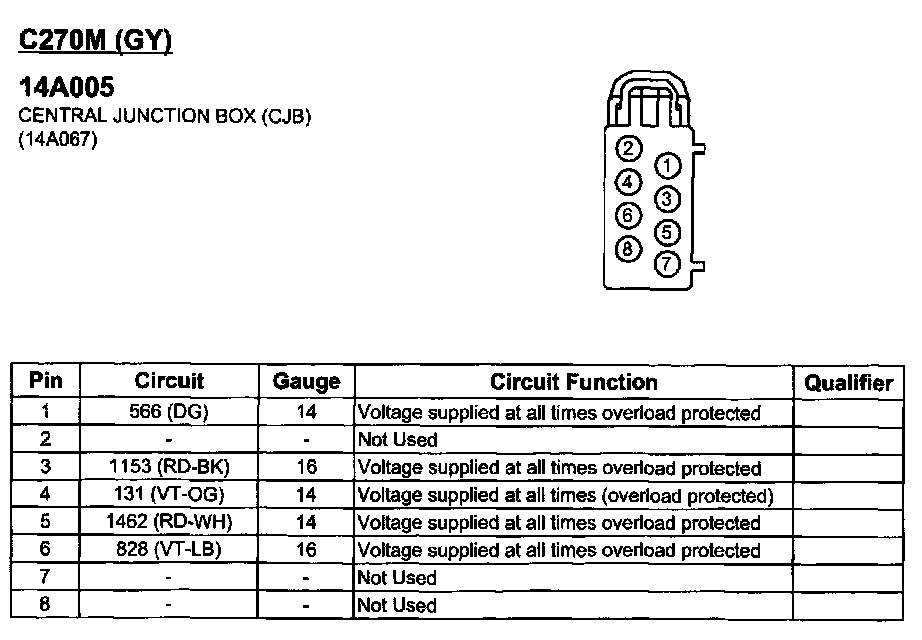

C270M:

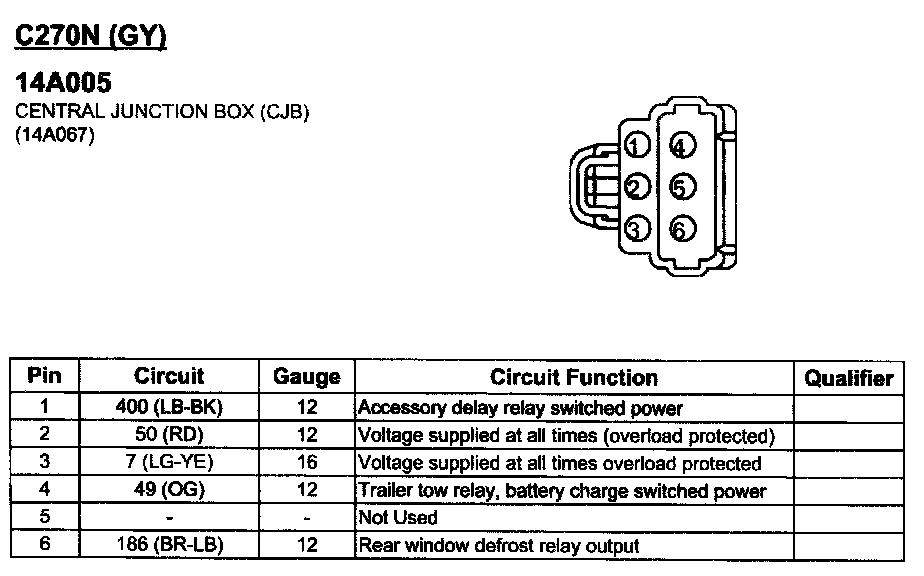

C270N:

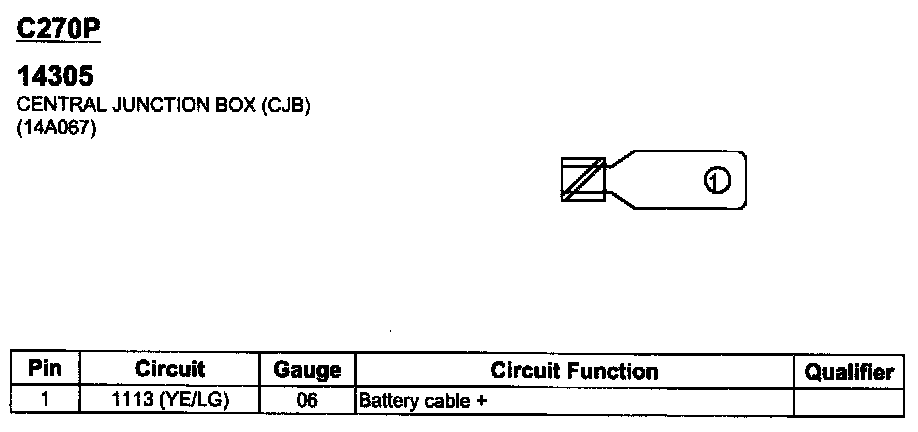

C270P:
