Inspection and Verification

INSPECTION AND VERIFICATION

1. Verify the customer concern.
2. Visually inspect for obvious signs of electrical damage.

VISUAL INSPECTION CHART

Electrical
- Wiring harness
- Connectors

Configurable Modules
The vehicle contains the following modules that are configurable:
- anti-lock brake system (ABS) module
- driver seat module (DSM)
- instrument cluster
- PCM
- vehicle security module

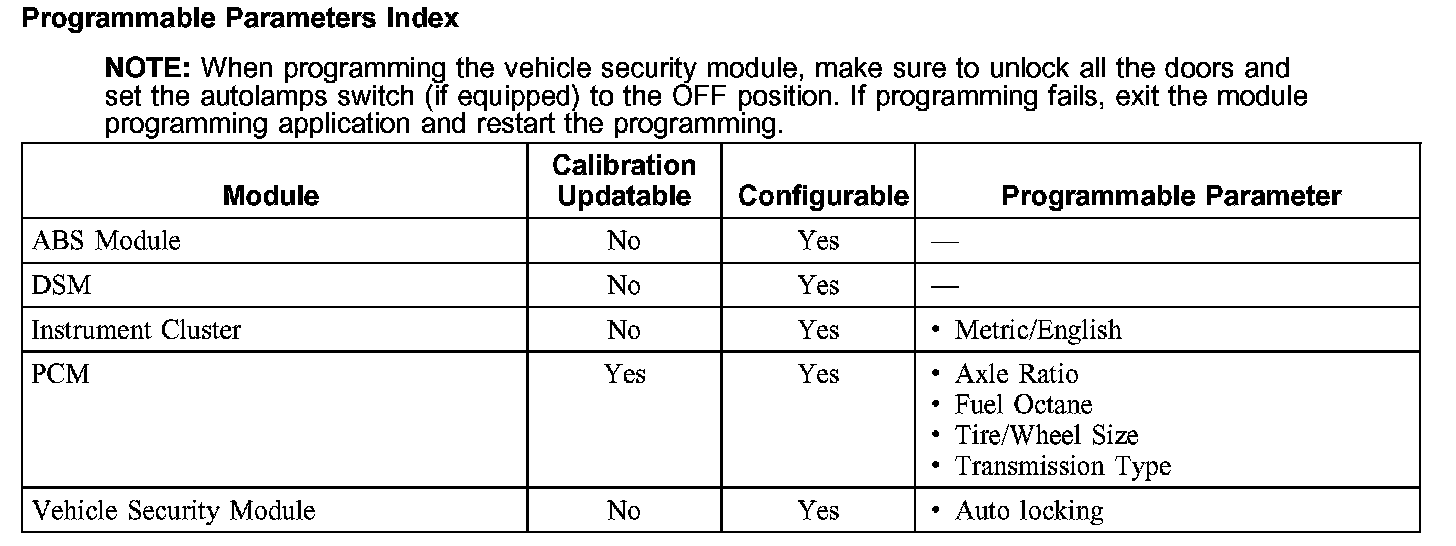

Programmable Parameters Index:

Programmable Parameters Index
