Intake Manifold

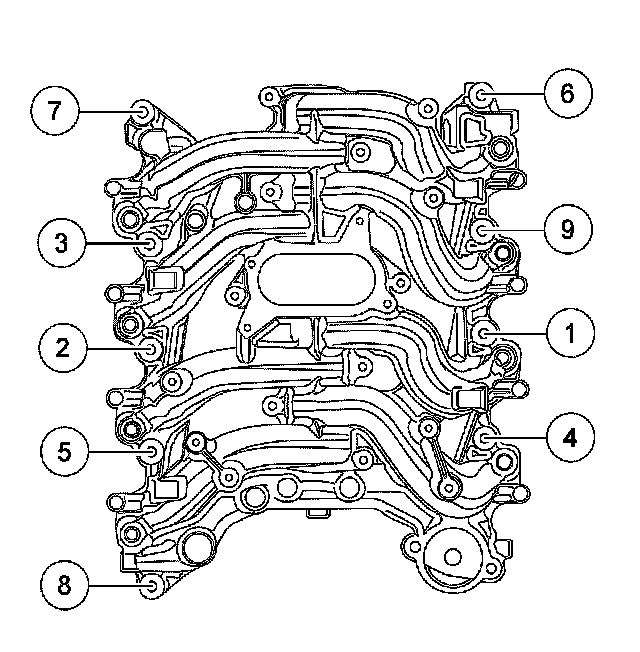

Intake manifold bolts 10 Nm (89 inch lbs.)
Throttle body bolts
Stage 1: 9 Nm (80 inch lbs.)
Stage 2: additional 90 degrees (1/4 turn)
Throttle body bolts
Stage 1: 9 Nm (80 inch lbs.)
Stage 2: additional 90 degrees (1/4 turn)
Intake manifold bolts 10 Nm (89 inch lbs.)
Throttle body bolts
Stage 1: 9 Nm (80 inch lbs.)
Stage 2: additional 90 degrees (1/4 turn)
Throttle body bolts
Stage 1: 9 Nm (80 inch lbs.)
Stage 2: additional 90 degrees (1/4 turn)
