Specifications
>>
Mechanical Specifications
>>
Engine
>>
Oil Pan, Engine

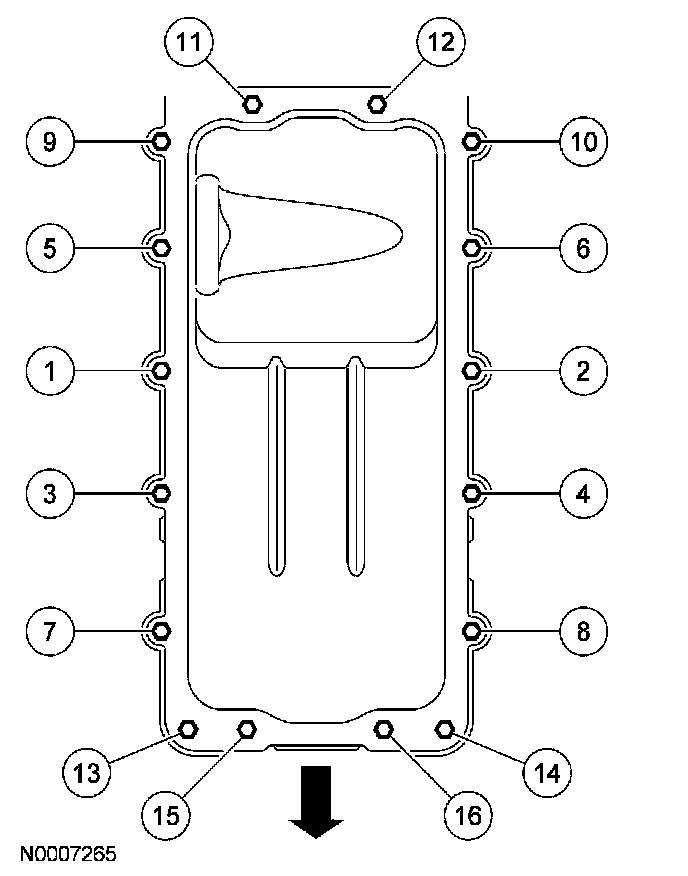

Oil Pan, Engine
Stage 1:
2 Nm (18 inch lbs.)
Stage 2: 20 Nm (15 ft. lbs.)
Stage 3: additional 60 degrees
