System Specifications

Front Cover

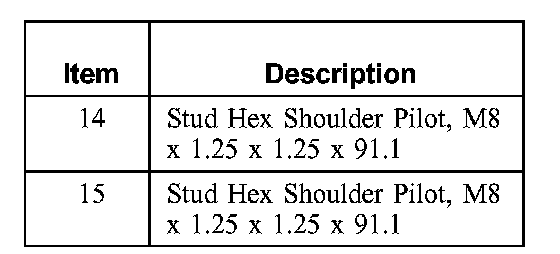

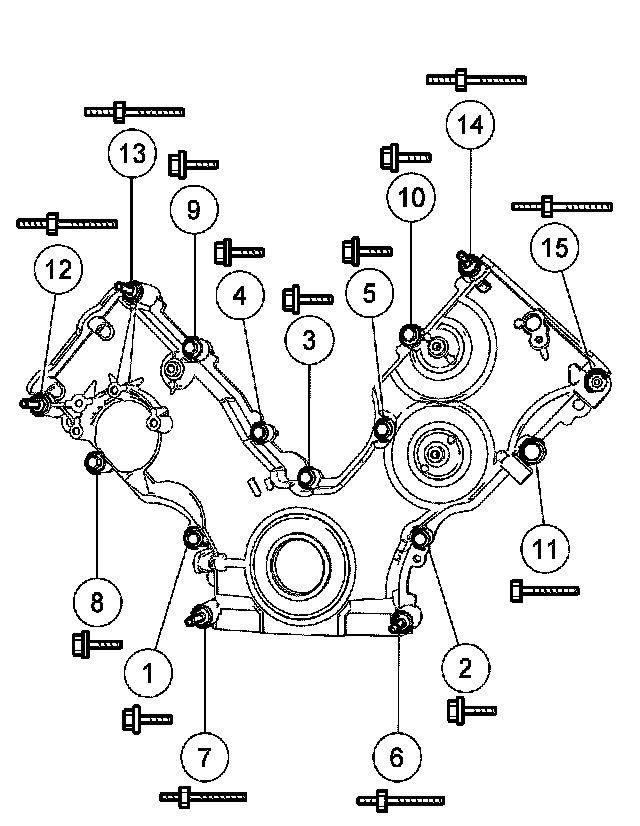

Tighten the engine front cover fasteners in the sequence shown to 25 Nm (18 lb-ft).

Oil Pan To Cover





Loosely install the bolts, then tighten the bolts in 2 stages, in the sequence shown.
^ Stage 1: Tighten to 20 Nm (15 ft. lbs.)
^ Stage 2: Tighten an additional 60 degrees

Crankshaft Pulley Bolt
Stage 1: 90 Nm (66 ft. lbs.)
Stage 2: Loosen one full turn.
Stage 3: 50 Nm (37 ft. lbs.)
Stage 4: additional 90 degrees
