Home >> Ford >> 2006 >> F 150 4WD Pickup V8-4.6L VIN W >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Diagrams

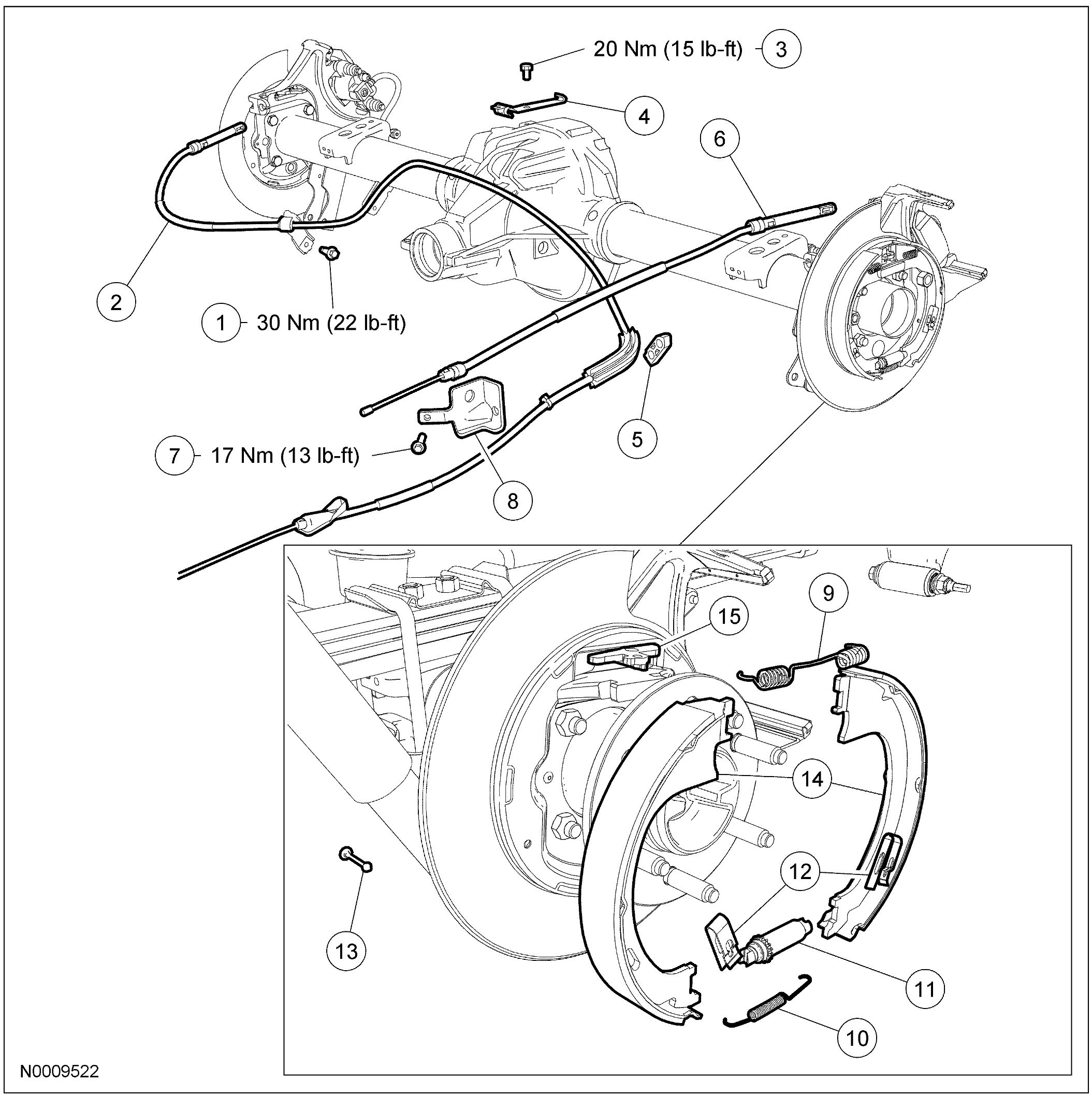

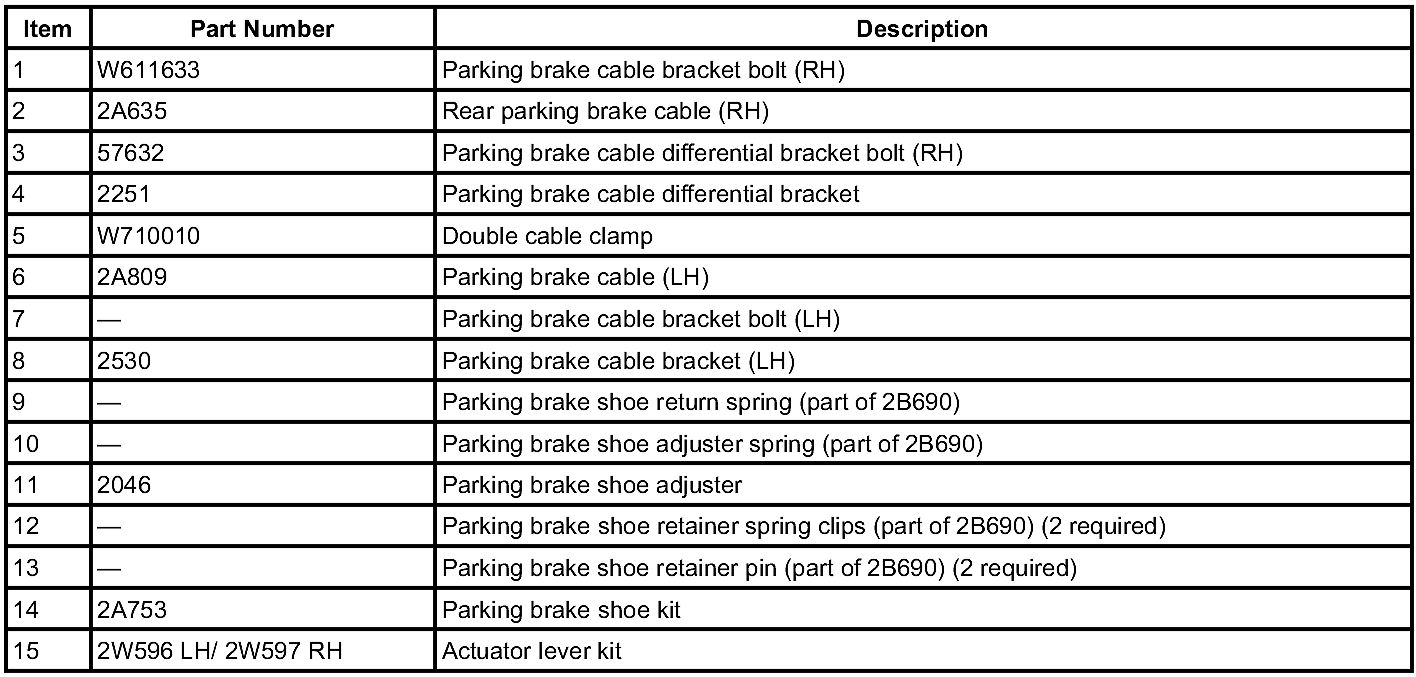

Parking Brake System: Diagrams
