Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2006
>>
F 150 4WD Pickup V8-5.4L VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Front Drive Axle/Differential
Front Drive Axle/Differential

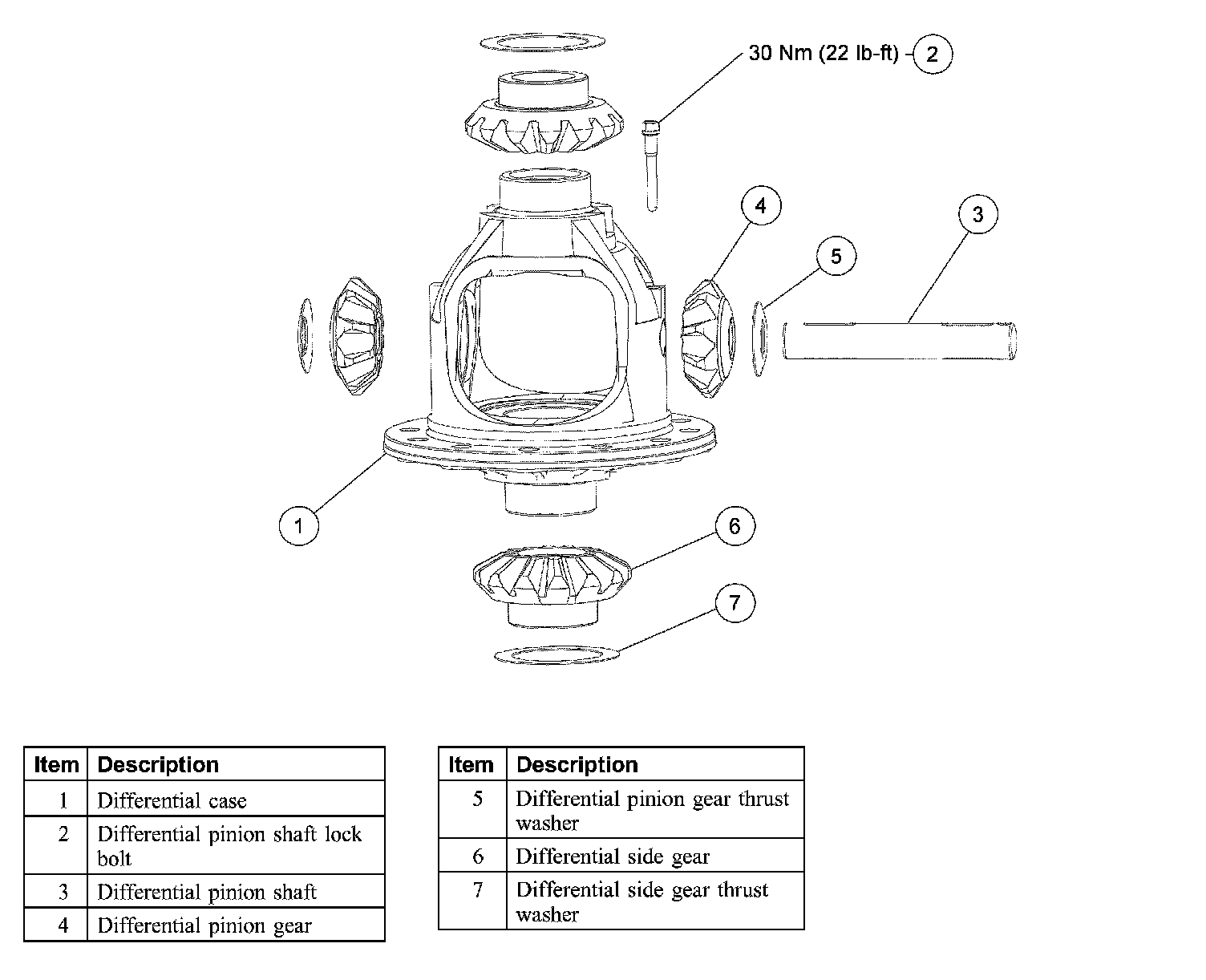

Differential Case
