Timing Cover

Front Cover

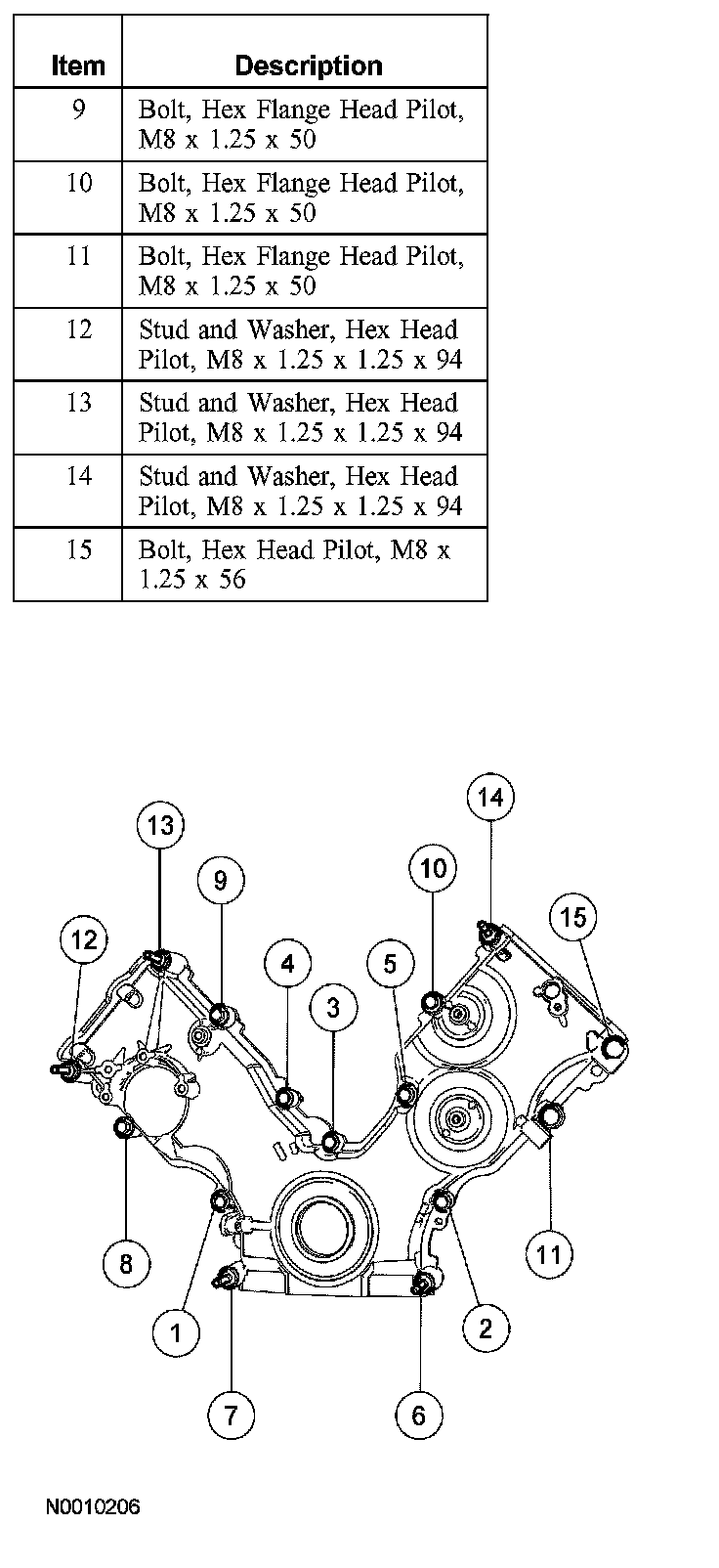

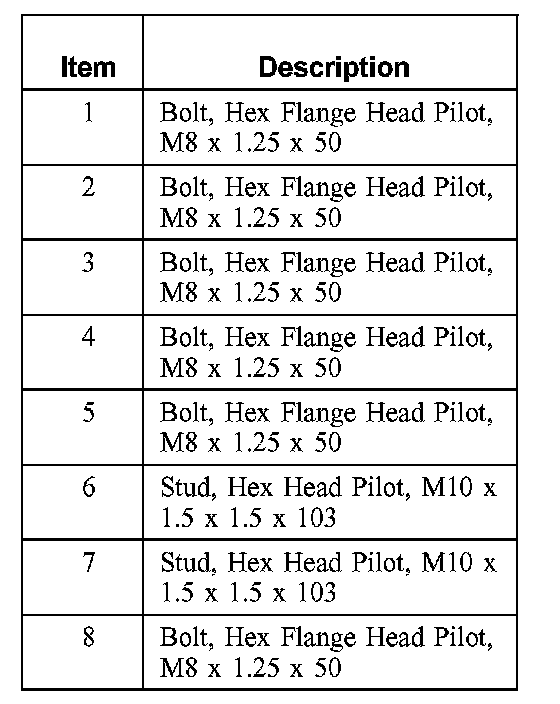

Stage 1: Fasteners 1 through 15 25 Nm (18 ft. lbs.)
Stage 2: Fasteners 6 and 7 48 Nm (35 ft. lbs.)

Oil Pan To Cover





Loosely install the bolts, then tighten the bolts in 2 stages, in the sequence shown.
Stage 1: Tighten to 20 Nm (15 ft. lbs.).
Stage 2: Tighten an additional 60 degrees.
