Front Suspension - Exploded View

Front 4X4

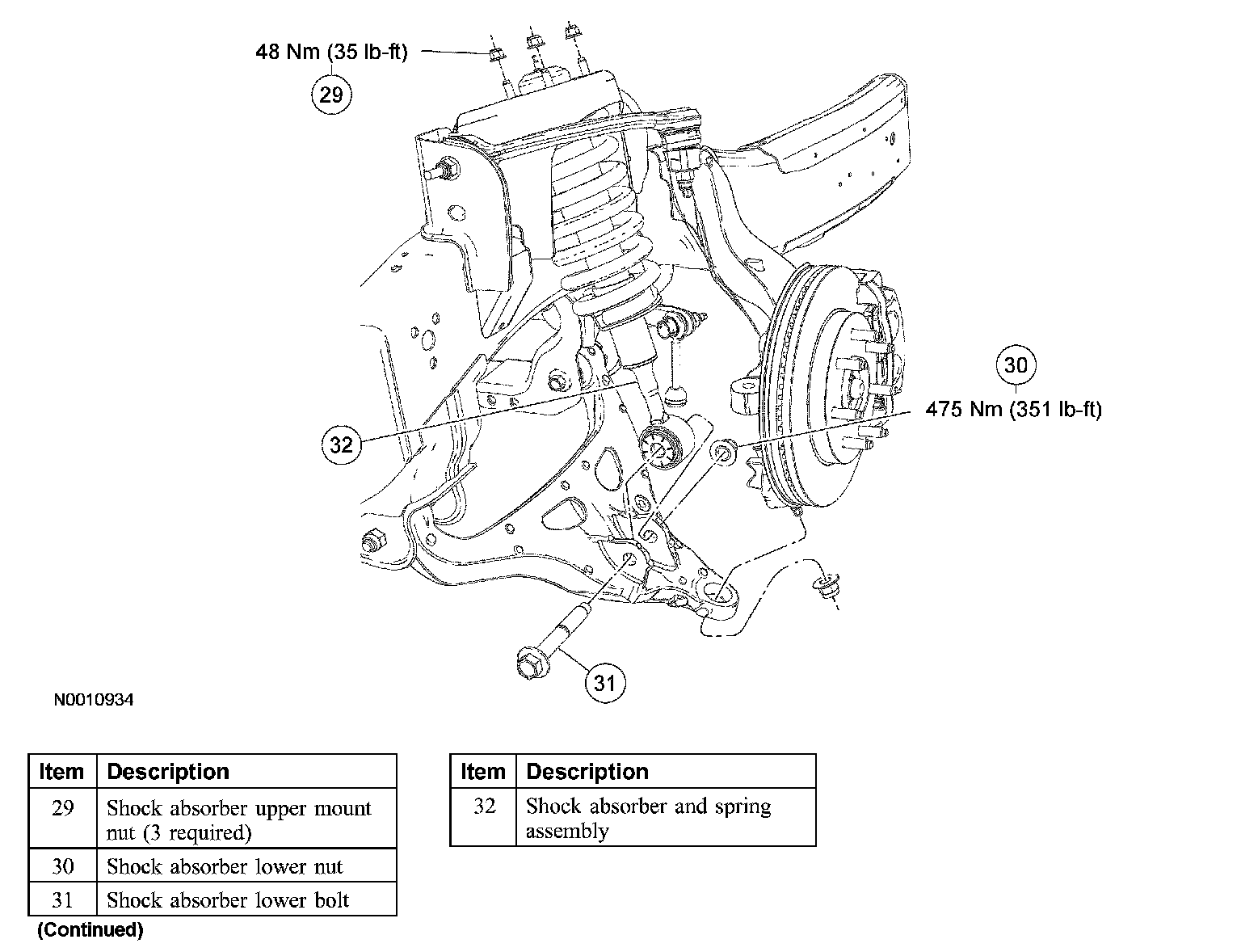

Front Suspension - Exploded View (Part 1):

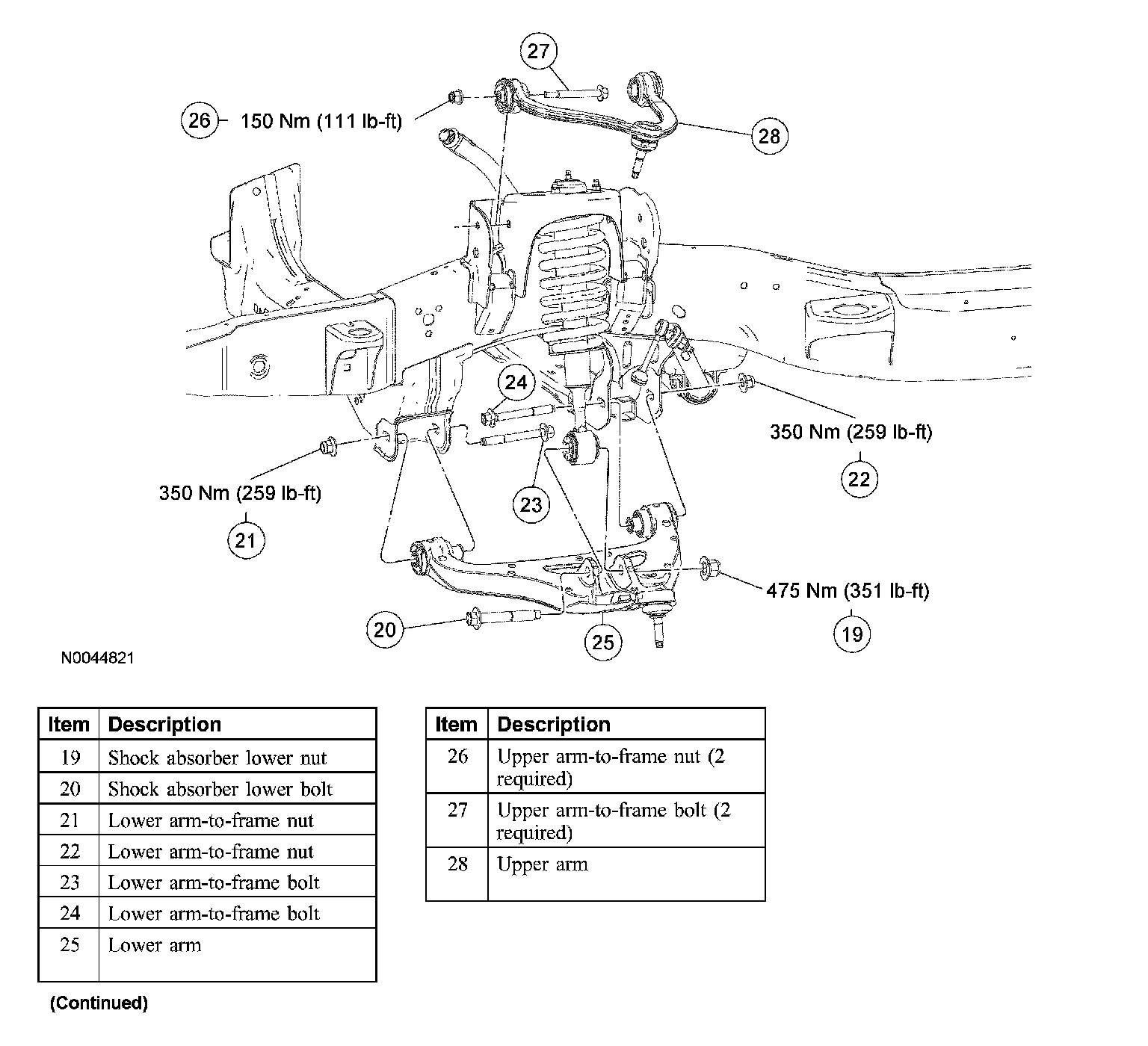

Front Suspension - Exploded View (Part 2):

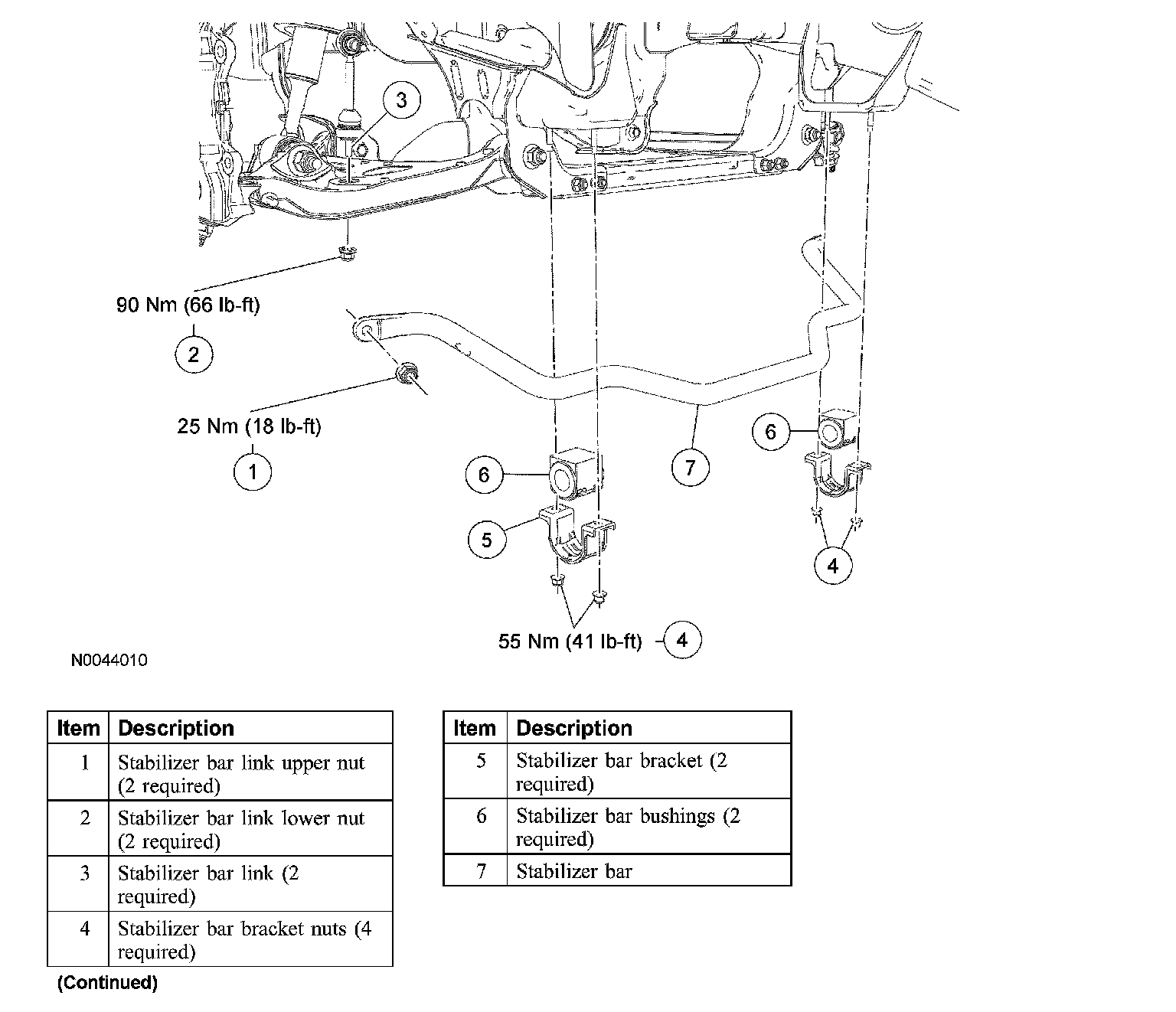

Front Suspension - Exploded View (Part 3):




Front Suspension - Exploded View (Part 4):
