Connector Circuit Reference

4x4 Module (GEM) C281a (Part 1):

4x4 Module (GEM) C281a (Part 2):

4x4 Module (GEM) C281a (Part 3):

4x4 Module (GEM) C281b (Part 1):

4x4 Module (GEM) C281b (Part 2):

4x4 Module (GEM) C281b (Part 3):

Mode Select Switch (MSS) C284 Part 1:

Mode Select Switch (MSS) C284 (Part 2):

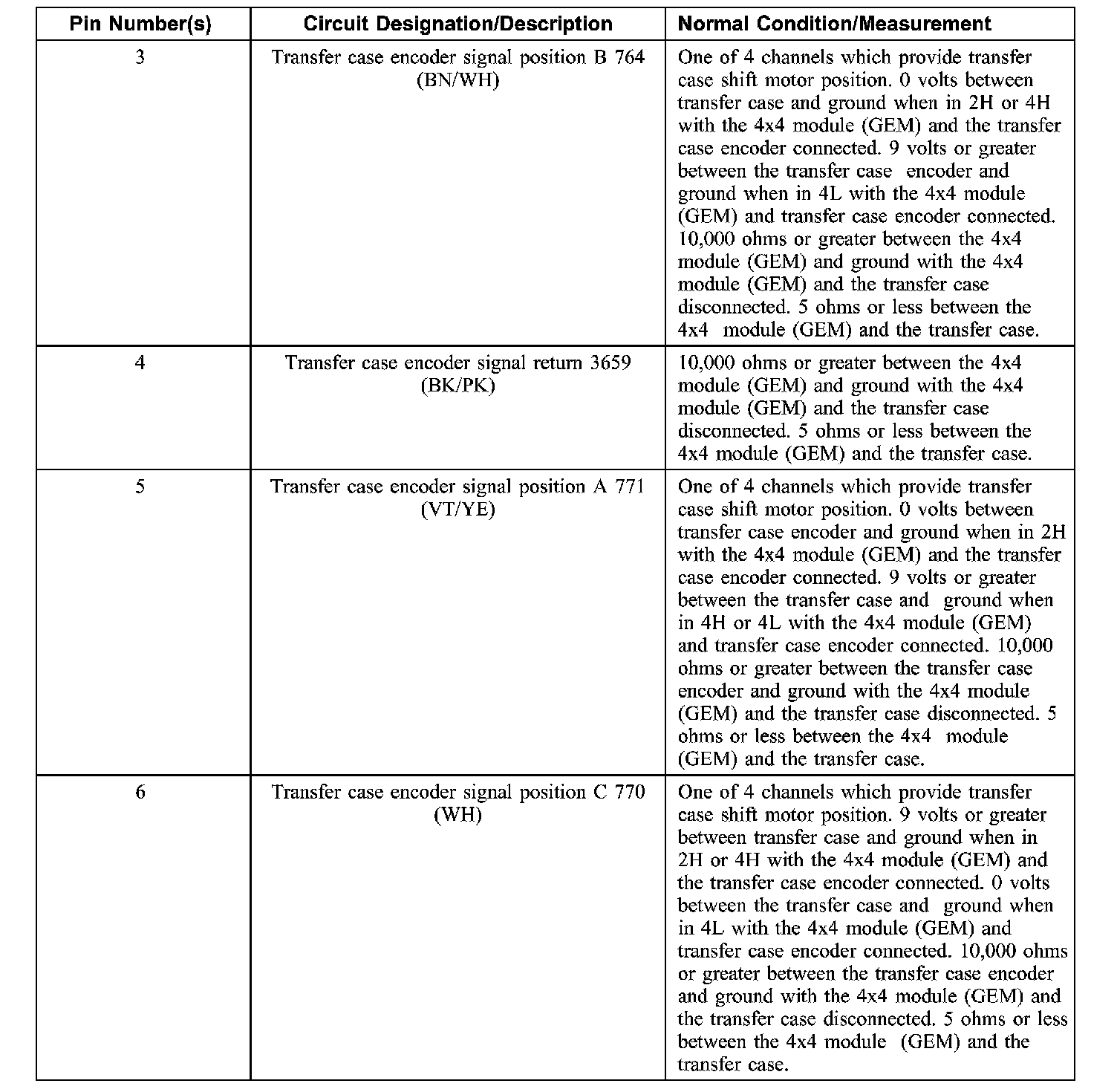

Transfer Case Encoder C350a (Part 1):

Transfer Case Encoder C350a (Part 2):

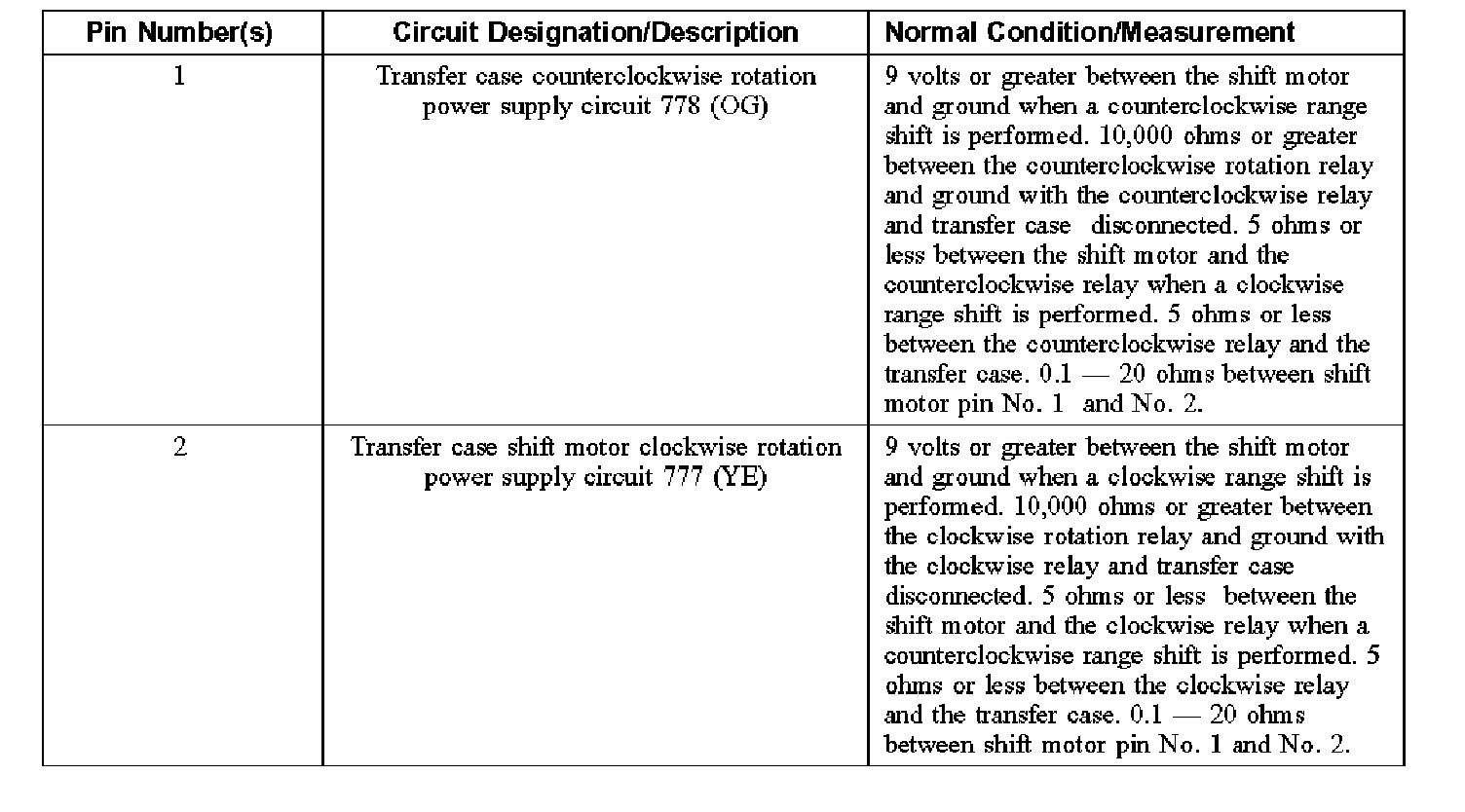

Transfer Case Shift Motor C350b (Part 1):

Transfer Case Shift Motor C350b (Part 2):

Pulse Vacuum Hublock (PVH) Solenoid C1247:

Shift Motor Clockwise Rotation Relay (Low-to-High) C1129 (Part 1):

Shift Motor Clockwise Rotation Relay (Low-to-High) C1129 (Part 2):

Shift Motor Counterclockwise Rotation Relay (High-to-Low) C1173:
