Test C: All the Locks Operate From One Switch Only

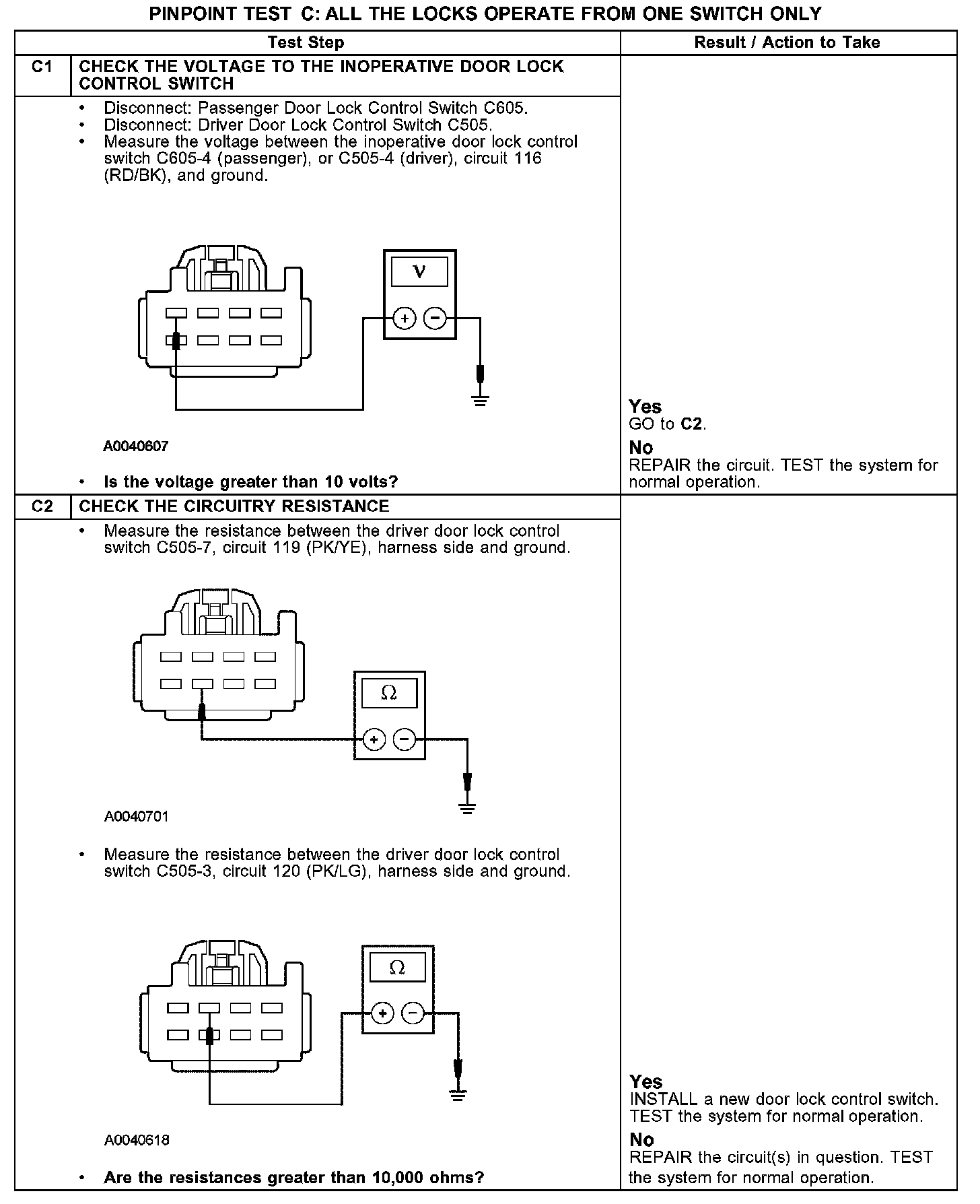

PINPOINT TEST C: ALL THE LOCKS OPERATE FROM ONE SWITCH ONLY

C1-C2:

Normal Operation
The power door lock switch receives voltage from the battery junction box (BJB) on circuit 116 (RD/BK). The power door lock switch completes one of 2 circuits, circuit 117 (PK/BK) to lock the doors or circuit 118 (PK/OG) to unlock the doors, to send voltage to the power door lock actuators. The actuators operate in the lock or unlock direction based on the voltage received from the power door lock switch.

Possible Causes
- circuit 116 (RD/BK) open
- circuit 119 (PK/YE) open
- circuit 120 (PK/LG) open
- power door lock switch
