Rear Seat Backrest - Supercab

REAR SEAT BACKREST - SUPERCAB

Removal and Installation

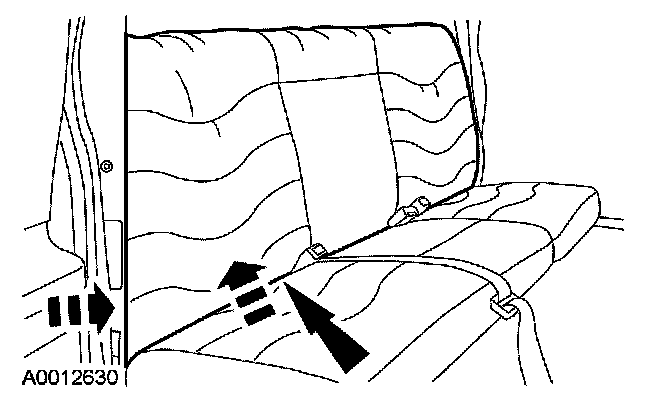

1. From the bottom of the seat backrest, push the seat backrest upward, then pull the bottom outward and remove from vehicle.

2. NOTE: Make sure all seat backrest hooks are in place.

To install, reverse the removal procedure.
- Make sure the safety belt is not twisted prior to installation.
- Make sure the safety belts and buckles are accessible to the occupants after installation.
