Test B: The Engine Does Not Crank and The Relay Does Not Click
Test B: The Engine Does Not Crank and The Relay Does Not Click
PINPOINT TEST B: THE ENGINE DOES NOT CRANK AND THE RELAY DOES NOT CLICK
B1:
B1-B3:

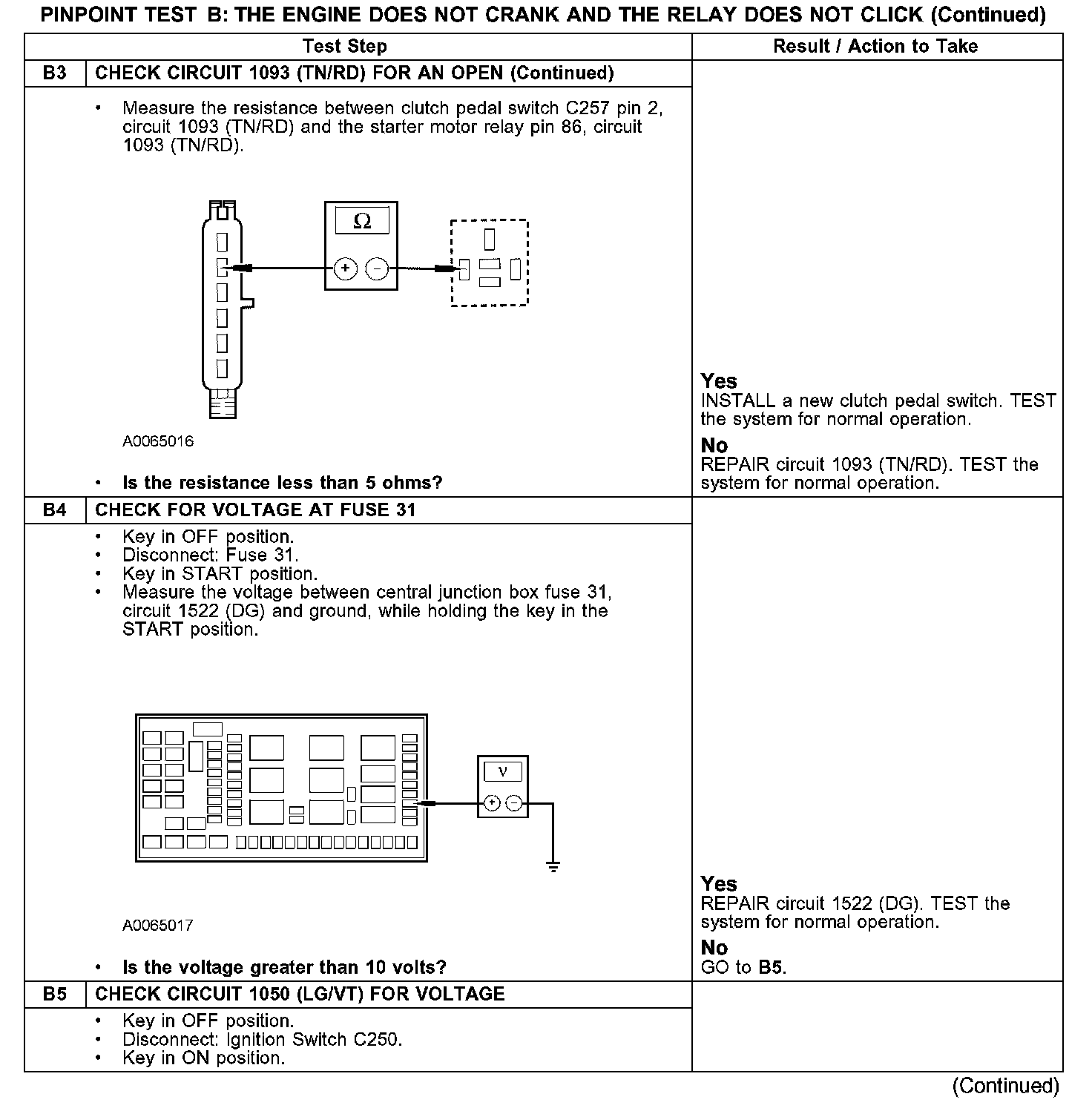

B3-B5:
B5-B8:
B8 Continued:
