Air Duct: Service and Repair
AIR INLET DUCTRemoval and Installation 1.
Remove the
heater core and evaporator core housing.
2.
Remove the screw and the floor duct.

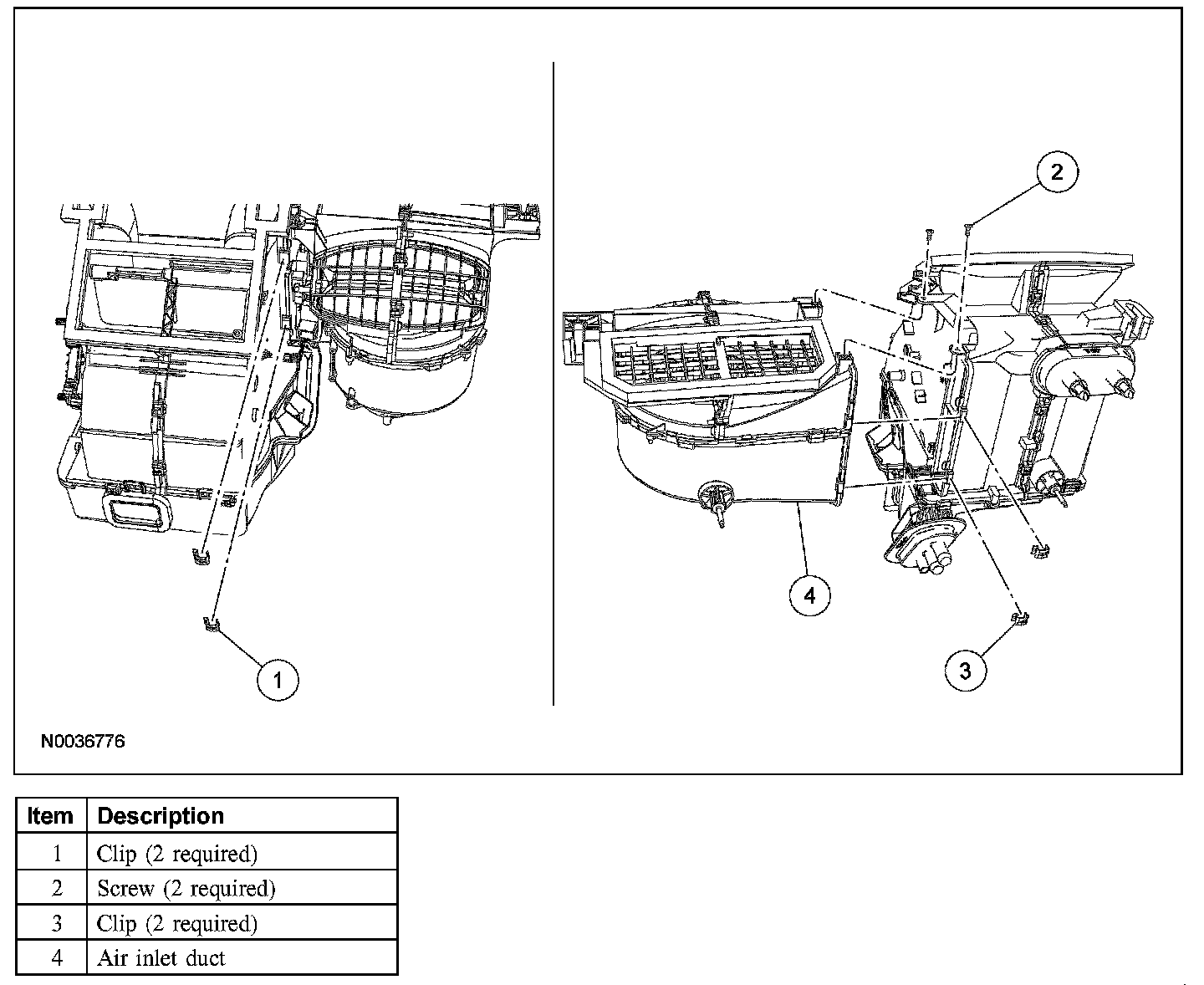

3.
Remove the air inlet duct.
1
Remove the 2 screws.
2
Remove the 4 retaining clips and the air inlet duct.
4.
To install, reverse the removal procedure.
