Fog/Driving Lamp: Service and Repair

FOG LAMP












Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. With the vehicle in NEUTRAL, position it on a hoist.

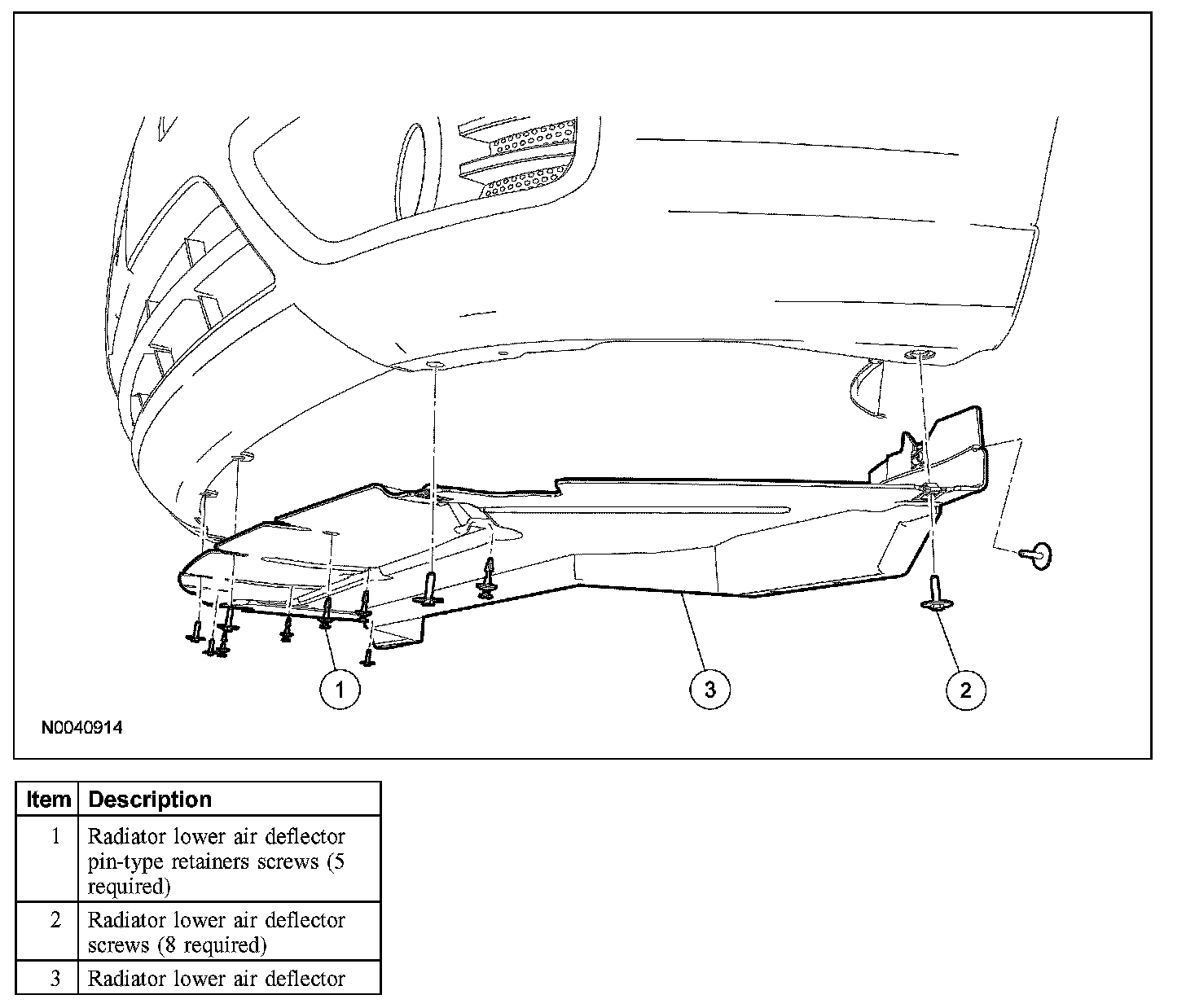

2. Remove the radiator lower air deflector.
1 Remove the 8 screws.
2 Remove the 5 pin-type retainers.

3. NOTE: For the LH fog lamp, remove the air cleaner assembly.

Remove the 3 screws and the fog lamp.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
- If necessary, adjust the fog lamps.
