Wheel Bearing
Drum 1.
NOTE: The following step is only required for vehicles without a water seal installed.

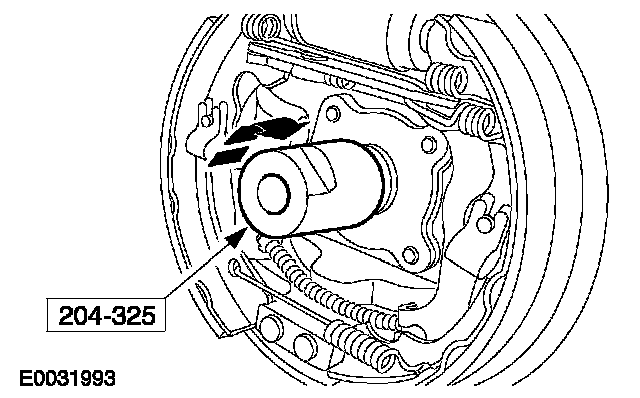

Install the water seal in two stages.
^
Stage 1: Using the special tool, engage the water seal and protective cap.
^
Stage 2: Tighten to
7 Nm.
2.
Remove the special tool.
^
Remove the protective cap.
3.
Install the
wheel hub.
