Lateral Accelerometer: Service and Repair

Accelerometer





Removal and Installation

NOTE: When installing a new accelerometer, the anti-lock brake system (ABS) module must be configured (using vehicle as-built data) and calibrated. Follow the diagnostic tool directions for the calibration procedures. For module configuration, refer to Information Bus.

1. Remove the driver side front seat.
2. Remove the lower B-pillar trim panel.

3. NOTE: Fold back the carpeting flap to gain access to the accelerometer.

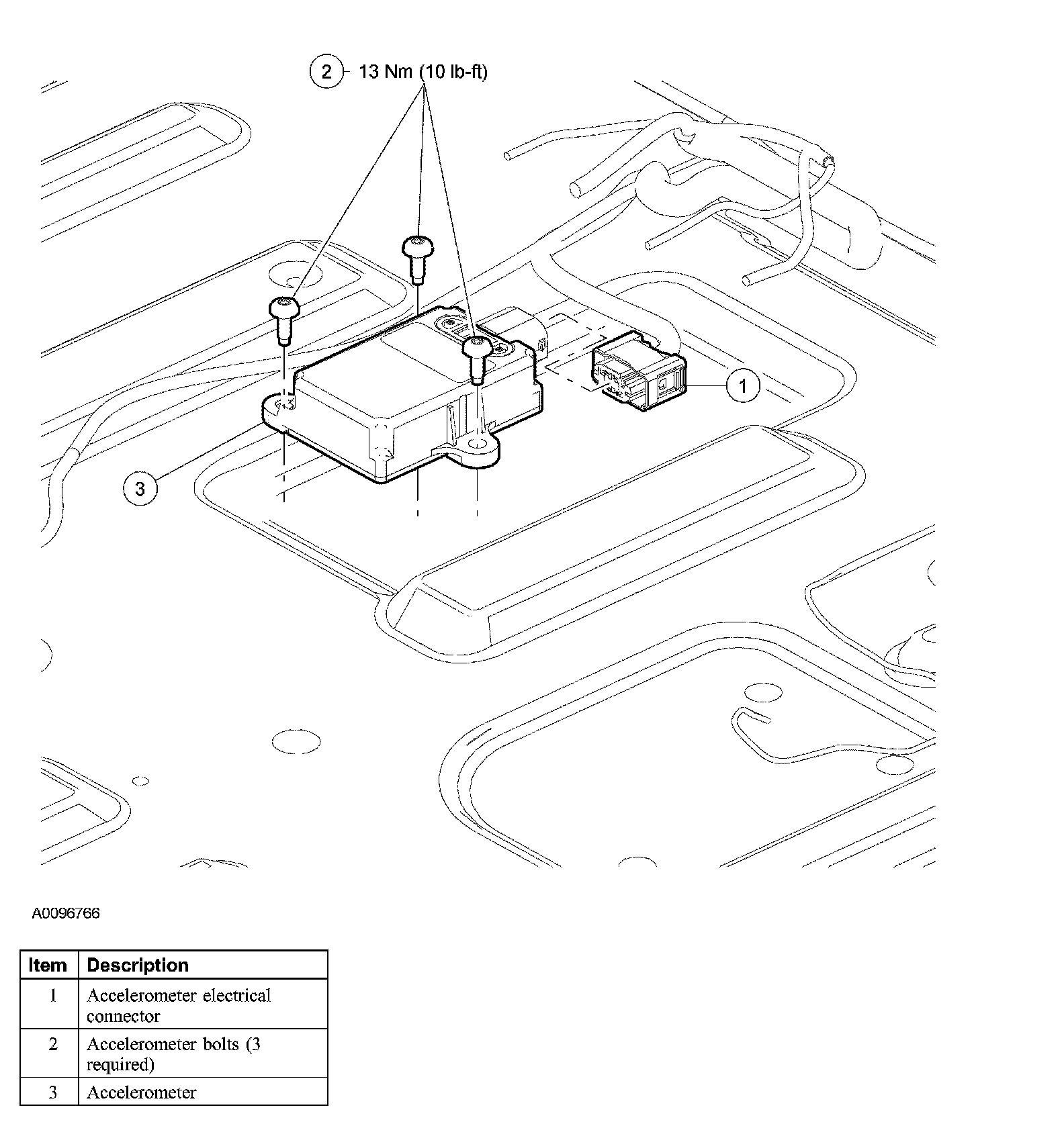

Disconnect the accelerometer electrical connector.
4. Remove the 3 accelerometer bolts.
^ To install, tighten to 13 Nm (10 ft. lbs.).
5. To install, reverse the removal procedure.
