Blower Motor Switch: Service and Repair

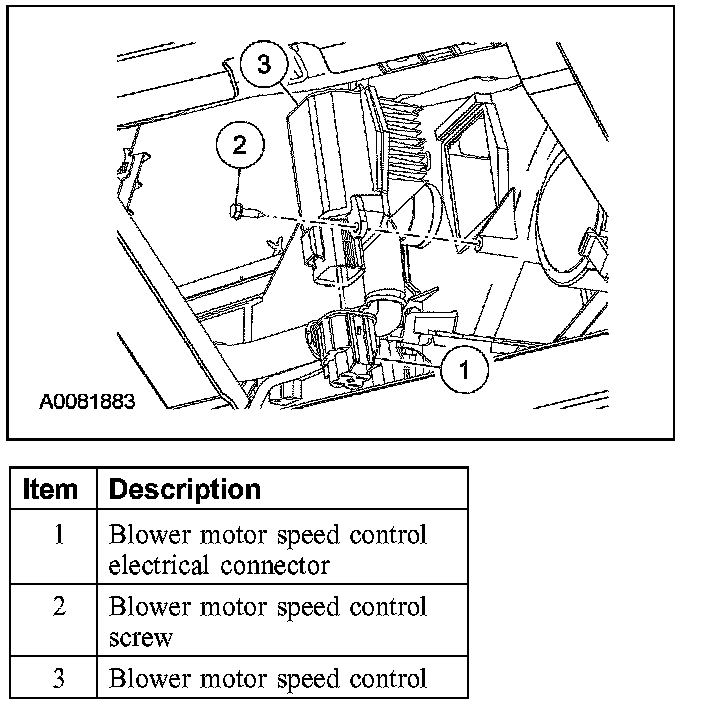

BLOWER MOTOR SPEED CONTROL







Removal and Installation
1. Lower the glove compartment.
2. Disconnect the blower motor speed control electrical connector.
3. Remove the blower motor speed control screw.
4. Remove the blower motor speed control.
5. To install, reverse the removal procedure.
