Fog/Driving Lamp Relay: Locations



Battery Junction Box (BJB)

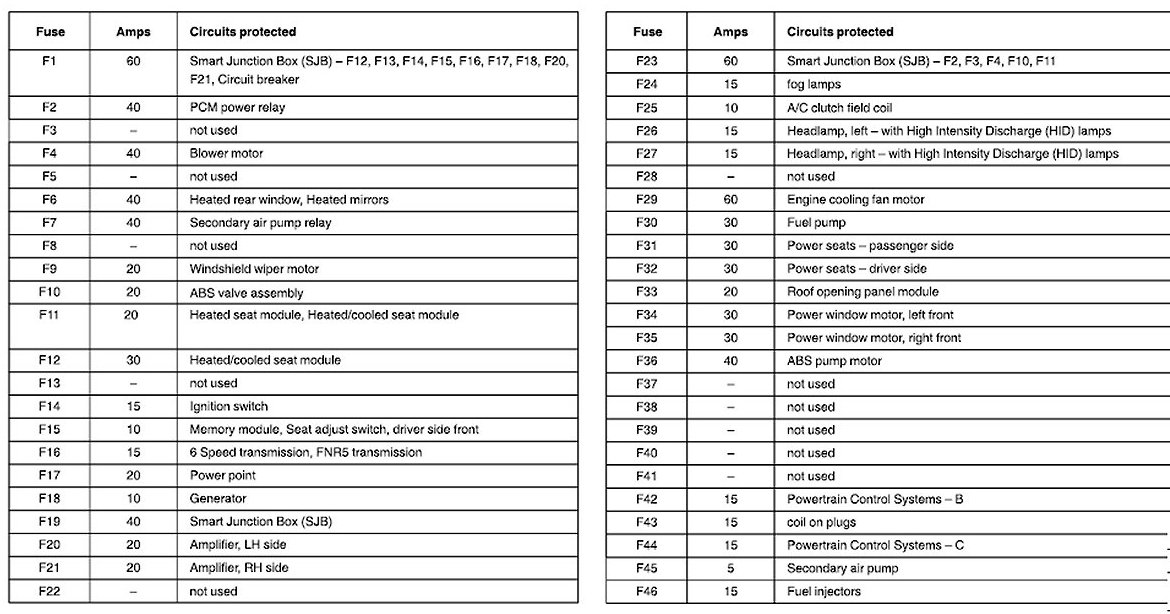

Battery Junction Box (1 Of 2):





Battery Junction Box (2 Of 2):
