Audio System - Buzz/Rattle From Door Speaker/Door Panel

TSB 07-17-6

09/03/07

BUZZ/RATTLE FROM DOOR PANEL WHEN
OPERATING AUDIO SYSTEM - VEHICLES BUILT
BEFORE 8/2/2007

FORD:
2005-2008 Mustang

ISSUE
Some 2005-2008 Mustang vehicles built before 8/2/2007 may experience a buzz/rattle from the door panels when using the radio/CD player at elevated volumes or bass levels or voice broadcasts. This may be due to the window switch bezel vibrating against the door trim panel. This can often be incorrectly diagnosed as an audio speaker buzz or a bad speaker.

ACTION
Follow the Service Procedure steps to correct the condition by applying foam tape to the window switch bezel.

SERVICE PROCEDURE

1. Remove window switch bezel from door panel and separate the two piece bezel.

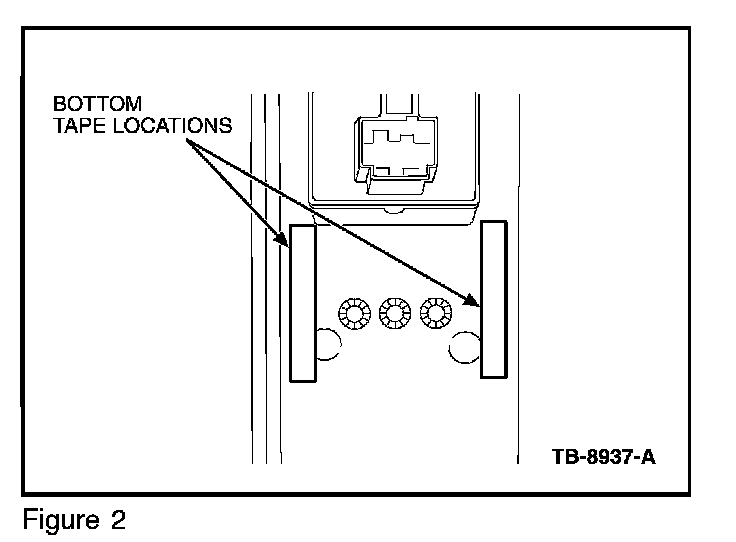

2. Install three (3) pieces of PVC sofi foam tape 3/8" wide by 1 3/4" long (10 mm by 45 mm) part number 164-R4901 from the Rotunda Squeak and Rattle Repair Kit part number 164-R4900. (Figures 1 and 2)

3. Reinstall window switch bezel and verify proper operation of the window switches.

WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
IMPORTANT: Warranty coverage limits/policies are not altered by a TSB. Warranty coverage limits are determined by the identified causal part.

OPERATION DESCRIPTION TIME

071706A 2005-2008 Mustang Built 0.3 Hr.
Before 8/2/2007: Install
Foam Tape, Includes Time
To Remove And Install
Bezel: One Door. (Do Not
Use With 23943A)

071706B 2005-2008 Mustang Built 0.4 Hr.
Before 8/2/2007: Install
Foam Tape, Includes Time
To Remove And Install
Bezel: Both Doors. (Do
Not Use With 23943A)

DEALER CODING
CONDITION
BASIC PART NO. CODE
14527 33
