Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2006
>>
Mustang V8-4.6L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
>>

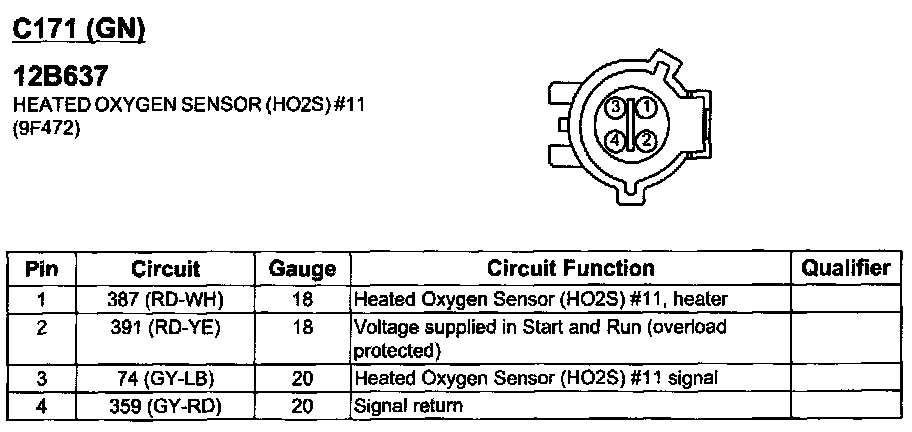

Heated Oxygen Sensor (HO2S) #11
Heated Oxygen Sensor (HO2S) #11
C171:
