Plenum Chamber

PLENUM CHAMBER

Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel, Instrument Panel

2. Remove the evaporator core housing. Service and Repair

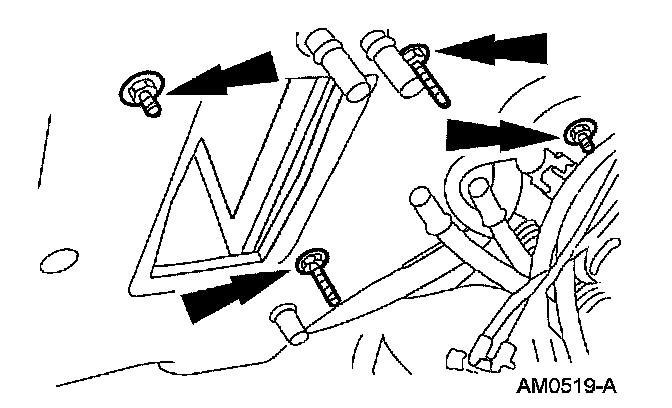

3. Remove the 3 plenum chamber nuts and the plenum chamber.
- To install, tighten to 4 Nm (35 lb-in).

4. To install, reverse the removal procedure.
