Frame: Description and Operation

FRAME AND BODY MOUNTING

Frame, 4x4 Short Wheel Base Shown:

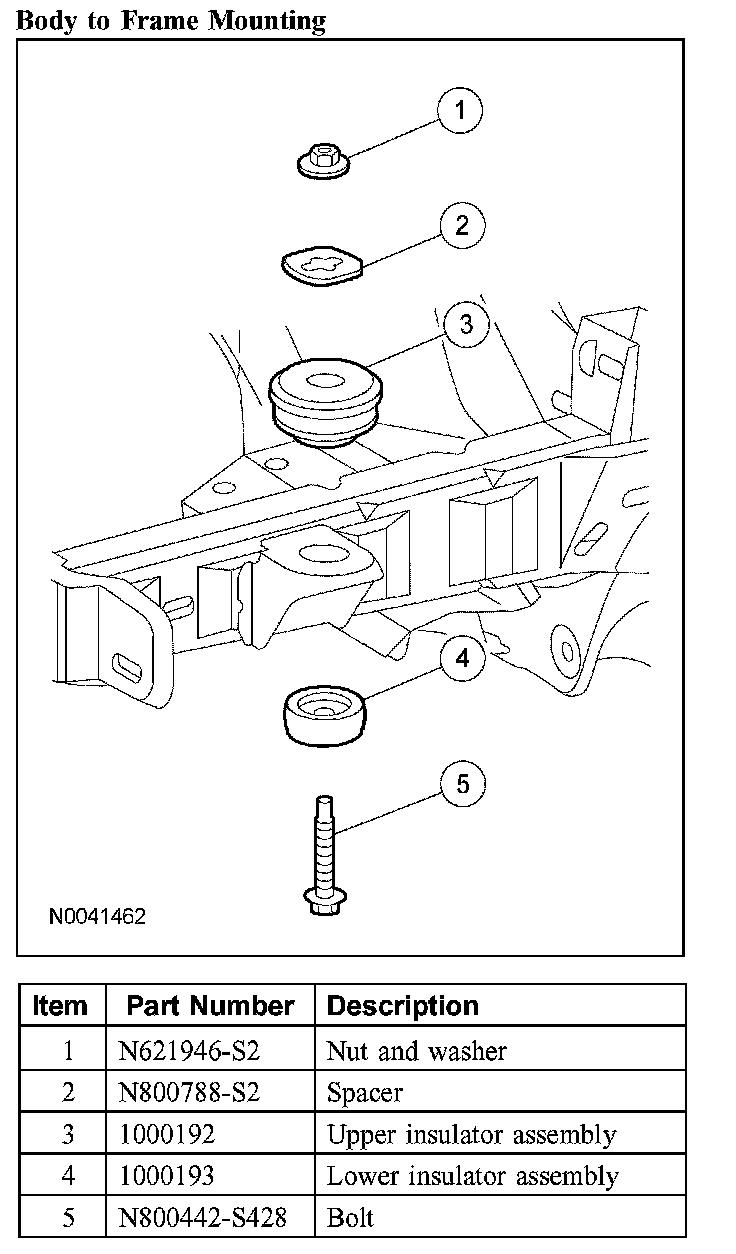

Body To Frame Mounting:

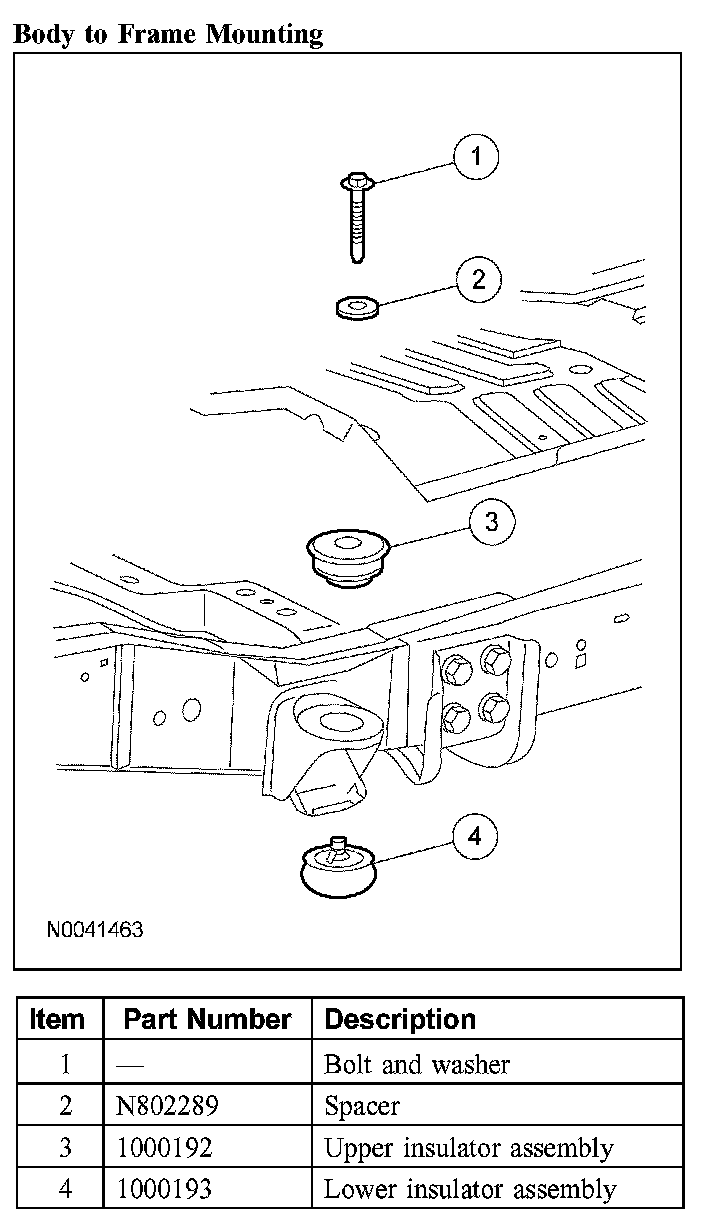

Body To Frame Mounting:

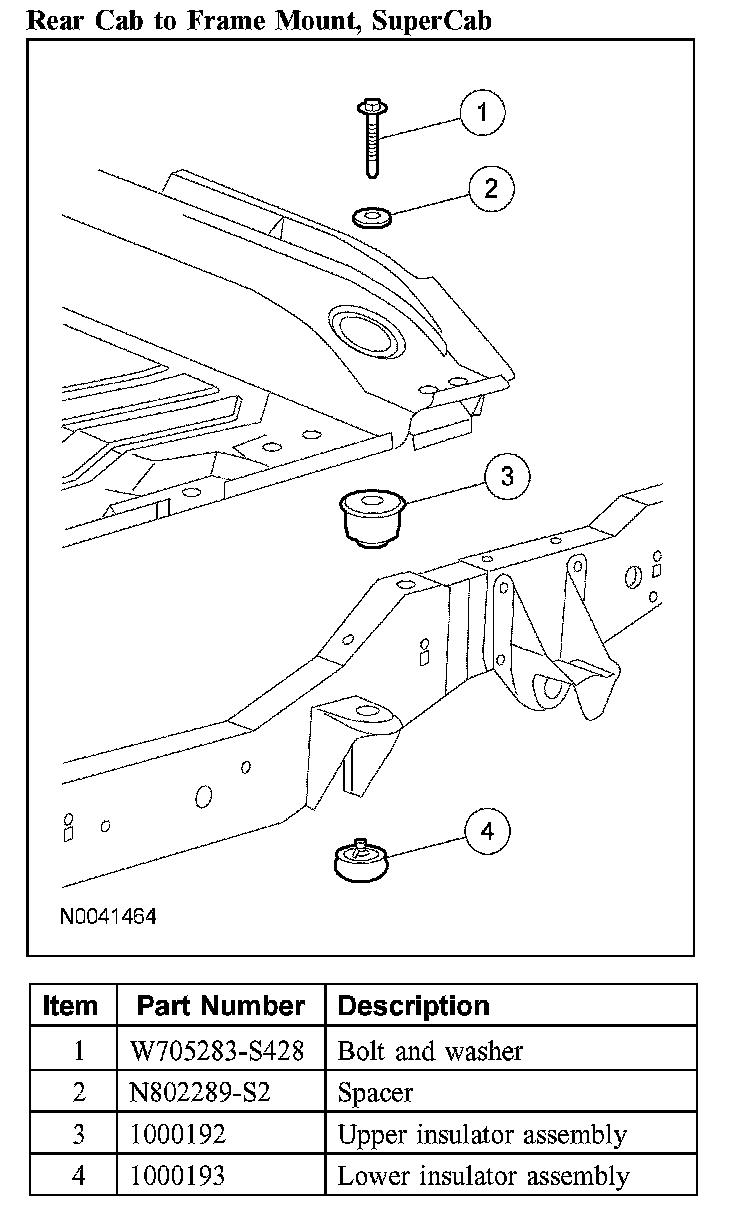

Rear Cab To Frame Mount, SuperCab:

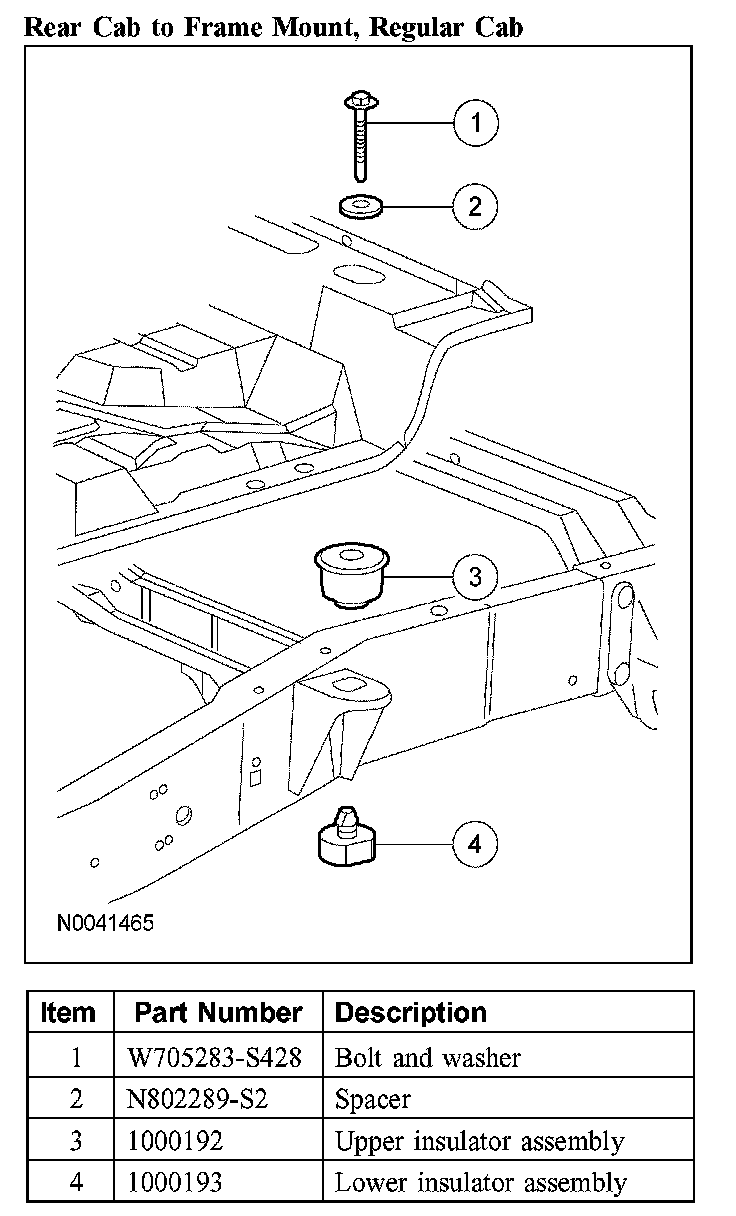

Rear Cab To Frame Mount, Regular Cab:

The frame consists of 2 steel channel rails, a rear crossmember, a number of additional support crossmembers and a front crossmember.

The No. 1A (4x4 only) and the No. 1 crossmembers are welded to the frame side rails. The remaining frame crossmembers are riveted and/or bolted into place.
