Rear Seat - Center Facing

REAR SEAT - CENTER FACING

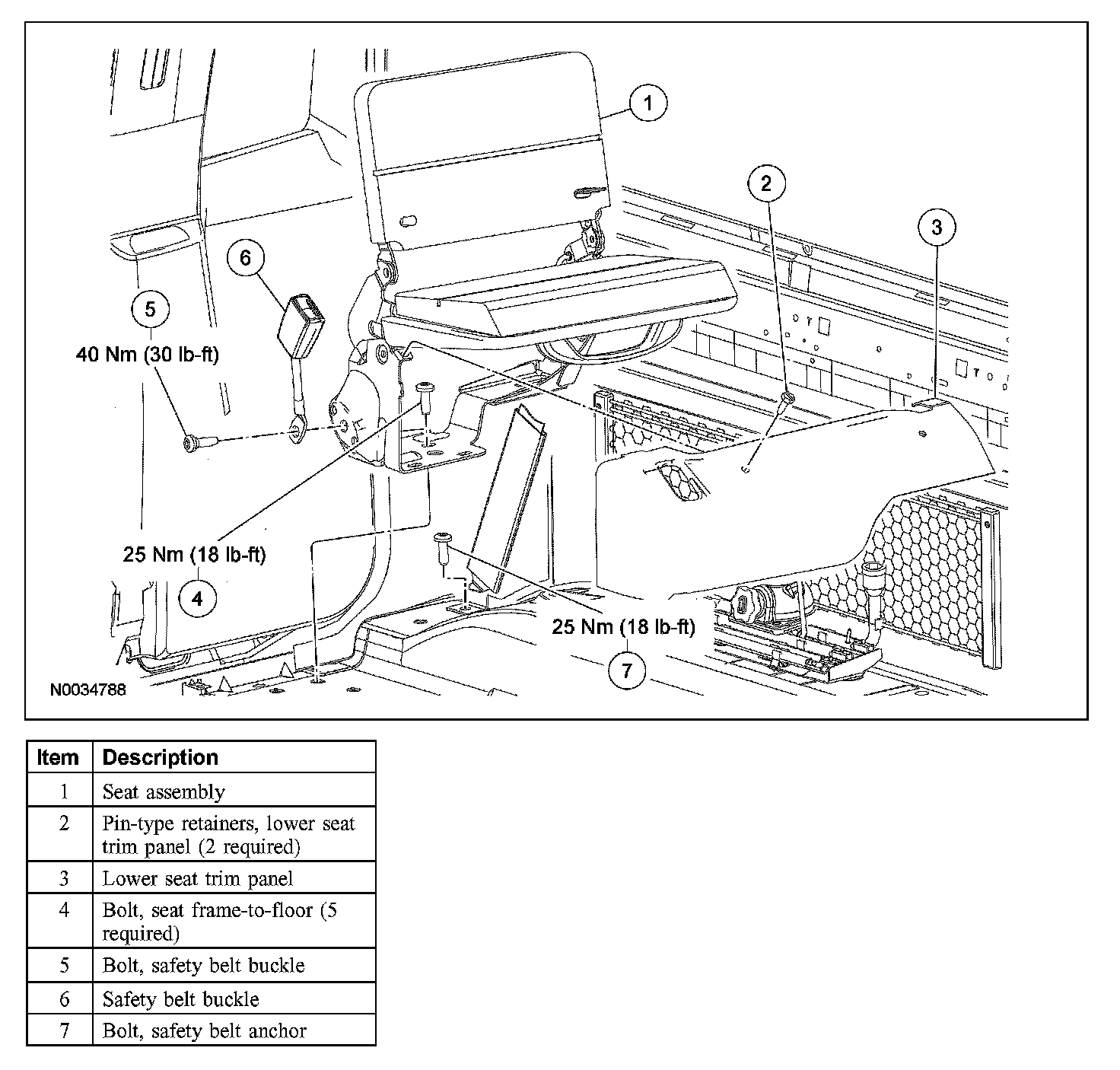

Removal and Installation
1. Remove the lower rear seat trim panel.
- Remove the pin-type retainers.
- Remove the lower rear seat trim panel.

2. Remove the center facing rear seat.
- Remove the 5 bolts.
- To install, tighten to 25 Nm (18 lb-ft).

- Remove the safety belt anchor bolt.
- To install, tighten to 25 Nm (18 lb-ft).

- Remove the center facing rear seat.

3. To install, reverse the removal procedure.
4. Make sure the safety belts and buckles are accessible to the occupants after installation.
