Rear Seat - SuperCab Four-Door

REAR SEAT - SUPERCAB FOUR-DOOR







Removal and Installation

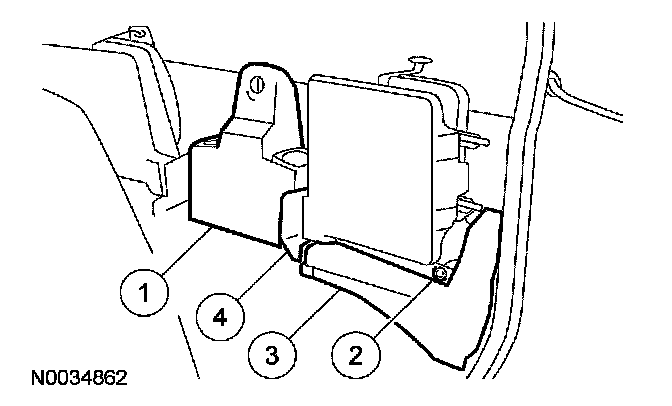

1. Remove the rear seat covers.
1 Remove the jack cover.
2 Remove the pin-type retainer.
3 Remove the outboard trim cover.
4 Remove the inboard cover.

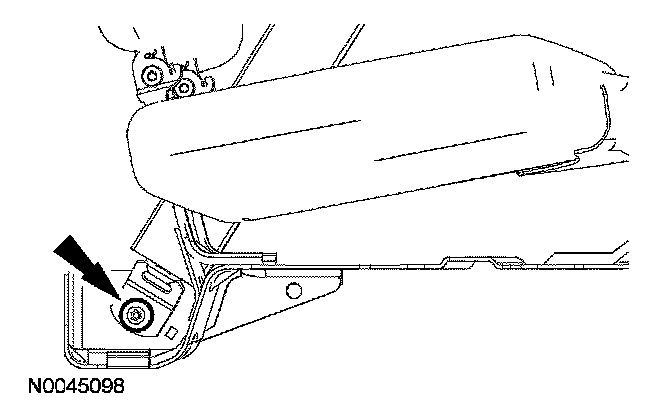

2. Remove the safety belt anchor bolt and safety belt retractor.
- To install, tighten to 40 Nm (30 lb-ft).

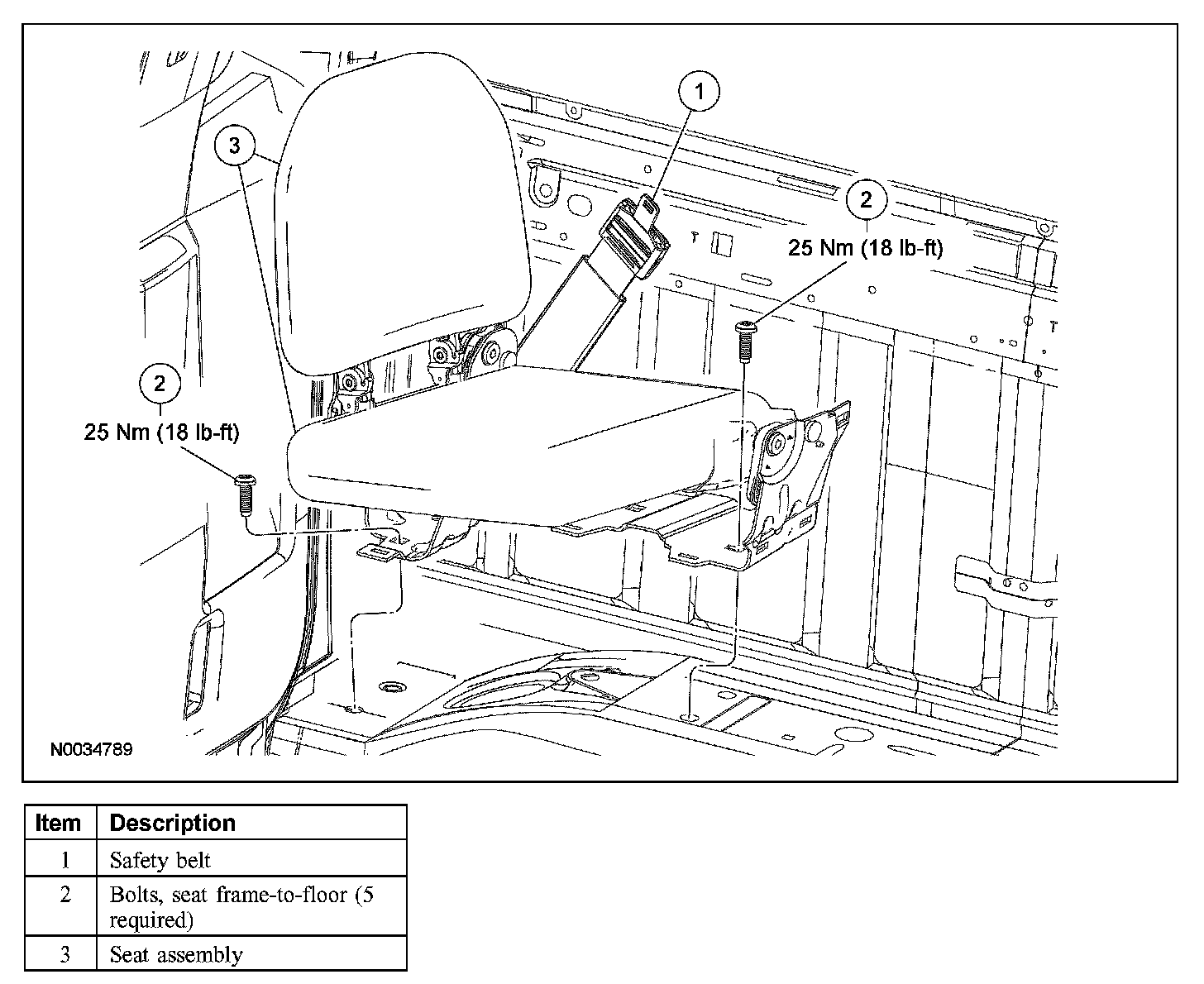

3. Remove the 5 frame-to-floor bolts and remove the rear seat.
- To install, tighten to 25 Nm (18 lb-ft).

4. To install, reverse the removal procedure.
5. Make sure the safety belts and buckles are accessible to the occupants after installation. Verify the safety belt retractor operates without excessive effort or binding.
