Seat - Exploded View, Front

SEAT - EXPLODED VIEW, FRONT

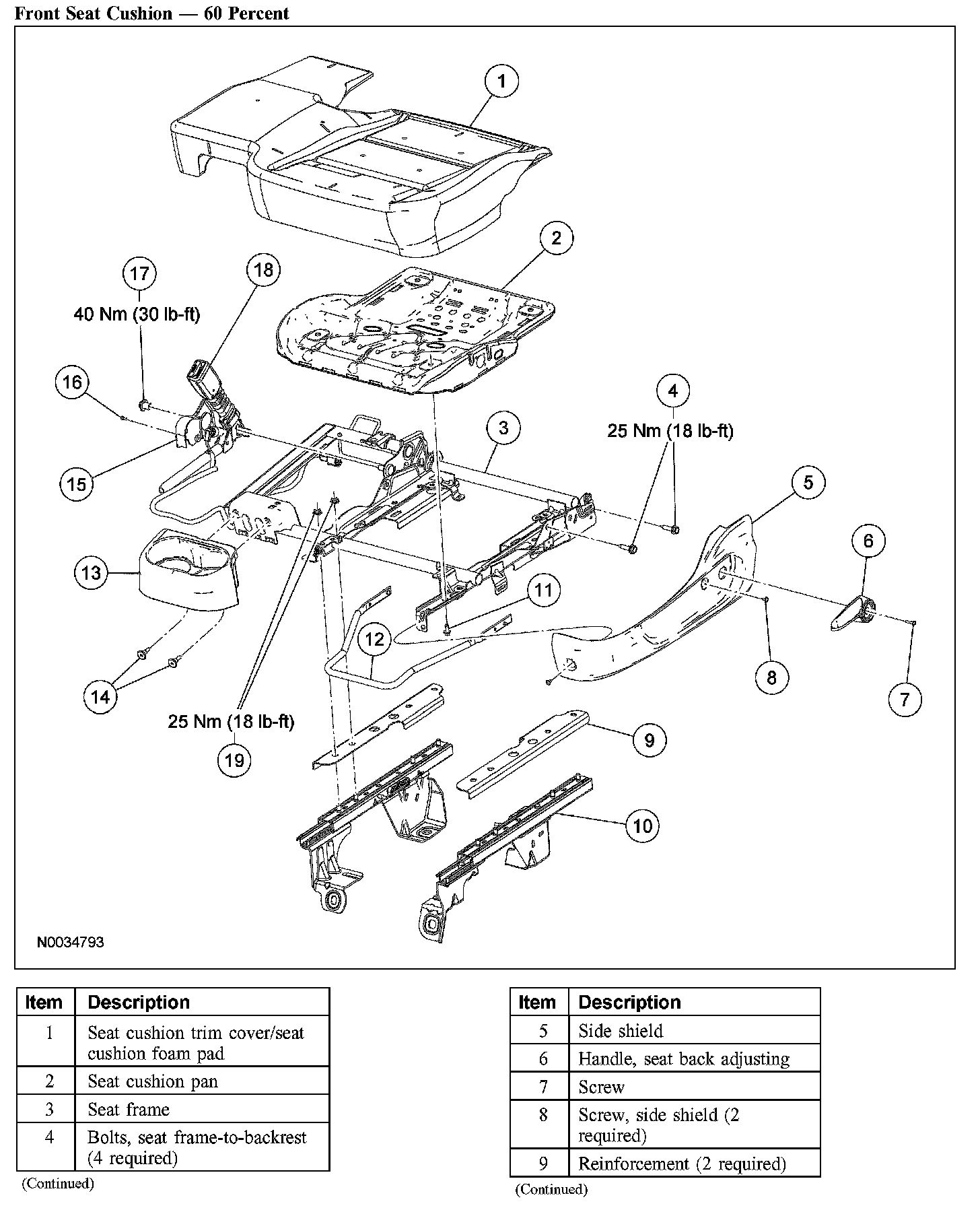

Front Seat Cushion - 60 Percent (Part 1):

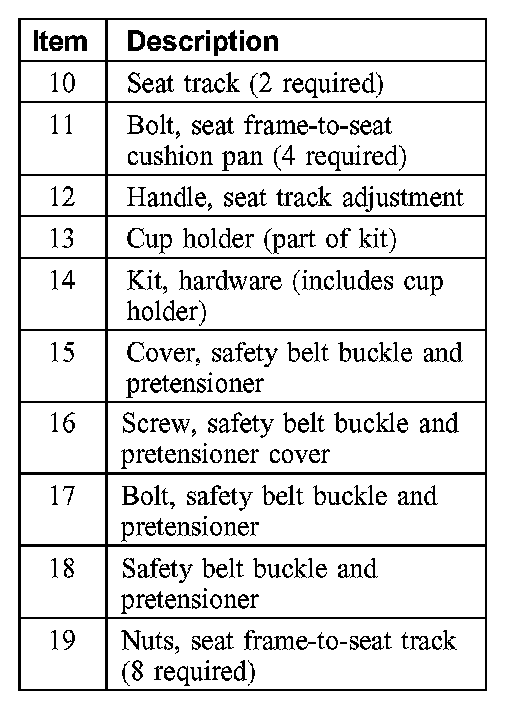

Front Seat Cushion - 60 Percent (Part 2):

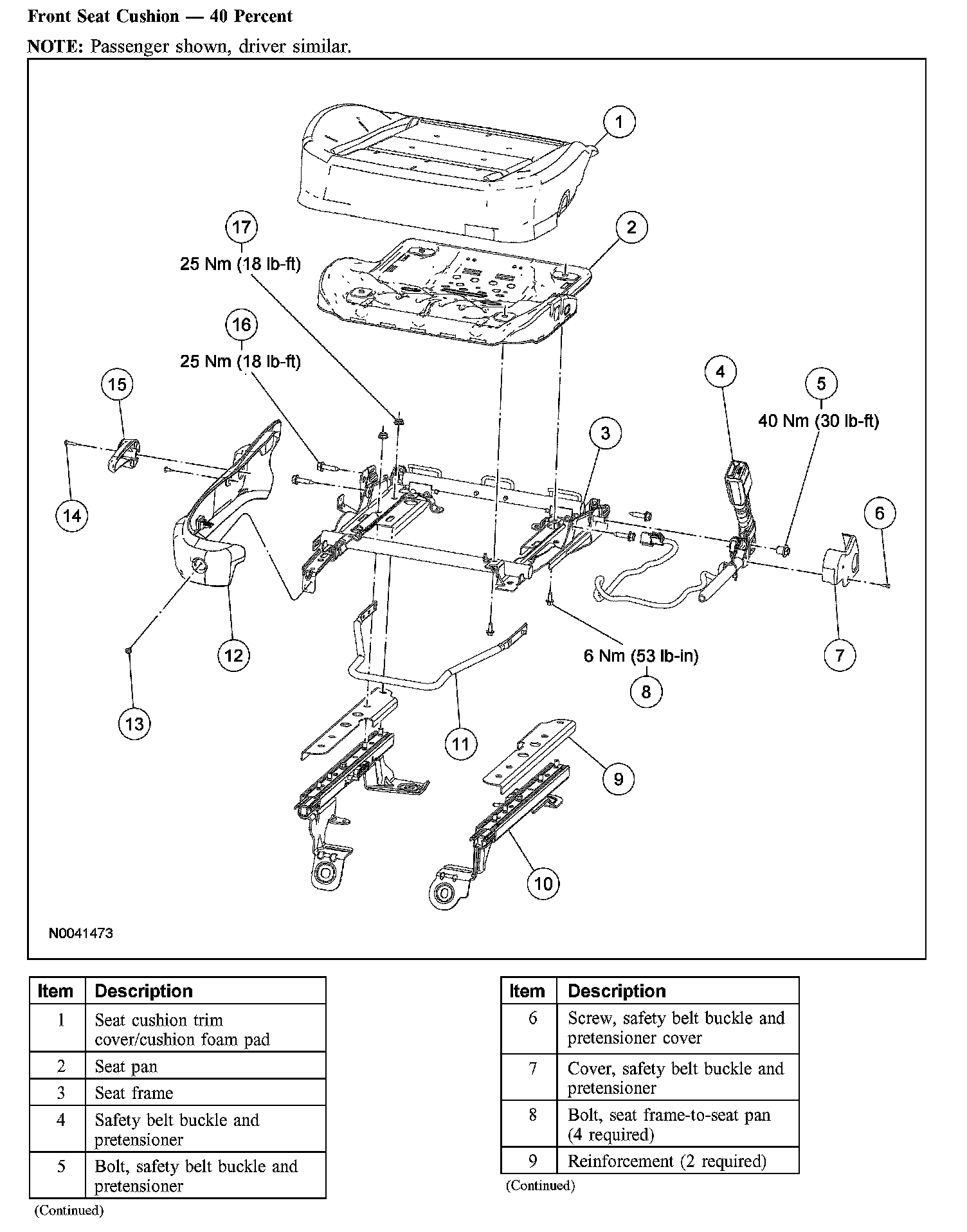

Front Seat Cushion - 40 Percent (Part 1):

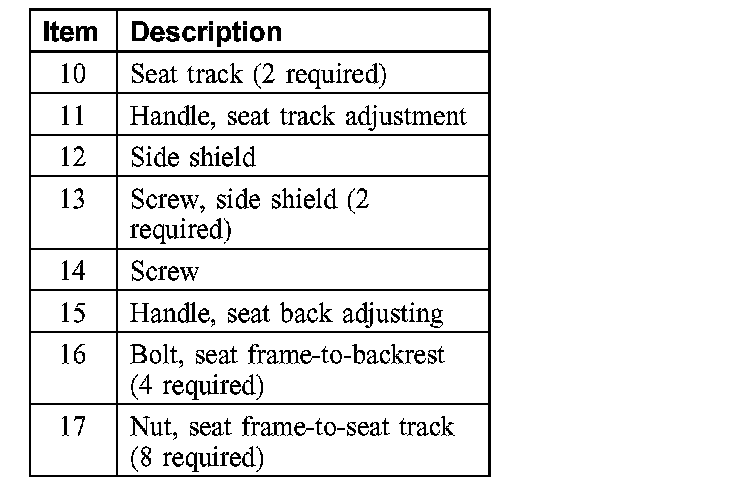

Front Seat Cushion - 40 Percent (Part 2):

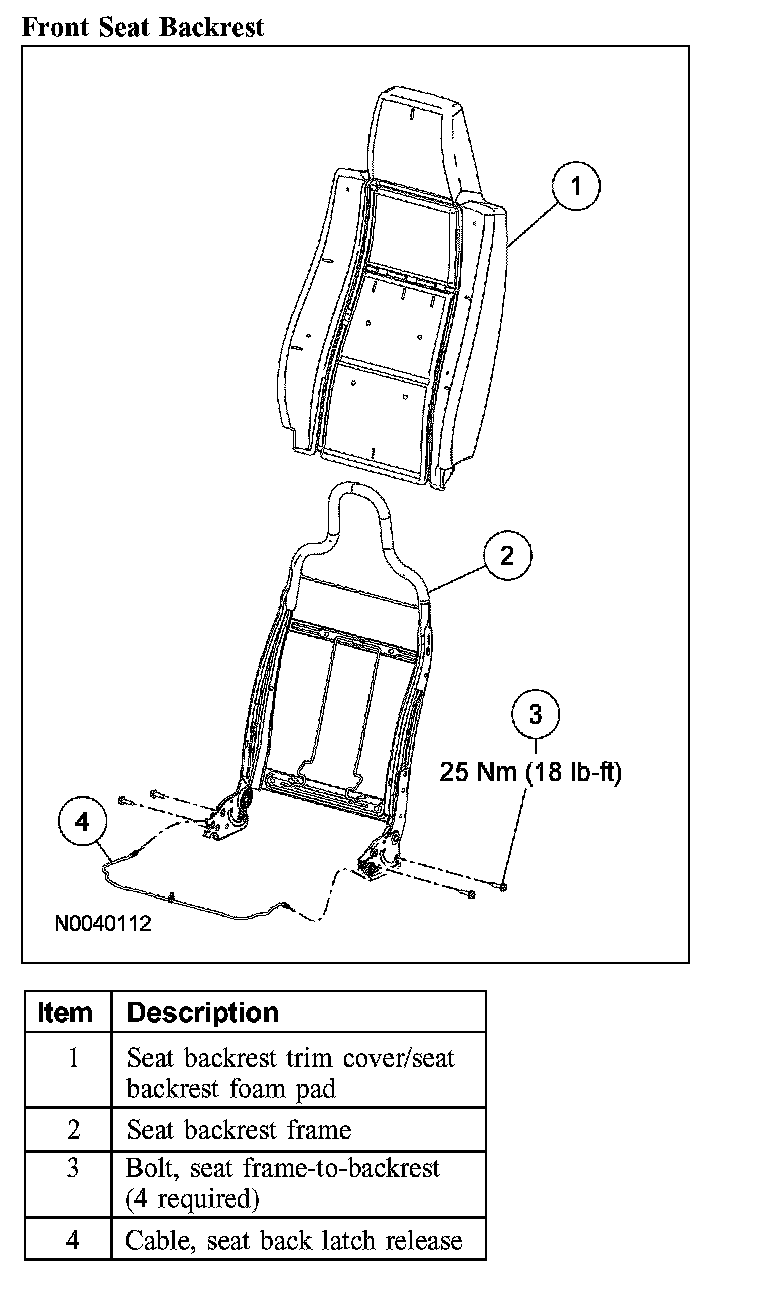

Front Seat Backrest:

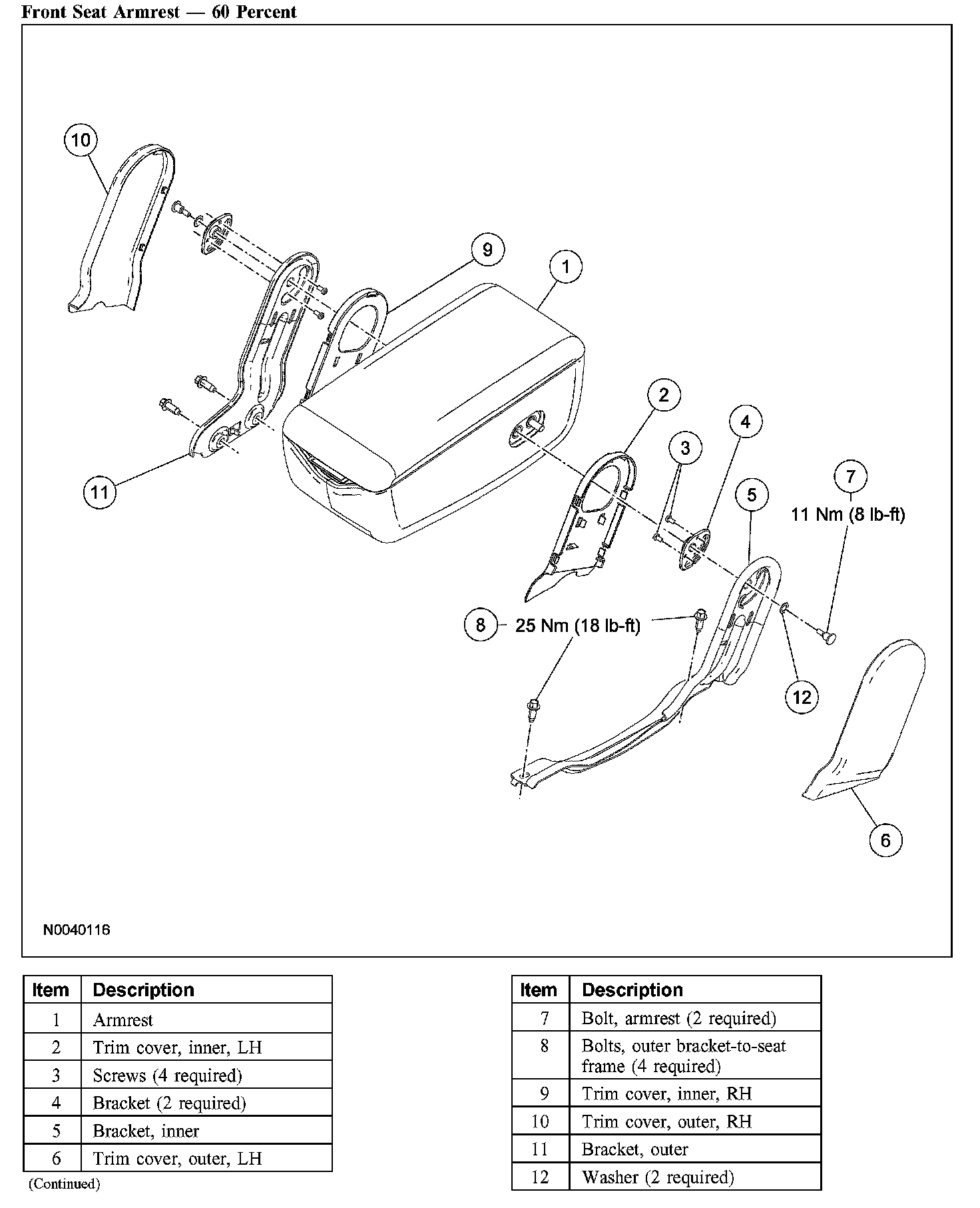

Front Seat Armrest - 60 Percent:

Removal And Installation
1. For additional information, refer to the procedures.
