Home >> Ford >> 2006 >> Ranger 4WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> C602-C1055 >> C1004

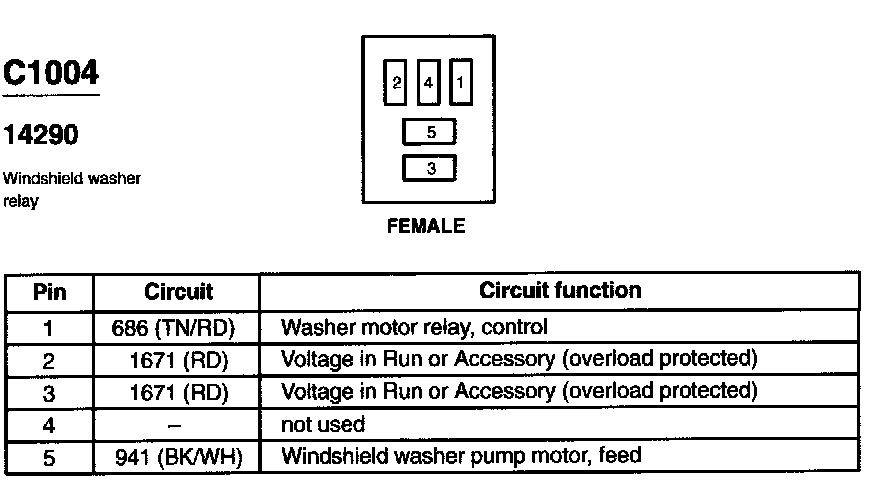

C1004

C1004:
