Ranger 4WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Clutch Switch
>>
Clutch Pedal Position Switch
Clutch Pedal Position Switch

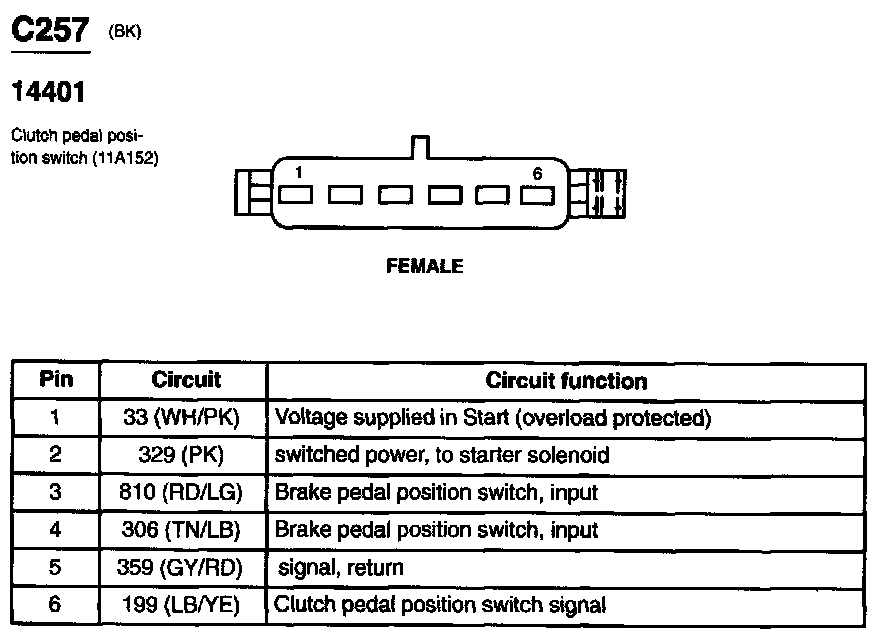

C257:
