Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2006
>>
Ranger 4WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>

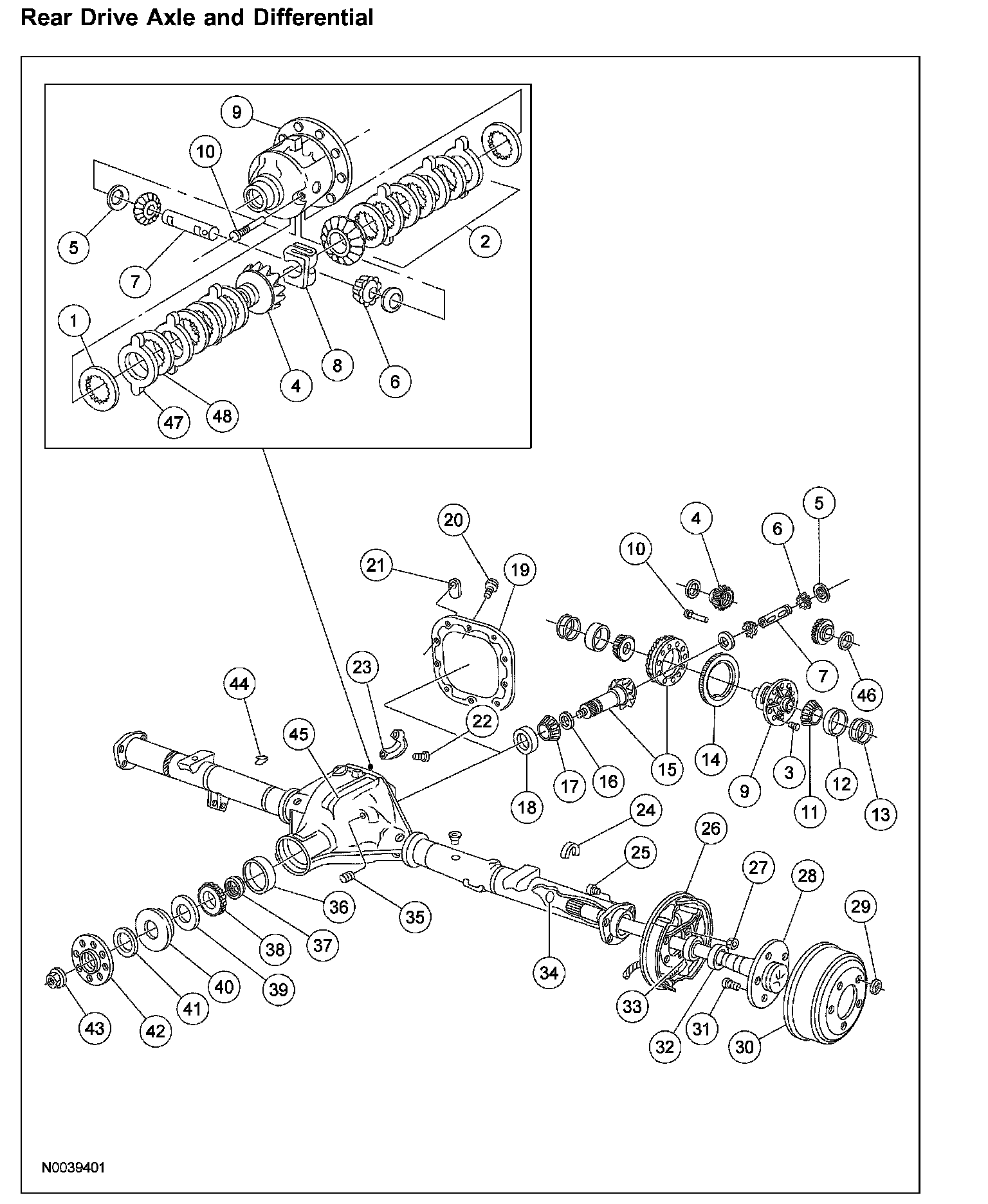

Rear Drive Axle/Differential - Ford 7.5-Inch
Rear Drive Axle/Differential - Ford 7.5-Inch
