Drive/Propeller Shaft

Driveshaft - Exploded View

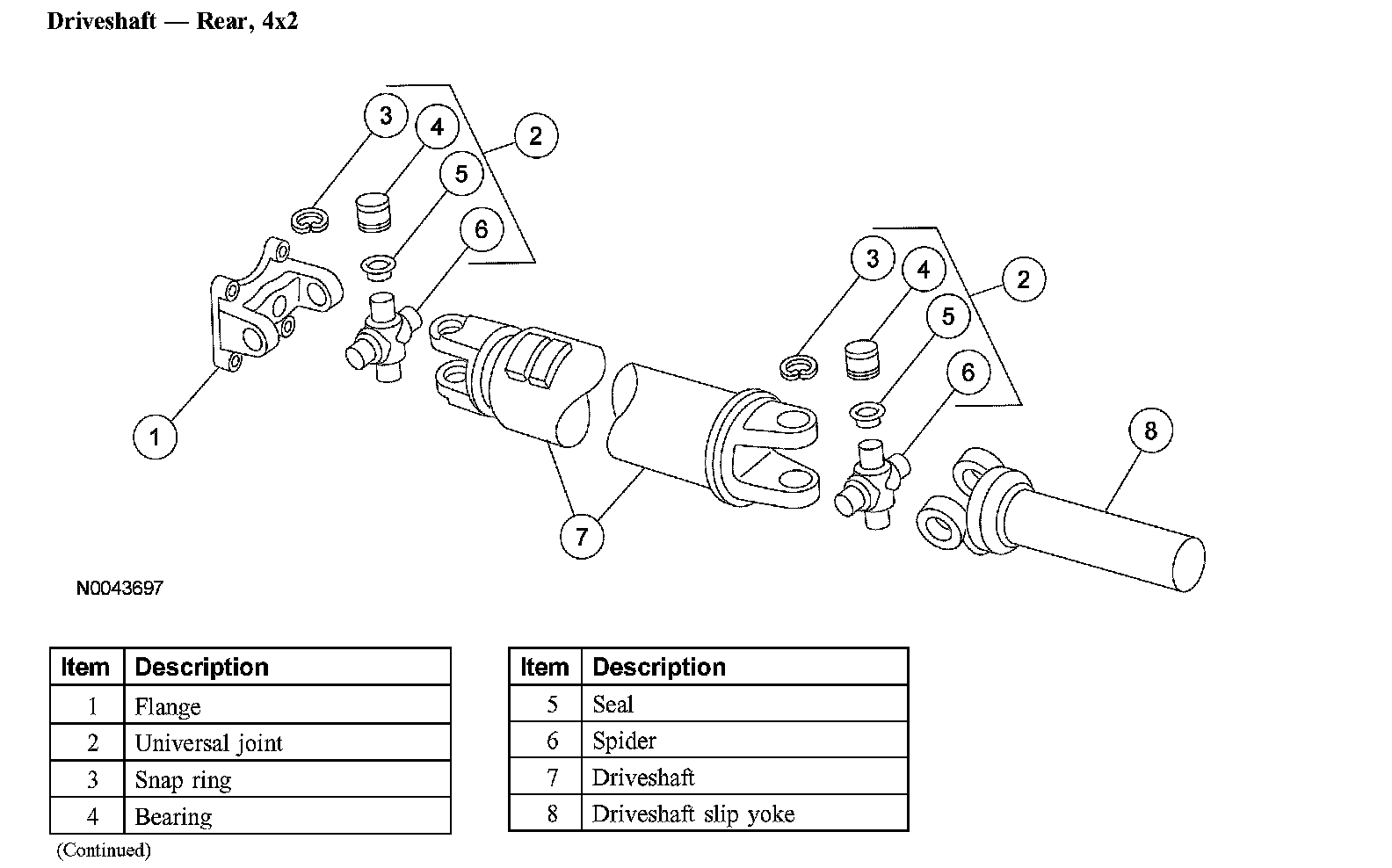

Driveshaft - Rear, 4x2:

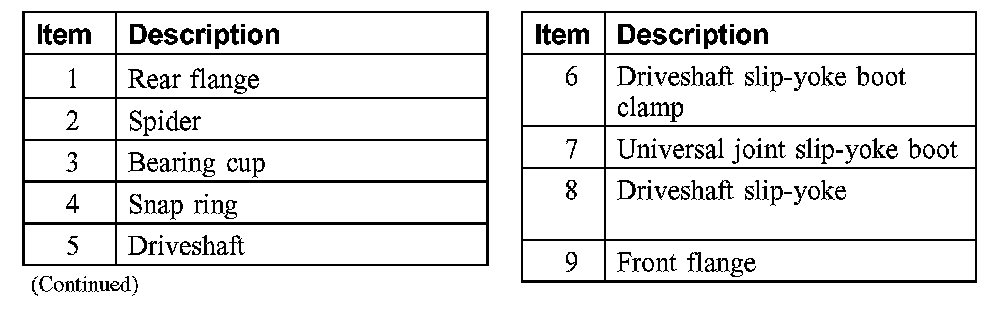

Driveshaft - Rear, 4x4:

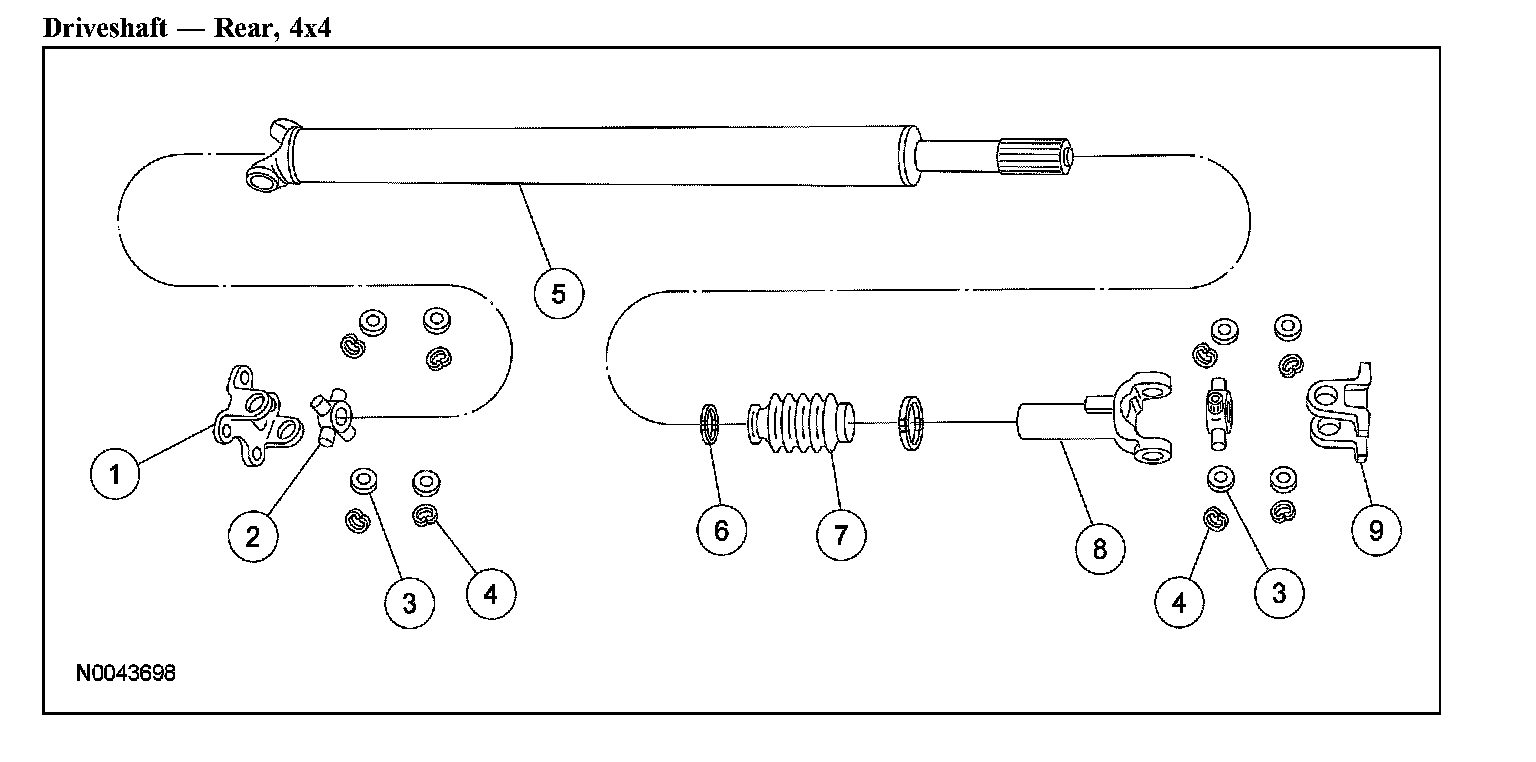

Driveshaft - Rear, 4x4:

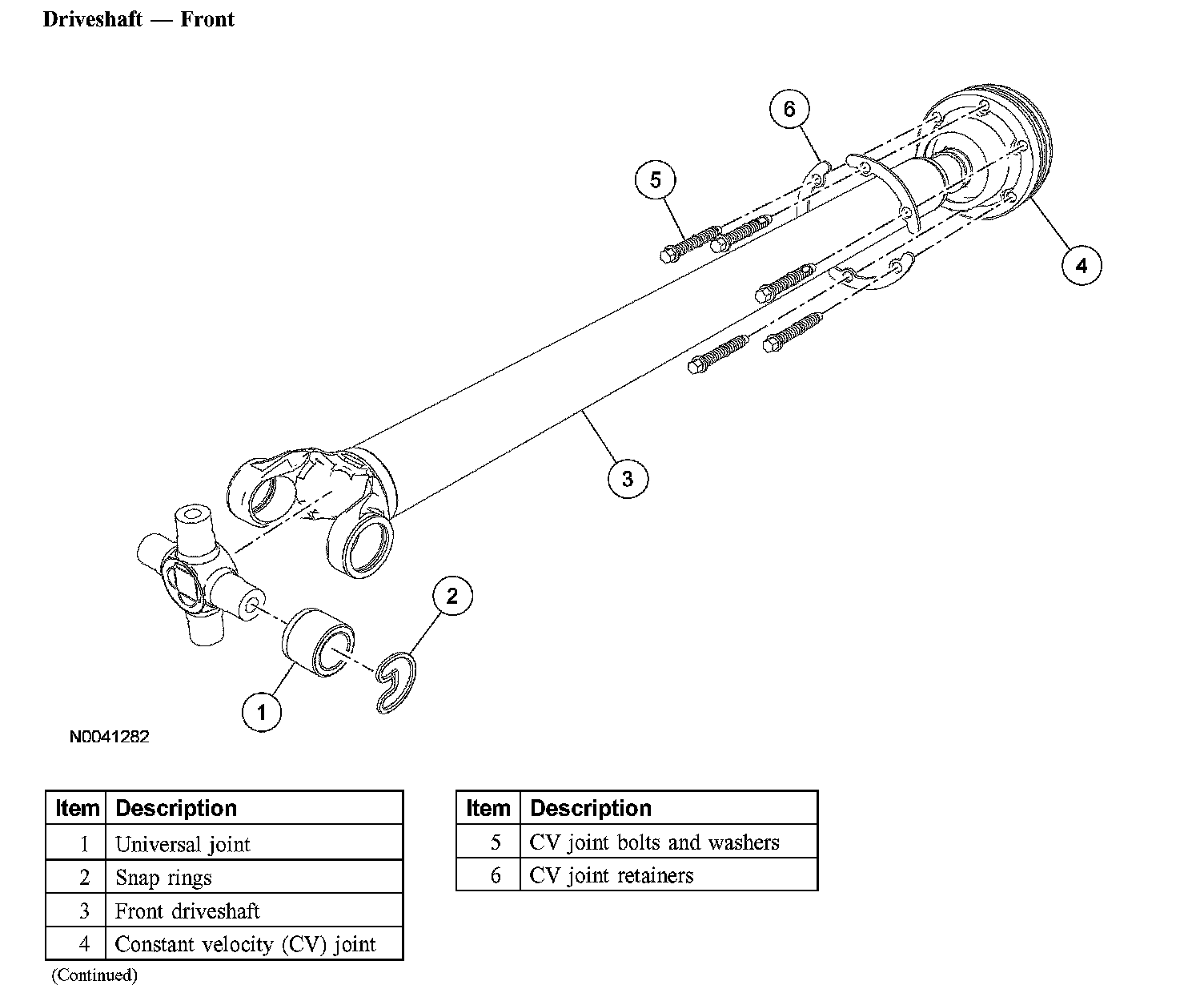

Driveshaft - Front:





1. The above graphics show driveshaft complete disassembly.
