Test E: The Speedometer/Odometer Is Inoperative

PINPOINT TEST E: THE SPEEDOMETER/ODOMETER IS INOPERATIVE

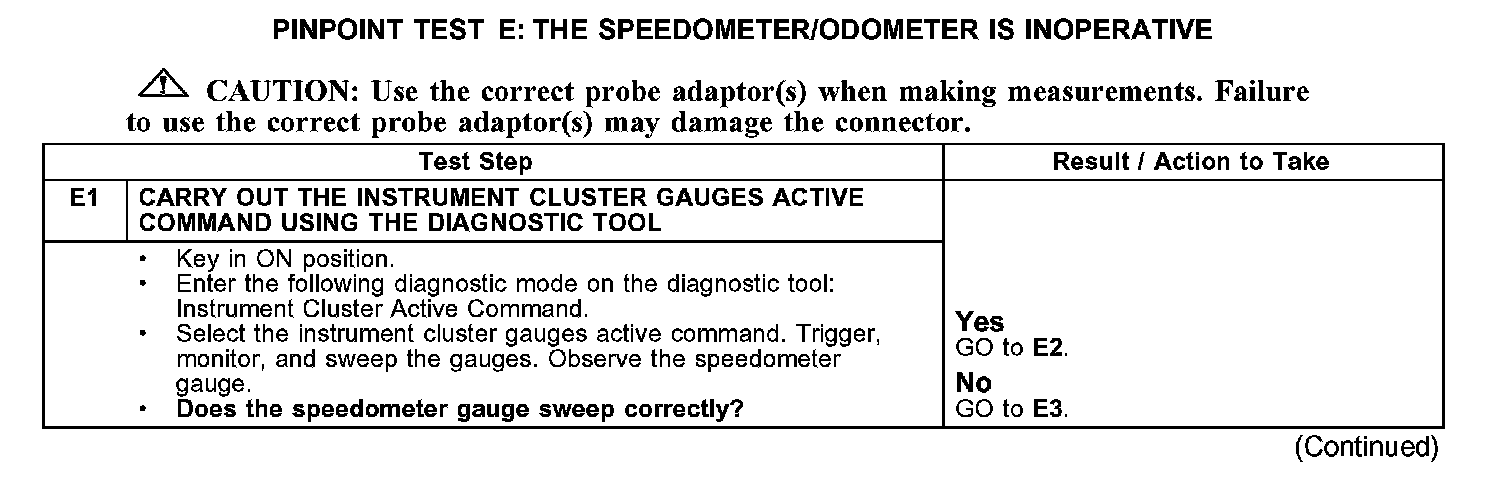

E1:

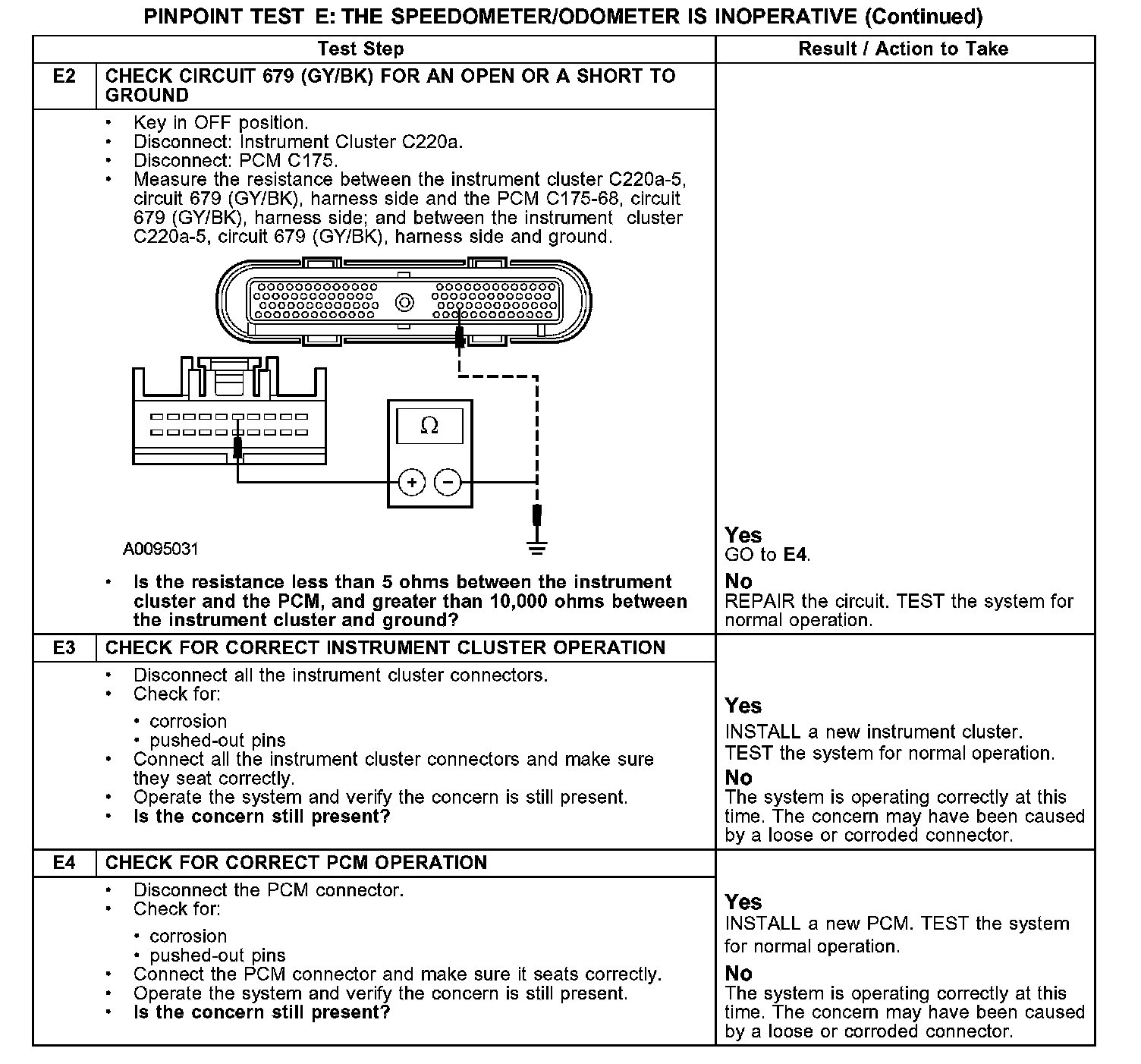

E2-E4:

Normal Operation
The speedometer is controlled by a signal sent from the powertrain control module (PCM) to the instrument cluster through circuit 679 (GY/BK). The instrument cluster interprets the signal sent from the PCM and commands the speedometer to sweep to the correct reading.

Possible Causes
- circuit 679 (GY/BK) open or short to ground
- instrument cluster
- PCM
