Test B: The Headlamp On Warning Chime Does Not Operate Correctly

PINPOINT TEST B: THE HEADLAMP ON WARNING CHIME DOES NOT OPERATE CORRECTLY

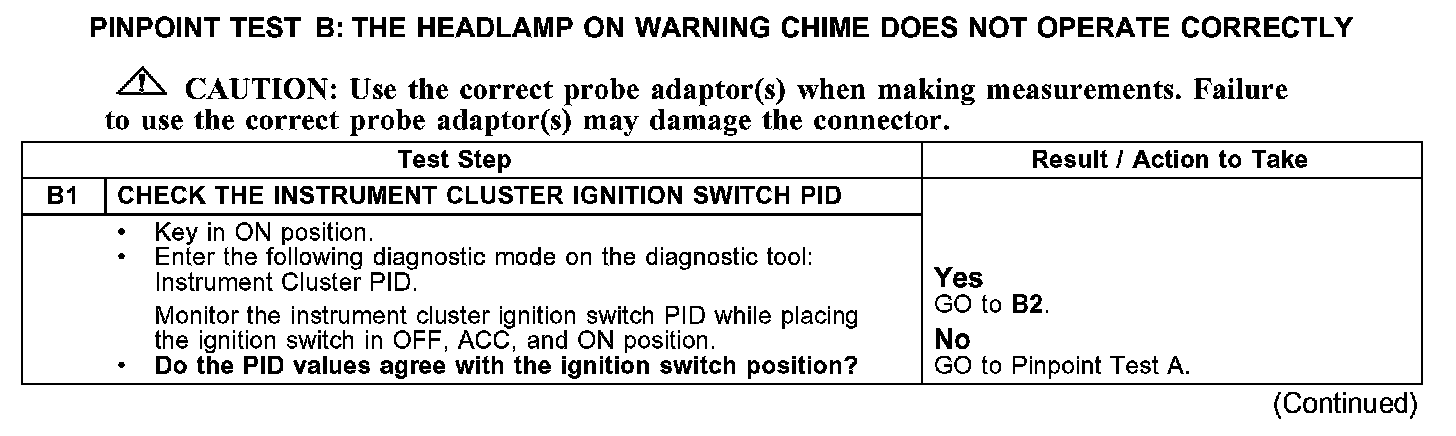

B1:

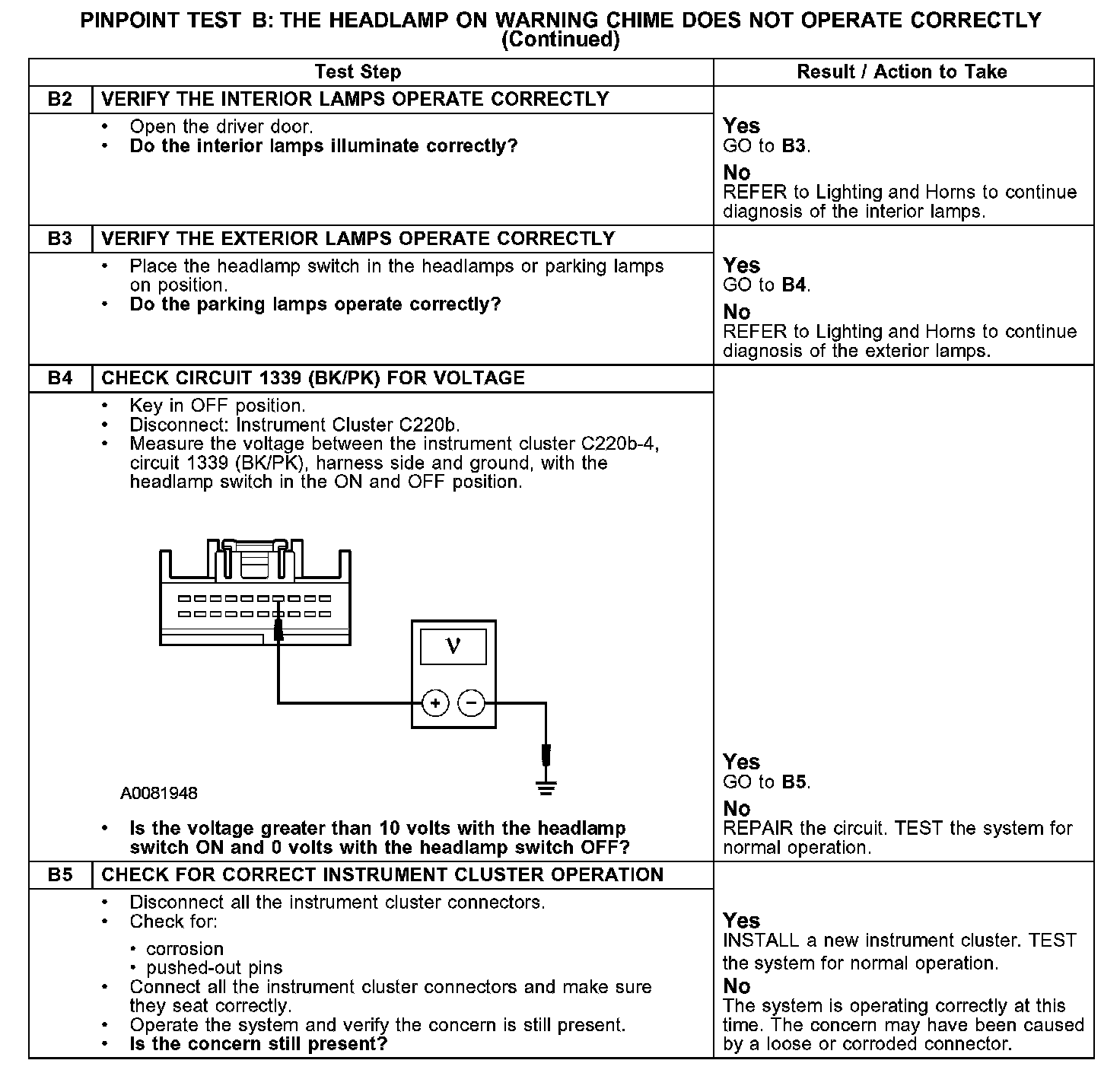

B2-B5:

Normal Operation
The headlamp on warning chime alerts the driver that the headlamps or parking lamps are on, the key is not in the ignition lock cylinder, and the driver door is opened. The instrument cluster receives a signal from the park lamp relay through circuit 1339 (BK/PK) indicating the headlamps are on.

Possible Causes
- circuit 1339 (BK/PK) open
- instrument cluster
