Air Cleaner Housing: Service and Repair

AIR CLEANER

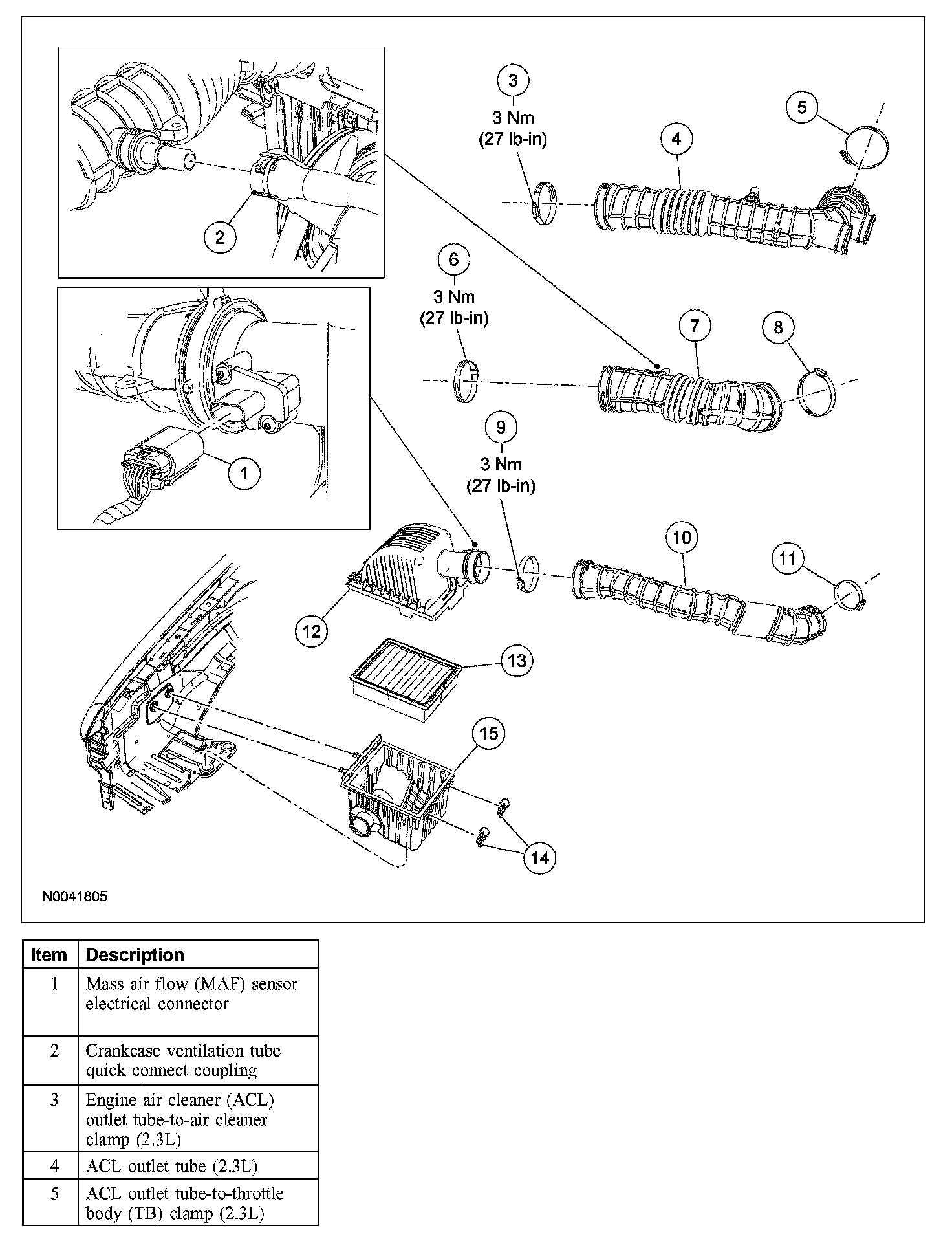

Part 1:

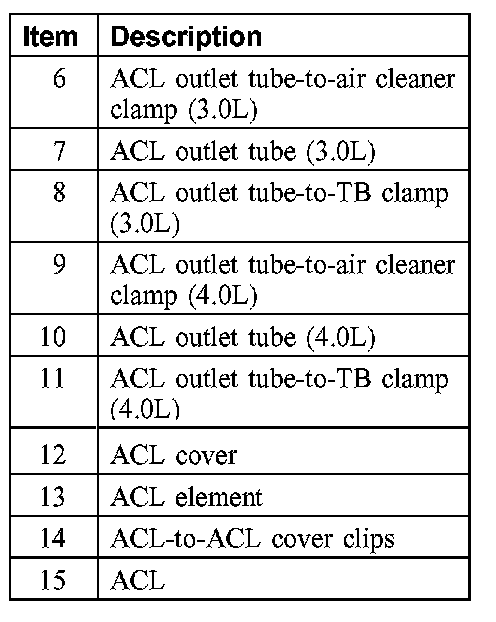

Part 2:






Exploded View

Removal and Installation
1. Loosen the clamp and disconnect the engine air cleaner (ACL) outlet pipe from the air cleaner outlet
- To install, tighten to 3 Nm (27 lb-in).

2. Disconnect the mass air flow (MAF) sensor electrical connector.







3. NOTE: Pry the ACL from the base support bracket.

Remove the ACL assembly.

4. NOTE: Clean the engine air cleaner with a dry, clean cloth.

To install, reverse the removal procedure.
