Wheel Hub: Service and Repair

Wheel Hub

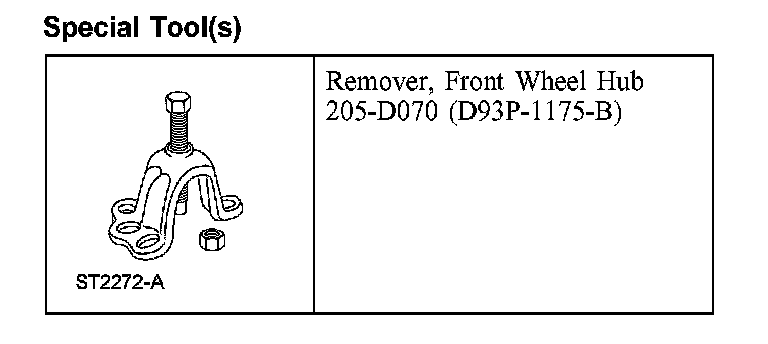

Special Tool(s):

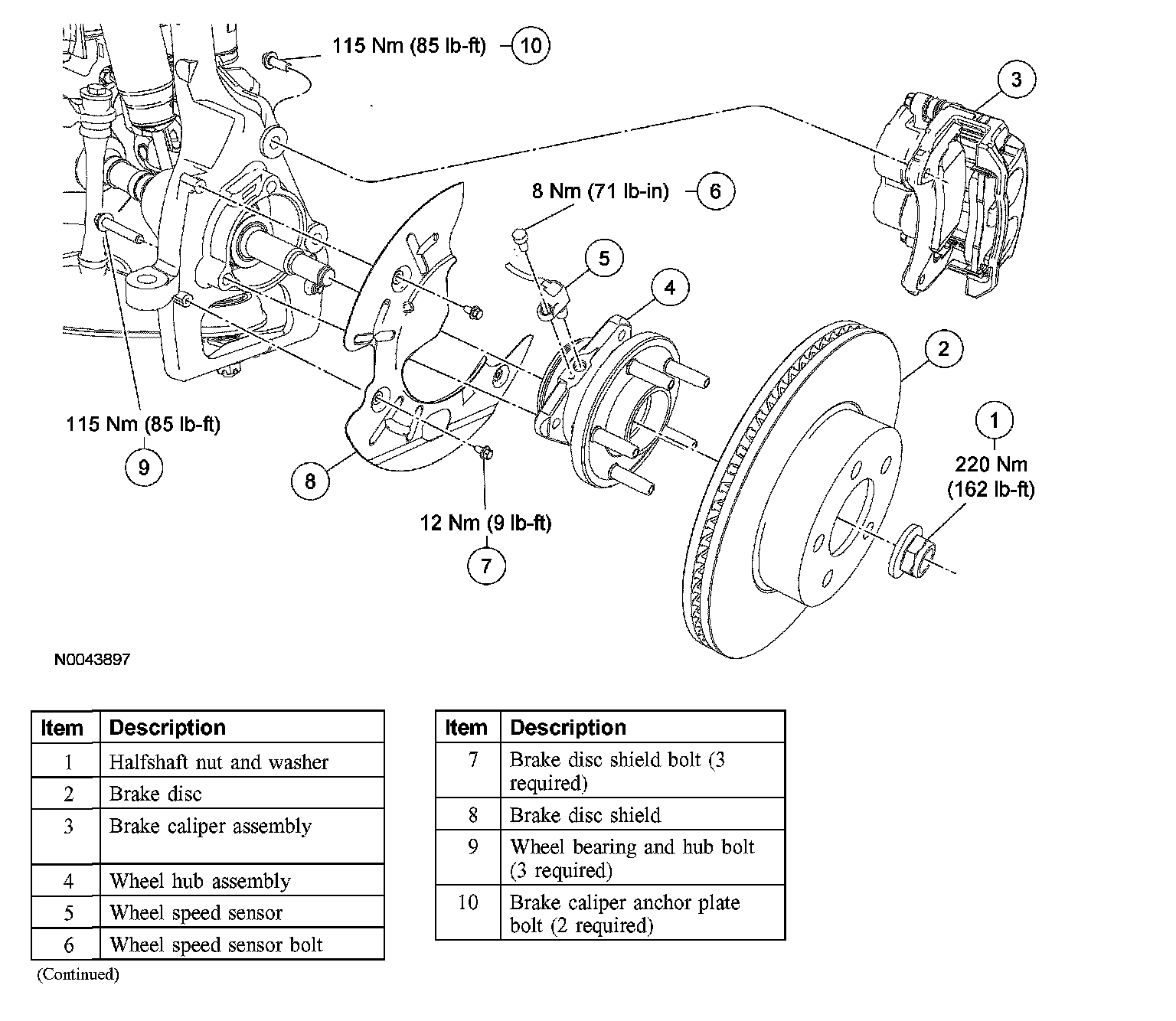

Removal and Installation

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove and discard the halfshaft nut and washer.
^ To install, tighten to 220 Nm (162 ft. lbs.).





3. CAUTION: Do not use a hammer to separate the outboard CV joint from the wheel bearing and hub. Damage to the outboard CV threads and to internal components may result.

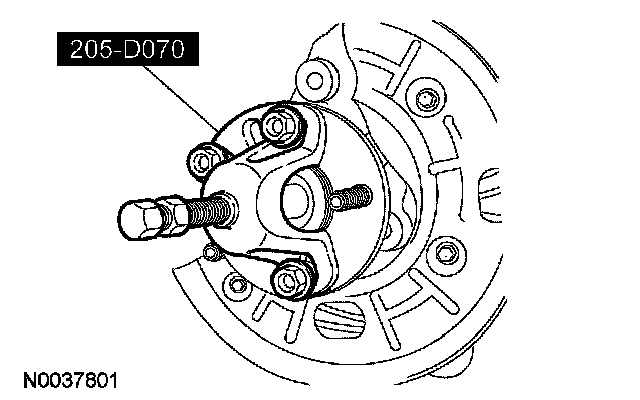

Using the special tool, separate the outboard CV joint from the wheel bearing and hub.
4. Remove the bolt and detach the wheel speed sensor from the wheel hub.
^ To install, tighten to 8 Nm (71 inch lbs.).

5. CAUTION: Do not allow the caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

Remove the bolts and position the caliper, pads and anchor plate assembly aside.
^ Support the caliper and anchor plate assembly using mechanic's wire.
^ To install, tighten to 115 Nm (85 ft. lbs.).
6. Remove the brake disc.
7. Remove and discard the 3 brake disc shield bolts and remove the shield.
^ To install, tighten to 12 Nm (9 ft. lbs.).

8. CAUTION: Do not overextend the CV joint and boots when removing the wheel bearing and hub assembly.

Remove and discard the 3 bolts, and remove the wheel bearing and hub.
^ To install, tighten to 115 Nm (85 ft. lbs.).
9. To install, reverse the removal procedure.
