Idle Speed/Throttle Actuator - Electronic: Service and Repair

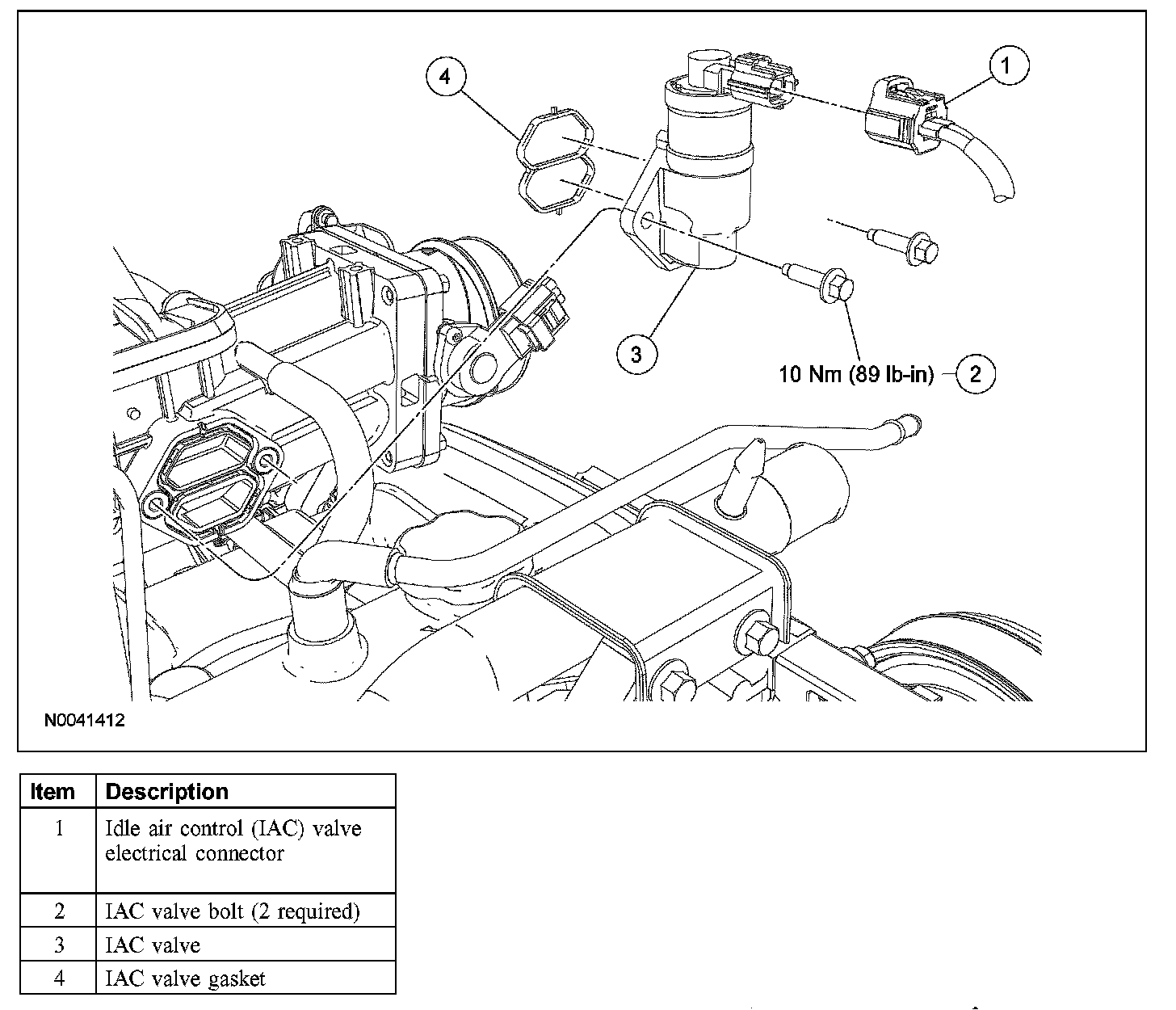

IDLE AIR CONTROL (IAC) VALVE







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the idle air control (IAC) valve electrical connector.
3. Remove the 2 bolts, the IAC valve and discard the gasket.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
- Install a new gasket.
