Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) SENSOR

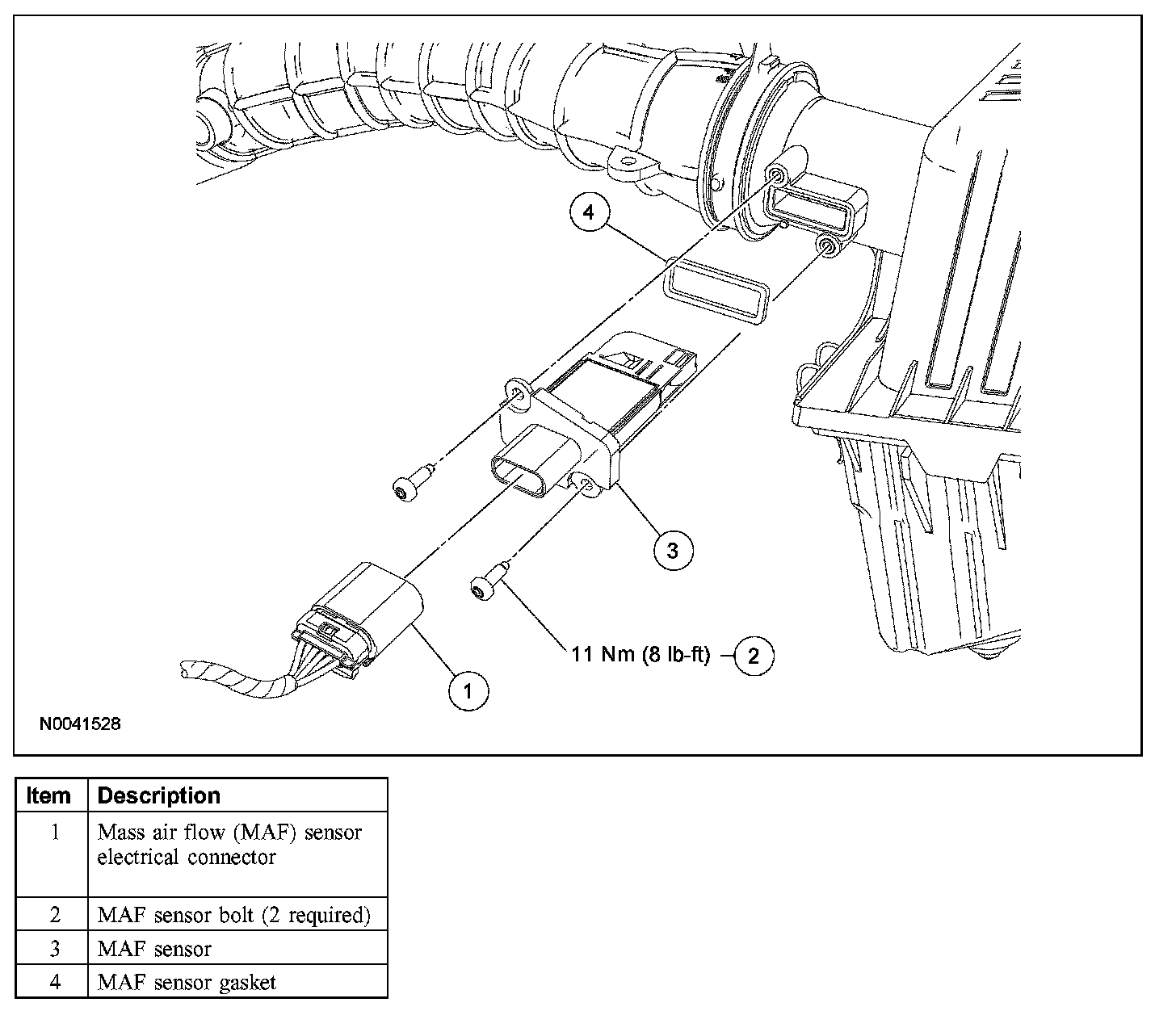

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the mass air flow (MAF) sensor electrical connector.
3. Remove the 2 bolts, the MAF sensor and discard the gasket.
- To install, tighten to 11 Nm (8 lb-ft).

4. CAUTION: Do not tamper with the MAF sensing elements located in the airflow bypass. Tampering may result in failure.

NOTE: The MAF sensor module and body are calibrated and installed as a unit.

To install, reverse the removal procedure.
- Install a new gasket.
