Removal and Installation

SPARK PLUG







Exploded View

Removal and Installation
1. Remove the spark plug wire from the spark plug.

2. NOTE: Remove foreign material with compressed air.

Remove the spark plug.
- To install, tighten to 12 Nm (9 lb-ft).

3. Inspect the spark plugs.

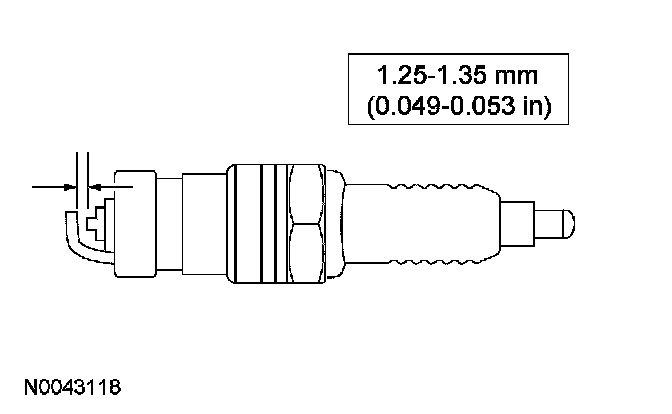

4. Check and adjust the spark plug gap as necessary.
5. To install, reverse the removal procedure.
