Inertia Fuel Shutoff Switch: Service and Repair

INERTIA FUEL SHUTOFF (IFS) SWITCH

Removal and Installation







1. Disconnect the battery ground cable.

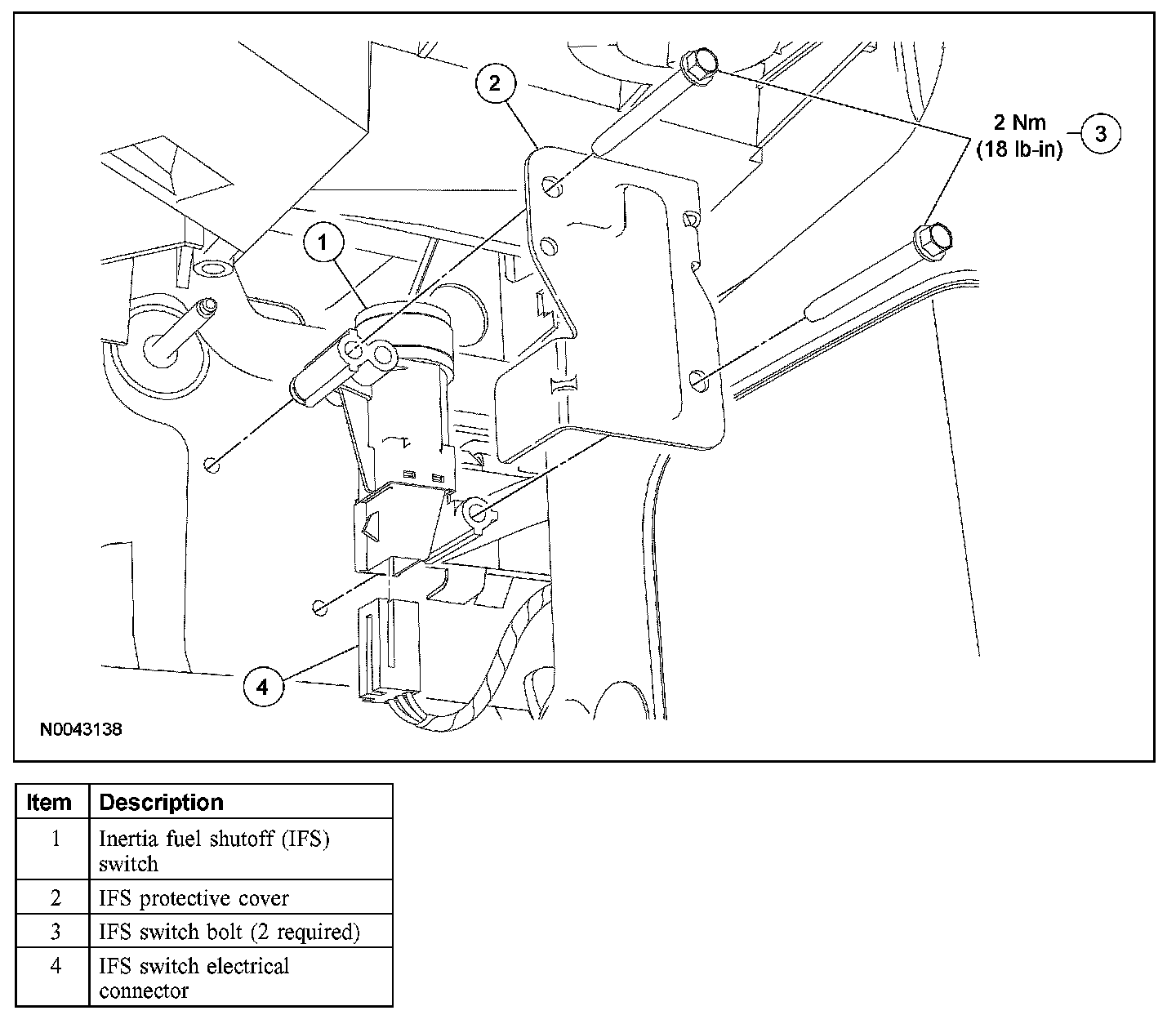

2. NOTE: The inertia fuel shutoff (IFS) switch is located on the RH toe board.

Remove the bolts, IFS switch protective cover and IFS switch.
- To install, tighten to 2 Nm (18 lb in).

3. Disconnect the IFS switch electrical connector.
4. To install, reverse the removal procedure.
