Transmission Mode Switch: Service and Repair
Transmission Control Switch
Removal and Installation

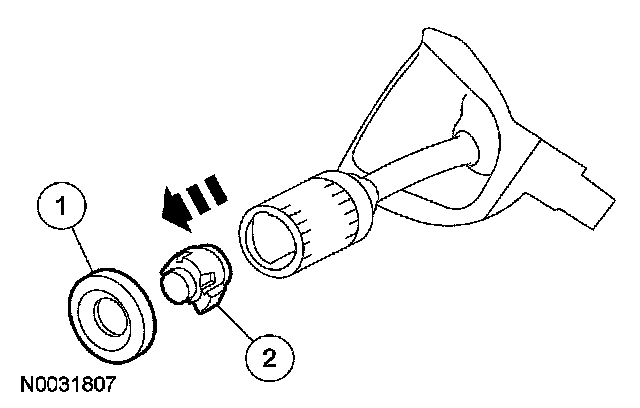

1.
Remove the transmission control (TC) switch.
1
Remove the TC switch cover.
2
Remove the TC switch.
2.
To install, reverse the removal procedure.
