Windshield Washer Switch: Service and Repair

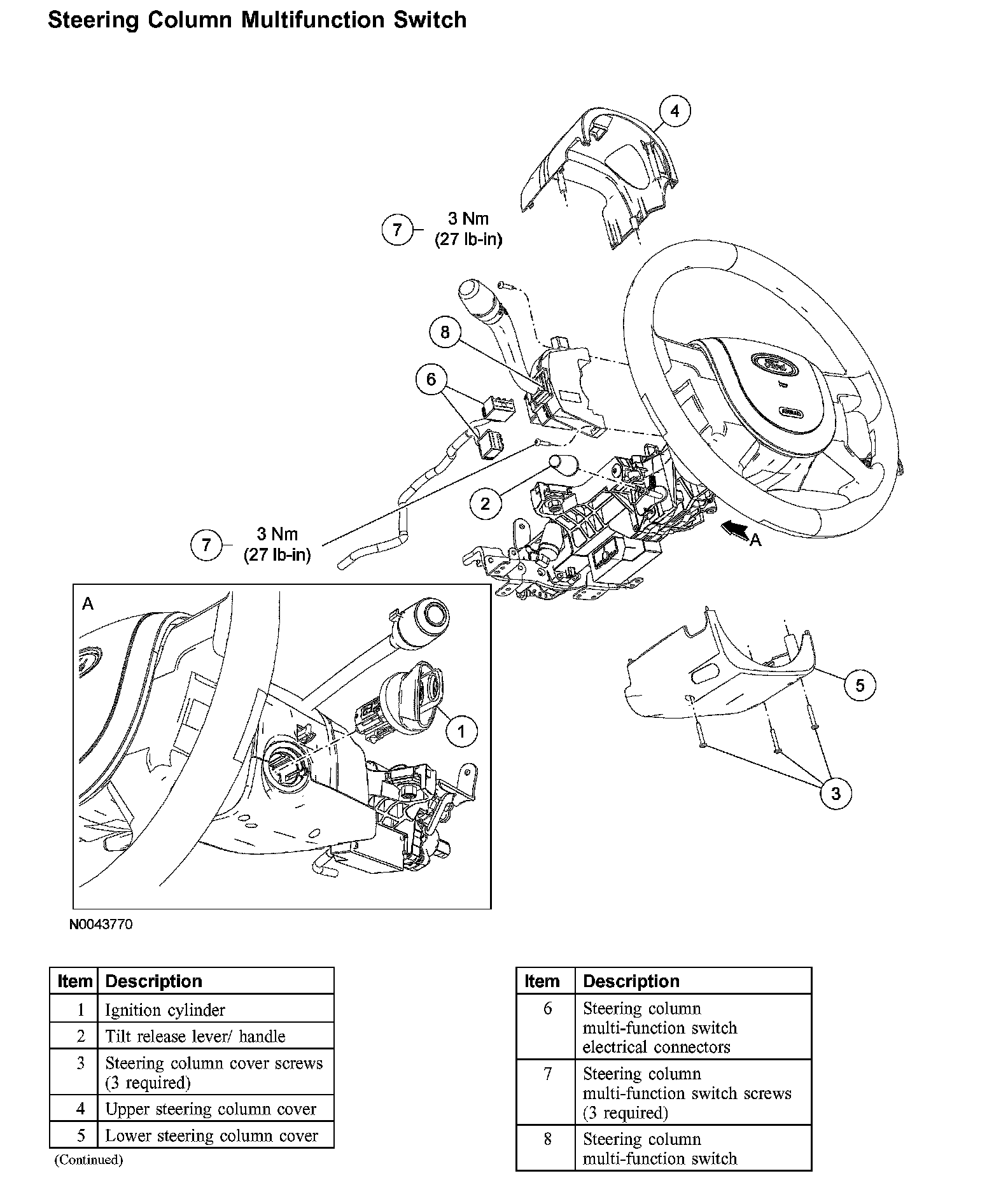

Steering Column Multifunction Switch





Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the ignition switch lock cylinder.
1 Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.
2 Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.
3. If equipped, remove the tilt release lever/handle.
4. Remove the 3 steering column cover screws and upper and lower steering column shrouds.
5. Disconnect the multi-function switch electrical connectors.
6. Remove the 2 multi-function switch screws and the multi-function switch.
^ To install, tighten to 3 Nm (27 inch lbs.).
7. To install, reverse the removal procedure.
