Test D: Electronic Pressure Control (EPC) Solenoid

PINPOINT TEST D: ELECTRONIC PRESSURE CONTROL (EPC) SOLENOID

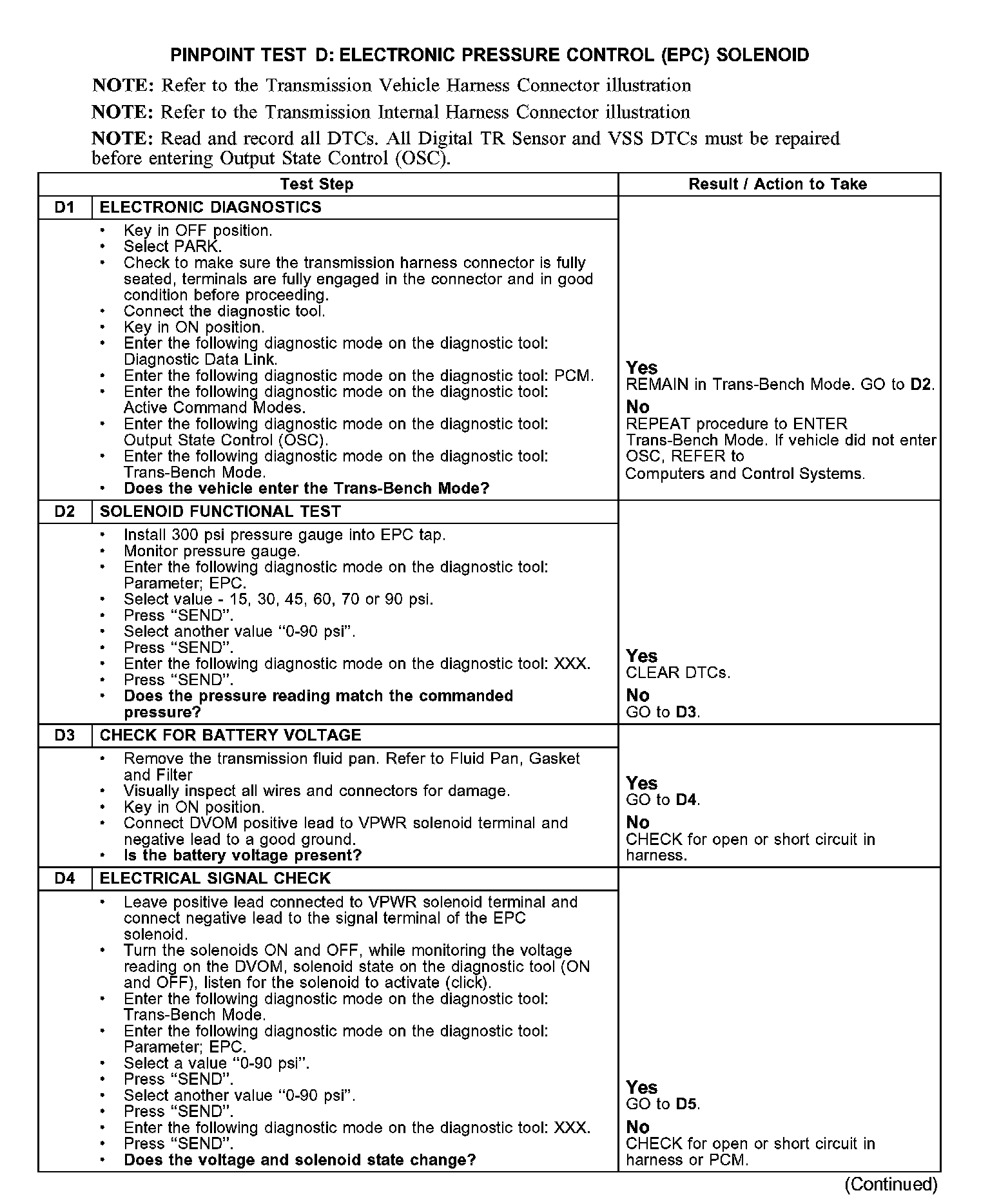

D1-D4:

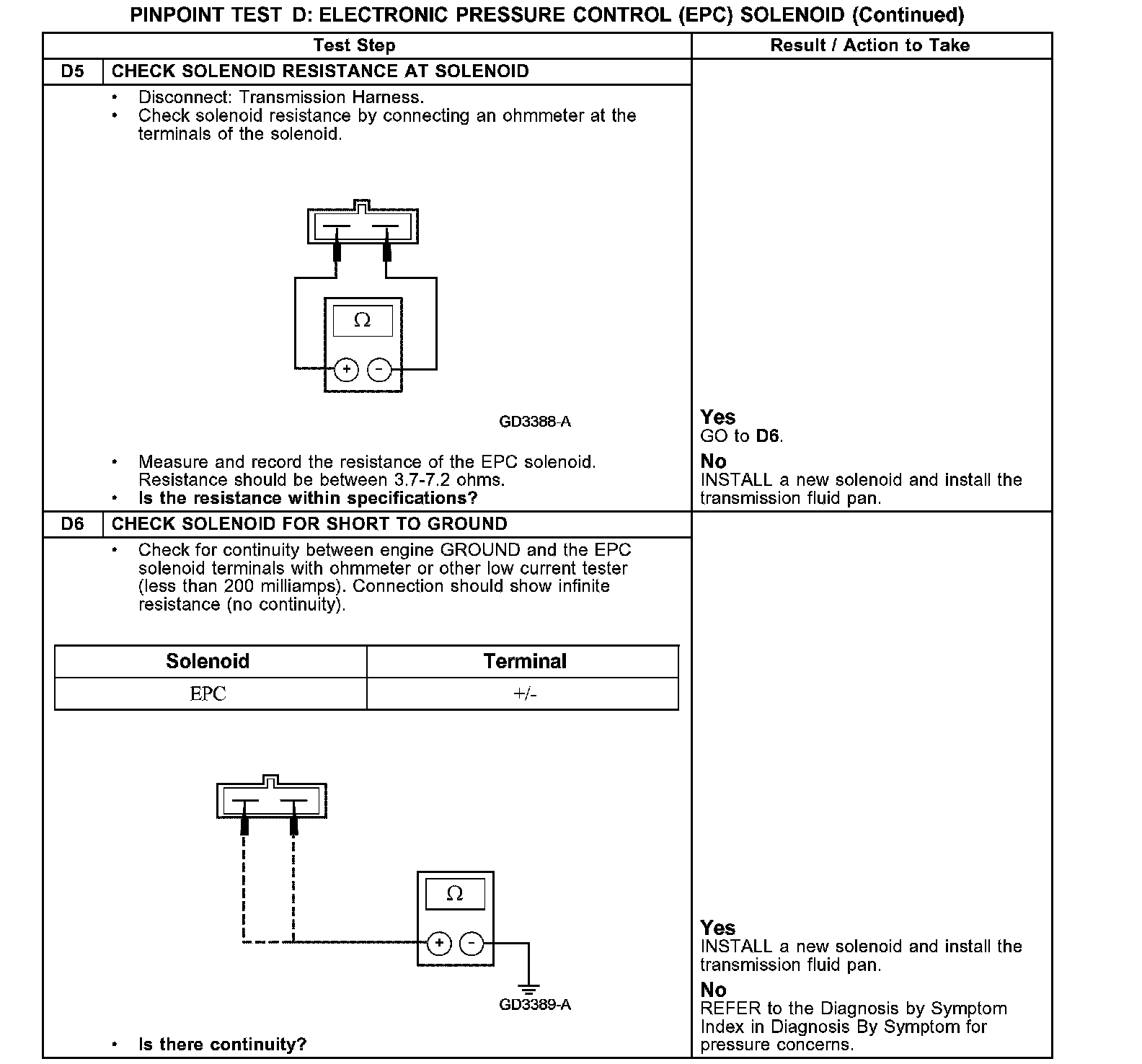

D5-D6:
