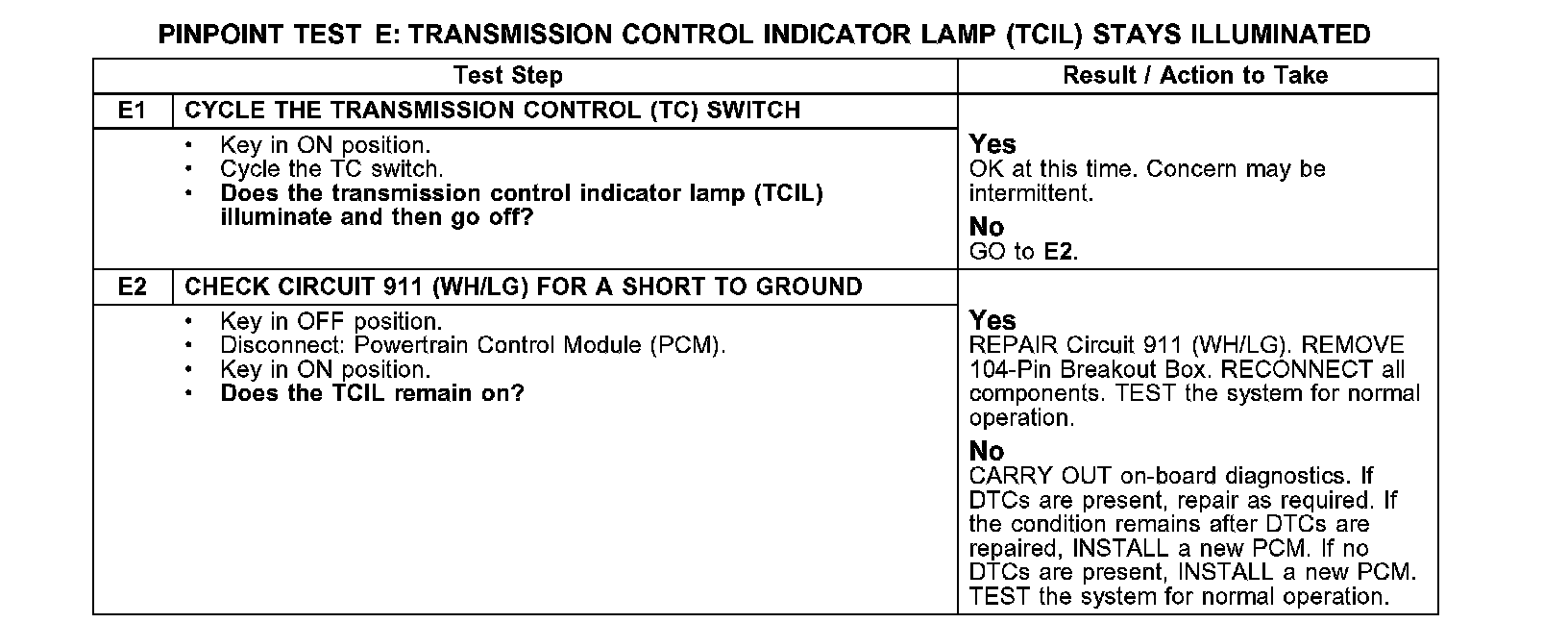

Test E: Transmission Control Indicator Lamp (TCIL) Stays Illuminated
Test E: Transmission Control Indicator Lamp (TCIL) Stays Illuminated
E1-E2:
