240/340, No Clutch Apply

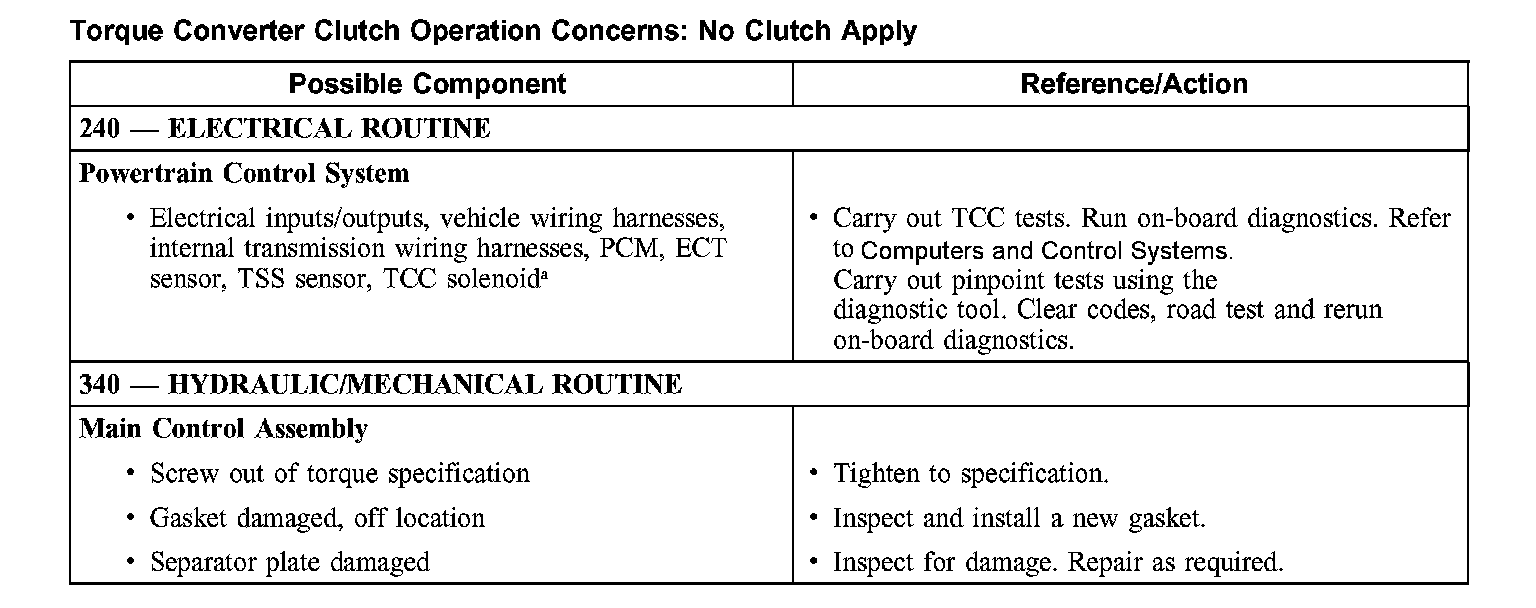

Torque Converter Clutch Operation Concerns: No Clutch Apply

Torque Converter Clutch Operation Concerns: No Clutch Apply (Part 1):




Torque Converter Clutch Operation Concerns: No Clutch Apply (Part 2):
