Transmission Draining and Filling
Transmission Draining and FillingMaterial:

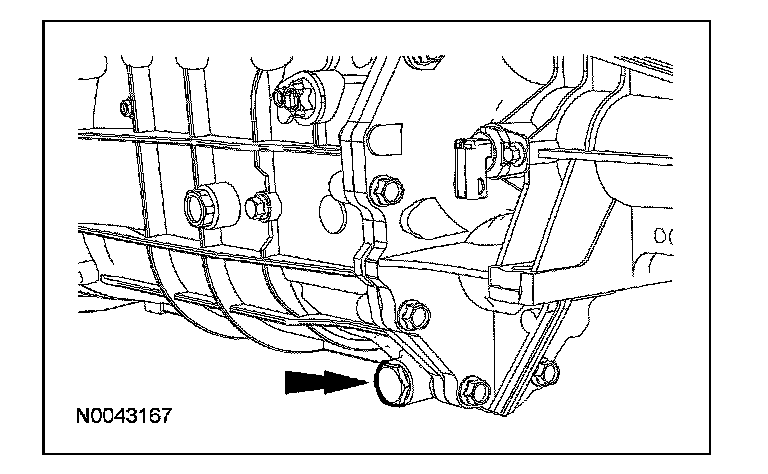

1. Remove the drain plug and drain the transmission.
^ Position a suitable drain pan under the transmission.
2. Clean and install the drain plug.
^ Tighten to 48 Nm (35 ft. lbs.).

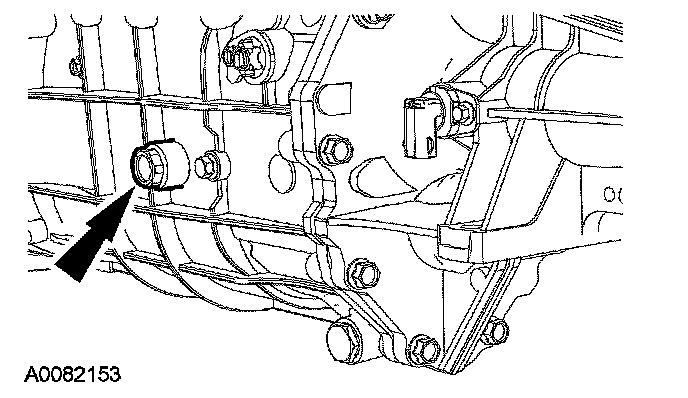

3. NOTE: Before removing, clean the area around the filler plug.
Remove the filler plug.
4. NOTE: Fill the transmission with the vehicle on a level surface.
Using a suitable oil suction gun, fill the transmission to the correct level with the specified fluid. The fluid must be just below the fill plug hole.
^ Transmission capacity is 2.6 liters (2.8 quarts).
5. Install the filler plug.
^ Tighten to 48 Nm (35 ft. lbs.).
