Home >> Ford >> 2006 >> Ranger 4WD L4-2.3L VIN D >> Repair and Diagnosis >> Transmission and Drivetrain >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Transmission Mode Switch >> Locations

Transmission Mode Switch: Locations

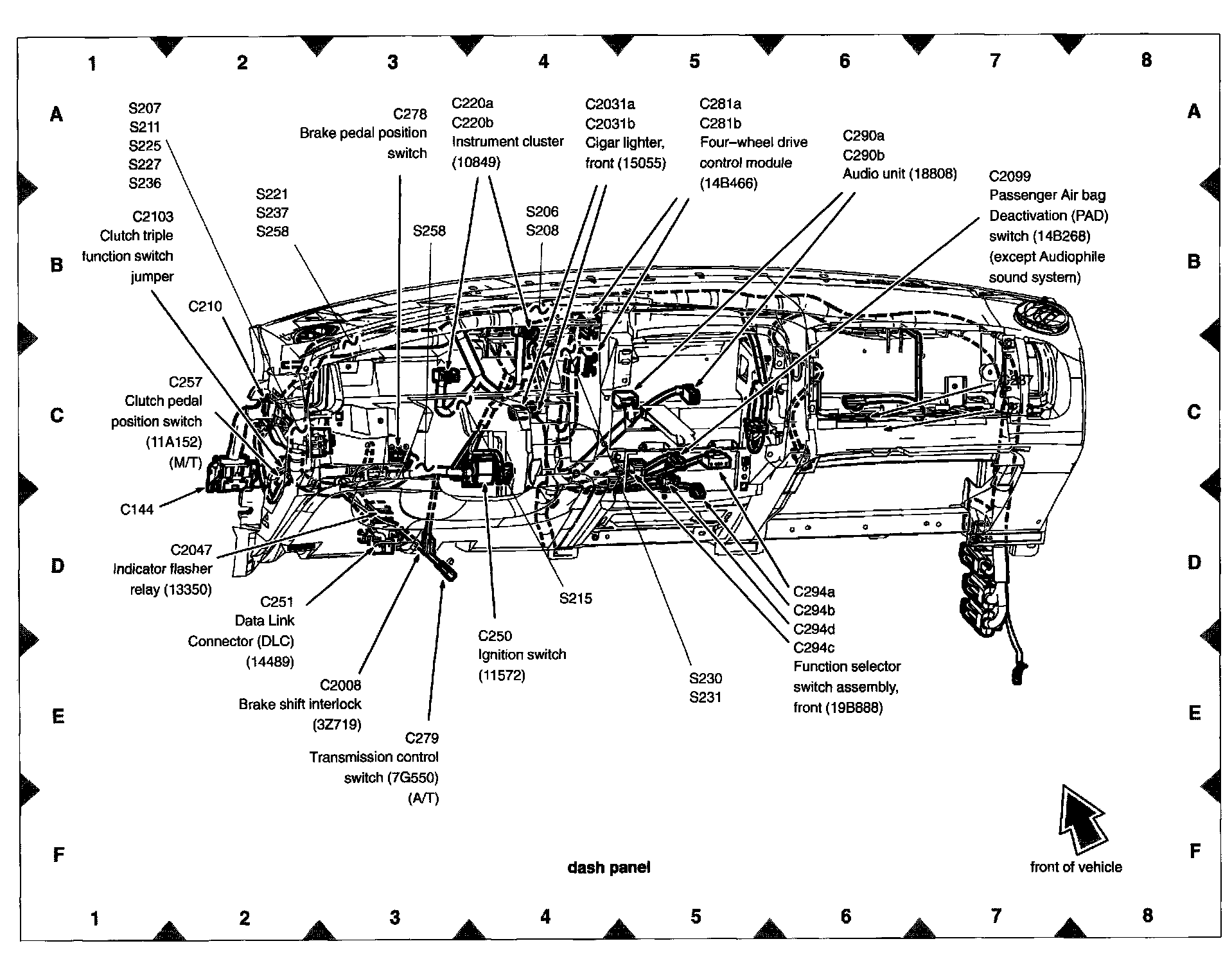

View 151-12 (Dash Panel):
