Four Wheel Drive Selector Switch: Service and Repair

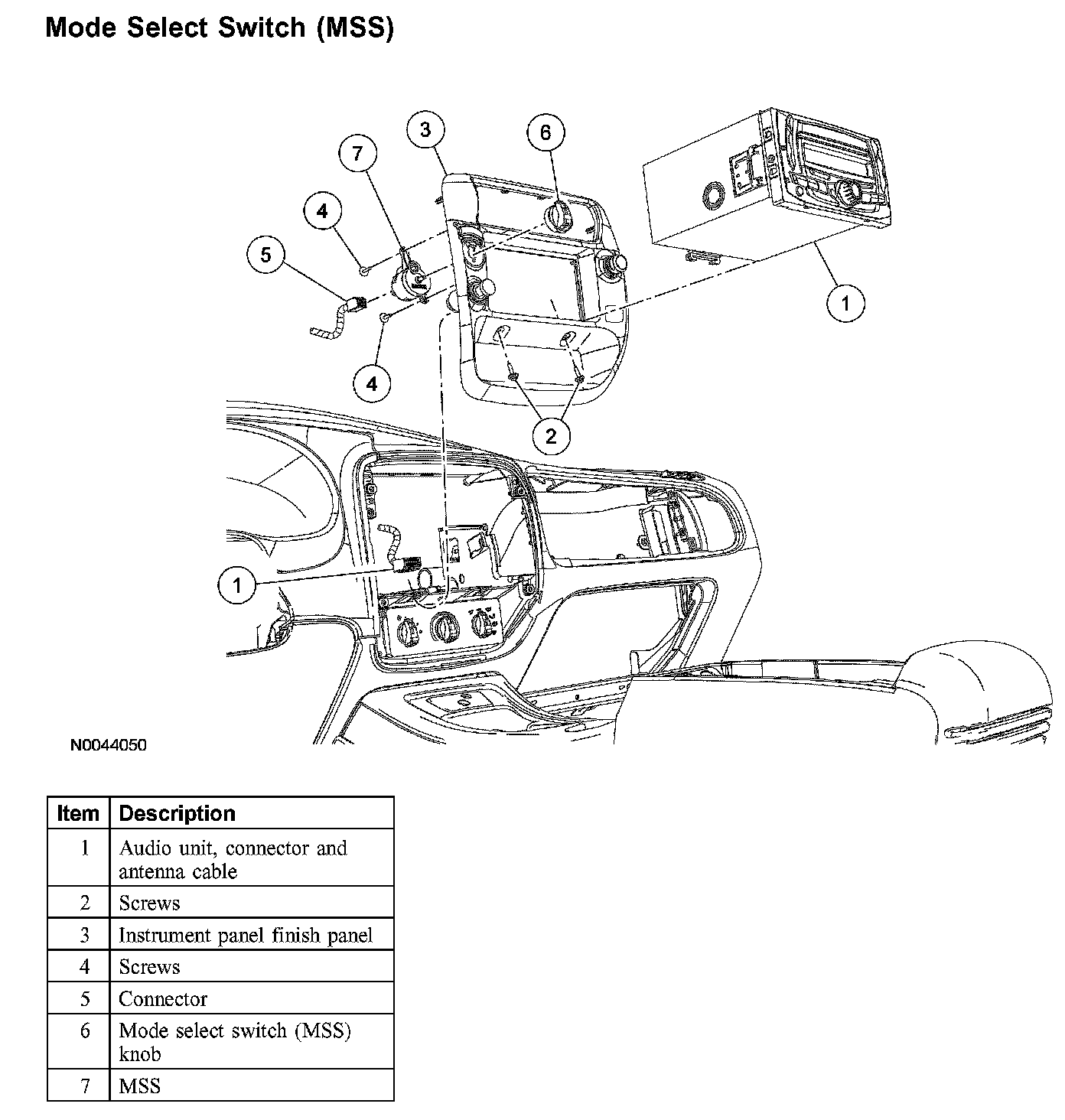

Mode Select Switch (MSS)





Removal and Installation

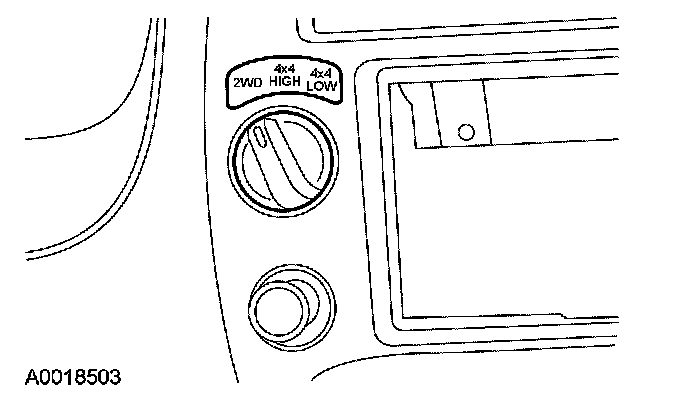

1. Remove the mode select switch (MSS) knob.
2. Remove the audio unit.

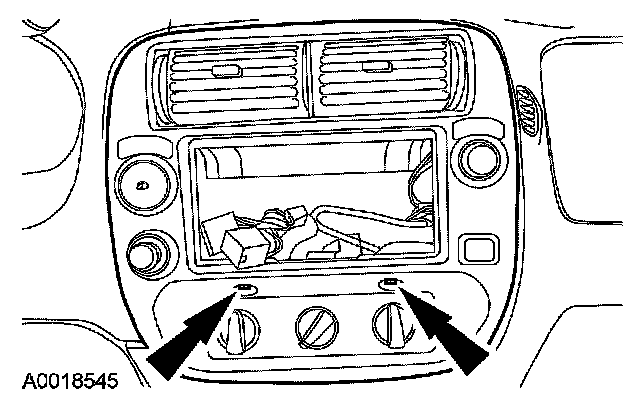

3. Remove the screws and pull the instrument panel center finish panel out of the instrument panel.

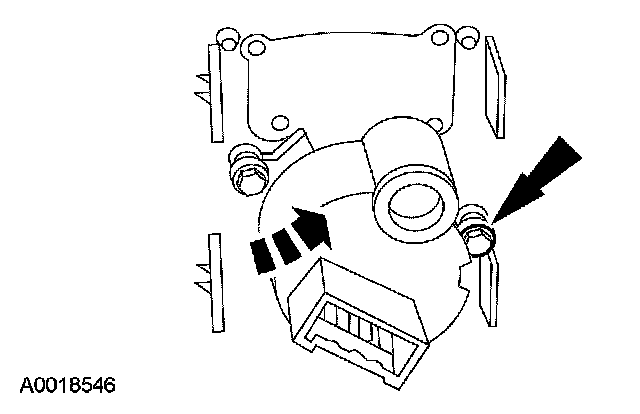

4. Disconnect the harness connector, remove the 2 screws and the MSS.
5. To install, reverse the removal procedure.
