Brake Caliper Support Bracket, Rear

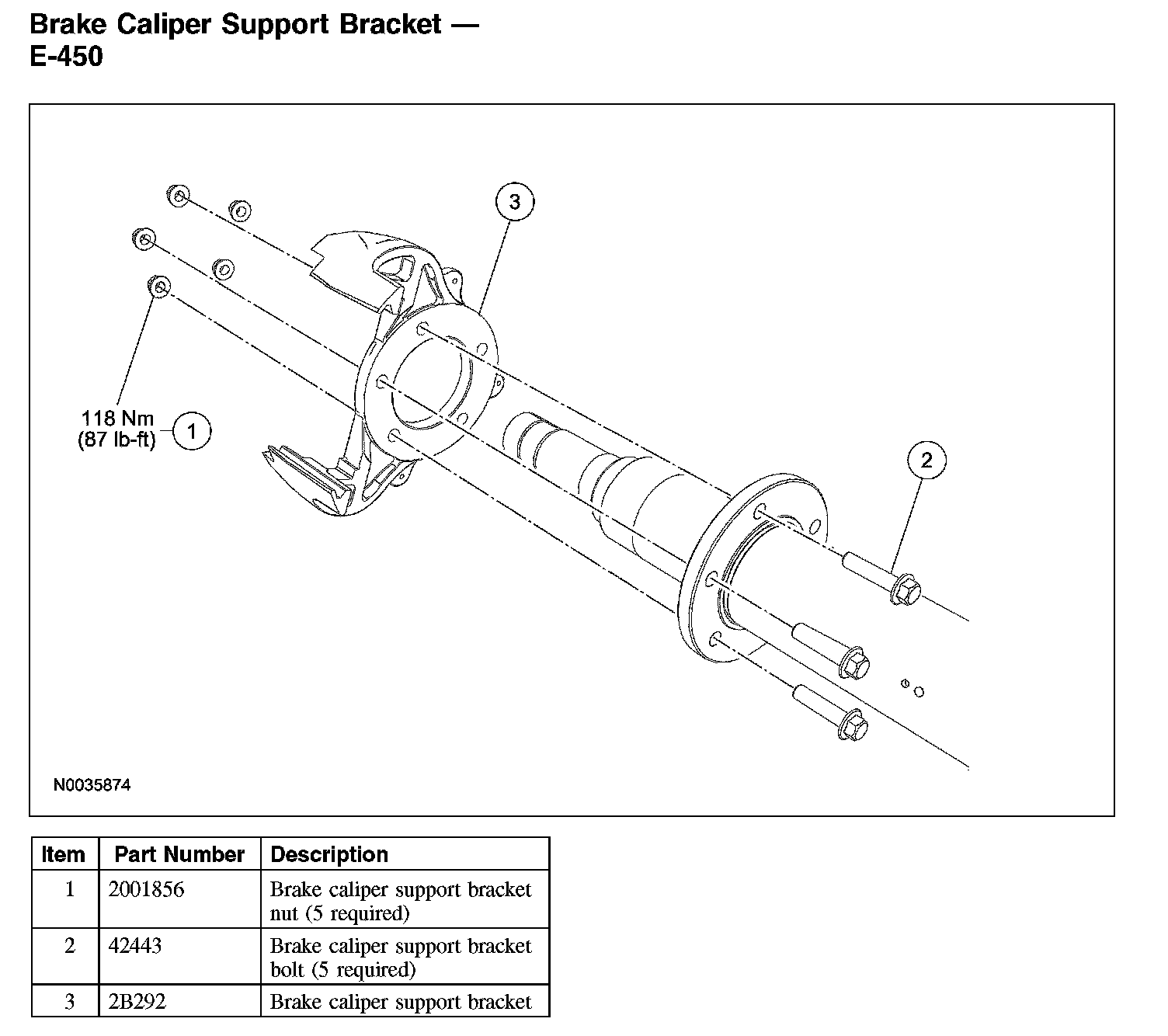

Brake Caliper Support Bracket - E-450

Brake Caliper Support Bracket - E-450:

Removal and Installation
1. Remove the brake disc.
2. Remove the brake disc shield bolts.
^ To install, tighten to 8 Nm (71 inch lbs).
3. Remove the 5 brake caliper support bracket nuts and remove the bracket.
^ To install, tighten to 118 Nm (87 ft. lbs).
4. To install, reverse the removal procedure.
